- Supermicro SYS-1028GQ-TXR 1U Barebone Dual Intel Xeon E5-2600 v4/v3 Processors

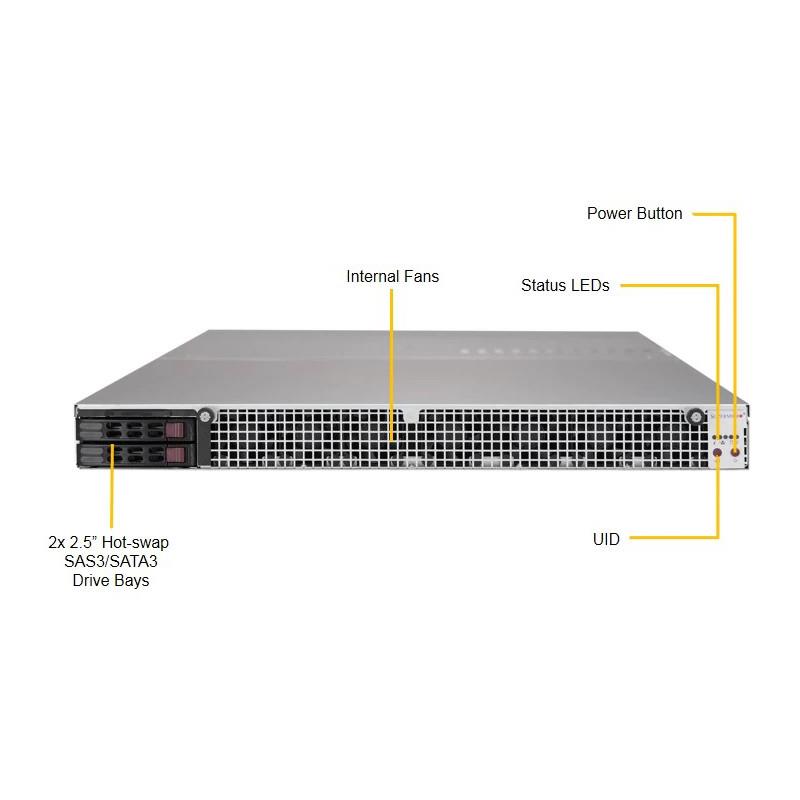

Supermicro SYS-1028GQ-TXR 1U Barebone Dual Intel Xeon E5-2600 v4/v3 Processors
• Up to 4 NVIDIA® Tesla® P100 SXM2
• Up to 80 GB/s GPU-to-GPU NVIDIA® NVLINK™
• Supports NVIDIA® GPUDirect™ RDMA
Barebone 1U Rackmount SuperServer, Support Dual Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v4/v3 Processors (Up to 22-Core/Up to 55MB Cache). Up to 1TB DDR4 ECC 3DS L/RDIMM, up to 2400MHz in 16x 288-pin slots - On-Board: SATA3 6Gbps (RAID 0, 1, 5, 10), IPMI 2.0, 2x Gigabit Ethernet, VGA - Includes: 2x 2.5in Hot-swap Drive Bays, 2x 2.5in internal fixed drive bays, 3x PCI-E 3.0 x16 slots, 1x PCI-E 3.0 x8 low-profile slot, 3x Riser Cards (1x RSC-G-68, 1x RSC-G-66), 6x Heatsinks (2x SNK-P0057P, 4x SNK-P4000V), Add-on Card (AOM-PIO-I2G), 2000W 1U Redundant Platinum Level Power Supply (2x PWS-2K05A-1R), MBD-X10DGQ Motherboard, CSE-118GQP-R2K05B 1U Chassis - (Black)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 2 GPUs installed).
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16 DIMM slots
3. 3 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 Low-profile slot
4. Intel i350 Dual port GbE LAN
5. 2 Hot-swap 2.5" drive bays, 2 internal 2.5" drive bays
6. 7x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control
7. 2000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-1028GQ-TXR 1U Barebone Dual Intel Xeon E5-2600 v4/v3 Processors
| Motherboard | ||
| Motherboard | Super X10DGQ | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 1TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | |
| LRDIMM: 32GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 Gigabit Ethernet ports | ||
| USB | 2 USB 3.0 ports (2 via headers) | |
| Video | 1 VGA Connector | |
| Serial Port | 1 Serial header | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| PCI 2.3 | ||
| UEFI | ||
| APM 1.2 | ||
| ACPI 1.0 / 2.0 / 3.0 | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-118GQP-R2K05B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 35.2" (894mm) | |
| 39.3" (997mm) with rails | ||
| Package | 24" (H) x 8" (W) x 46" (D) | |
| Weight | Net Weight: 45 lbs (15.9 kg) | |
| Gross Weight: 58 lbs (21.8 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 3 PCI-E 3.0 x16 slots | |
| 1 PCI-E 3.0 x8 low-profile slot | ||
| Drive Bays | ||
| Hot-swap | 2x 2.5" Hot-swap drive bays | |
| Fixed | 2x 2.5" internal drive bays | |
| System Cooling | ||
| Fans | 7x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz | |
| 200-220Vac / 10-9.5A / 50-60Hz | ||
| 220-230Vac / 10-9.8A / 50-60Hz | ||
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100-120Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166.7A / Min: 0A (230-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. | |
| 5 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Total of seven 4-pin PWM fans | ||
| 7 fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Control for 8 Fan Connectors | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| PSU I 2 C temperature sensing logic | ||
| LED | Power Fail / Overheat LED | |
| Suspend-state Indicator LED | ||
| UID LED | ||
| Other Features | SDDC Support | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 30°C (50°F to 86°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1028GQ-TXR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DGQ | 1 | Super X10DGQ Motherboard | |
| Motherboard / Chassis | CSE-118GQP-R2K05B | 1 | CSE-118GQP-R2K05B Chassis | |
| Add-on Card / Module | AOM-PIO-I2G | 1 | AOM-PIO-I2G | |
| Backplane | BPN-SAS3-118GQE | 1 | 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0484L | 4 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-SAST-0934-12 | 4 | Oculink-Oculink X8 Cable 50cm 34AWG,RoHS | |
| Cable 3 | CBL-PWEX-0954 | 2 | GPU,2x4F/RA/PCIe to 2x4F/RA/CPU, P4.2, 5.5CM,17AWG, 8A/pin, -25~85C, RoHS/REACH | |
| Cable 4 | CBL-PWEX-0953 | 1 | GPU,2x4F/RA/PCIe to 2x4F/CPU, P4.2, 42CM,17AWG, 8A/pin, -25~85C, RoHS/REACH | |
| Cable 5 | CBL-PWEX-0665 | 1 | PCIe 8 pin female(black) to CPU 8 pin female(white), M60/M40 GPU power cable, 30cm, 18AWG, 10A/pin, 0~80C, RoHS/REACH | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1810-QRG | 1 | SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH | |
| Riser Card | RSC-G-66 | 1 | 1U GPU Riser Card with 2 PCI-E x16 slot | |
| Riser Card | RSC-G-68 | 1 | RSC-G-68 | |
| Heatsink / Retention | SNK-P0057P | 2 | 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB | |
| Heatsink / Retention | SNK-P4004V | 4 | 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU | |
| Power Supply | PWS-2K05A-1R | 2 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| Fans | FAN-0163L4 | 7 | 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan | |
| Rail Set | MCP-290-11809-0N | 1 | Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| CAB | MCP-120-11812-0N | $ 20.50 | 0 | SC118GQP Pascal GPU Dummy & Air Shroud Mylar Module | ||
| AOC-S3008L-L8i (SAS3) | CBL-SAST-0699 | $ 29.00 | 1 | Mini SAS HD to 4 SATA 12G | ||
| AOC-S3108L-H8IR-16DD (SAS3) | CBL-SAST-0699 | $ 29.00 | 1 | Mini SAS HD to 4 SATA 12G | ||
| AOC-S3108L-H8IR (SAS3) | CBL-SAST-0699 | $ 29.00 | 1 | Mini SAS HD to 4 SATA 12G | ||
| Super Cap for LSI 3108 | BKT-BBU-BRACKET-05 | $ 82.50 | 1 | Mounting Bracket for LSI BBUs | ||
| Super Cap for LSI 3108 | BTR-TFM8G-LSICVM02 | $ 275.00 | 1 | LSI Super Cap | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
