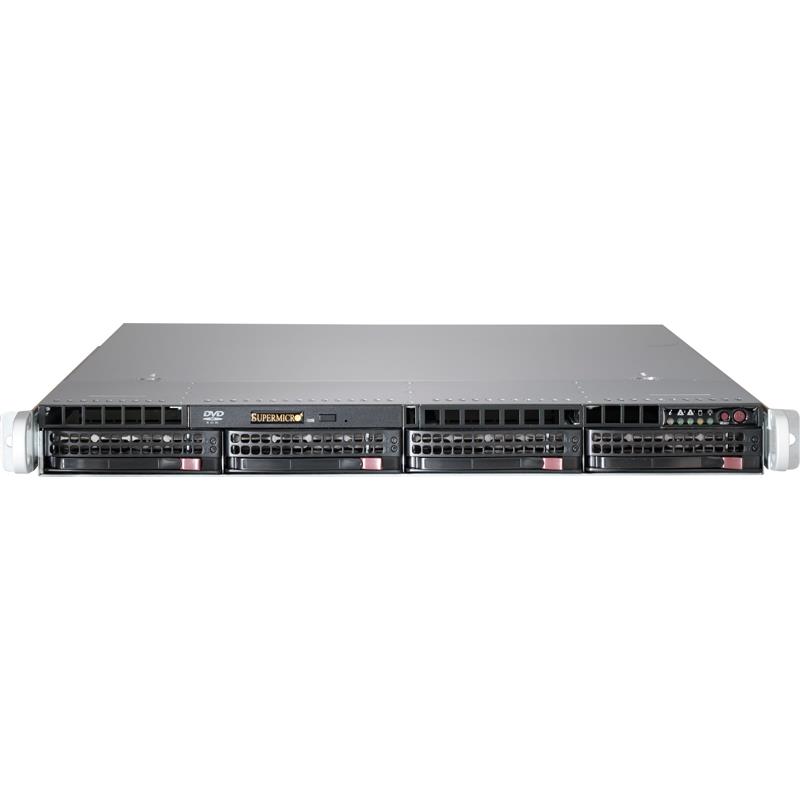

Supermicro SSG-6018R-MON2 1U Storage Barebone Single Processor

• 1 Internal 800GB NVMe SSD
• Dual port 10G SFP+ onboard
• 2x 2.5 80GB SSD Drives for OS
• Redundant Hot-swap 500W power supplies

Barebone 1U SuperStorage Server 6018R-TDTPR with Dual Intel Xeon processor E5-2630 v3, 64GB Ceph-Monitor Node, 2x 2.5in 80GB SSD Drives for OS, 1 Internal 800GB NVMe SSD, Dual port 10G SFP+ onboard, 1U w/ redundant Hot-swap 500W power supplies - (Black) - Cluster Role: Monitor Node This item is part of a cluster solution. Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact us for a quote


    6,047.00 6,047.00 6047.0 USD

    6,047.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • 1x PCI-E 3.0 x8 (FHHL) slot)
    • 4x 3.5 Hot-swap SATA drive bays
    • IPMI 2.0 + KVM with Dedicated LAN
    • I/O ports: 1x VGA, 1x COM, 4x USB 2.0
    • Intel 82599ES Dual-Port 10GbE LAN with SFP+
    • Up to 1TB ECC 3DS LRDIMM, up to DDR4- 2400MHz; 8x DIMM slots
    • 500W Redundant High-Efficiency Power Supplies Platinum Level Certified
    • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s

    Extra Specifications for Supermicro SSG-6018R-MON2 1U Storage Barebone Single Processor

    Main Specifications
    Built-in Devices Super X10DRD-LTP
    Device Type SuperServer
    Dimensions (WxDxH) Width 17.2" (437mm) x Height 1.7" (43mm) x Depth 25.6" (650mm)
    Enclosure Color Black
    Form Factor 1U Rackmount - CSE-815TQ-R500CB
    Weight 38 lbs (17.24 kg)
    Processor
    Cores / Cache Up to 22 Cores / Up to 55MB Cache
    QPI QPI up to 9.6 GT/s
    Processors
    Compatible processors Intel Xeon processor E5-2600 v4/v3 family (up to 145W TDP)
    Compatible Socket Dual Socket R3 (LGA 2011)
    On-Board Devices
    Chipset Intel C612 chipset
    Graphics ASPEED AST2400 BMC
    SATA SATA3 (6Gbps), RAID 0, 1, 5, 10
    Input / Output
    DOM 2x SuperDOM (Disk on Module) ports
    LAN 2x 10 Gigabit Ethernet SFP+ ports
      1x RJ45 Dedicated IPMI LAN port
    SATA 4x SATA3 (6Gbps) ports
      I-SATA 4 & I-SATA 5 support SATA DOM
    USB 7x USB 2.0 ports (4 rear, 2 headers, 1 Type A)
    VGA 1x VGA port
    System BIOS
    BIOS Features Plug and Play (PnP), APM 1.2, PCI 2.3, ACPI 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1
    BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
    System Memory
    DIMM Sizes RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
      LRDIMM: 64GB, 32GB
      3DS LRDIMM: 128GB
    Error Detection Corrects single-bit errors
    Memory Capacity 8x 288-pin DDR4 DIMM slots
      Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM
    Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    Memory Voltage 1.2 V
    On-Board Devices
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      ASPEED AST2400 BMC
    Network Controllers Intel 82599ES Dual port 10G SFP+
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10G SFP+
      1x Realtek RTL8211E PHY (dedicated IPMI)
    Input / Output
    Serial Port / Header 2x COM ports (1 rear, 1 header)
    Drive Bays
    Hot-swap 4x 3.5" Hot-swap SATA3 Drive Bays
    Peripheral Drives
    DVD-ROM 1x Slim DVD-ROM drive (optional)
    Front Panel
    Buttons Power On/Off button, System Reset button
    LEDs Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED
    SAS / SATA Backplane
    SAS / SATA Backplane SAS2/SATA3 Backplane
    System Cooling
    Fans 5x 4cm fans with optimal fan speed control
    Power Supply
    Certification 80PLUS Platinum Certified
    Power Supply 500W Redundant Power Supplies with PMBus
    Expansion / Connectivity
    Expansion Slots Total (Free) 1x PCI-E 3.0 x8 (FHHL) slot
    Operating Environment / Compliance
    Operating Temperature Operating Temperature: 5°C to 40°C (41°F to 104°F)
      Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Parts 1x MCP-120-00078-0N, 1x MCP-260-00087-0N
    Backplane 1x BPN-SAS-815TQ
    Cables 1x CBL-0180L-01, 1x CBL-CDAT-0661
    Fan(s) 5x FAN-0086L4
    Heatsink / Retention 2x SNK-P0047PS
    Motherboard / Chassis 1x MBD-X10DRD-LTP / 1x CSE-815TQ-R500CB
    Power Supply 2x PWS-504P-1R
    Riser Card 1x RSC-RR1U-E8
