- Supermicro CSE-213XAC-R1K05LP Server Chassis 2U Rackmount

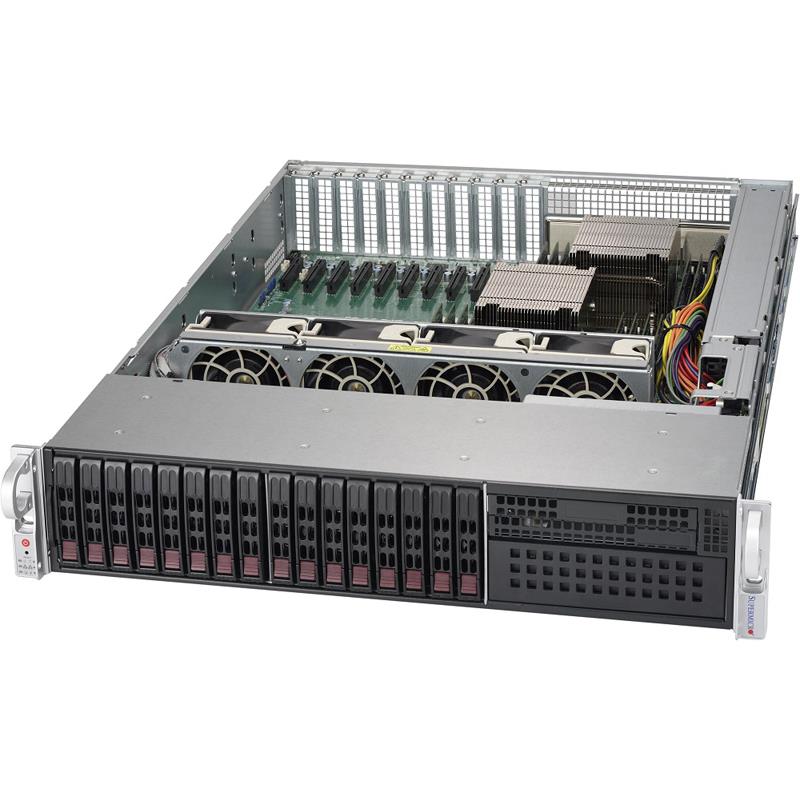

Supermicro CSE-213XAC-R1K05LP Server Chassis 2U Rackmount
Rackmount 2U w/ Redundant 1U 800/1000W Redundant Power Supply 80 Plus Titanium Level Certified, supports for motherboard 15.2in x 13.2in maximum size - Includes : 16 x 2.5in hot-swap SAS/SATA drive bays, 11 low-profile expansion slots, 16-port 2U SAS3 12Gbps direct-attached backplane (support up to 16x 2.5in SAS3/SATA3 HDD/SSD), 1 x standard 5.25in drive bay, Mounting Rails Kit - Optionals : 1 x slim DVD-ROM drive bay, 2 x USB 2.0 ports, 1 x COM port tray - Designed for motherboards X9DRX+-F and X10DRX - SC213XAC-R1K05LP (Black)
1. 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
2. 16 x 2.5" hot-swap SAS3/SATA drive bay
3. 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
4. 1U 800/1000W Redundant Power Supply 38mm Width
5. 11 low-profile expansion slot(s)
6. 4 x 8cm high-performance PWM fan(s)
Extra Specifications for Supermicro CSE-213XAC-R1K05LP Server Chassis 2U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| System Information LED | ||
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Supply | 1U 800/1000W Redundant Power Supply 38mm Width | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 800W with Input 100 - 127Vac | |
| 1000W with Input 200 - 240Vac | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 360 x 38 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 66.7A (100Vac - 127Vac) | |
| Max: 83A (200Vac - 240Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | +5V Max: 45A | |
| +3.3V Max: 24A | ||
| -12V Max: 0.6A | ||
| PDB-PT213X-3824 | ||
| O/P: 12V/100A | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.6" (650 mm) | |
| Gross Weight | 58 lbs (26.31 kg) | |
| Packaging (W x H x L) | 26.4" (671 mm) x 11.3" (287 mm) x 39.8" (1011 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 11 low-profile expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 16 x 2.5" hot-swap SAS3/SATA drive bay | |
| Backplane | ||
| Backplane | 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Optional 2 x USB 2.0 ports | ||
| Optional 1 x COM port tray | ||
| 1 x standard 5.25" drive bay | ||
| Systems Cooling | ||
| Fans | 4 x 8cm high-performance PWM fan(s) | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Short rail set, quick release, 19.6"~26.9" Extendable Length | ||
| Front USB | MCP-220-00007-01 | $ 31.00 | 0 | Black USB/COM port tray for SC825, 836 | ||
| Front Bezel | MCP-210-82601-0B | $ 31.00 | 0 | Black Front Bezel for 826 chassis | ||
| Tray(s) | MCP-290-00036-0B | $ 19.00 | 0 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 | ||
| HDD Kit | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| DVD-ROM / DVD-RW | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | 0 | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
| Cable | CBL-SAST-0508-01 | $ 31.50 | 0 | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF | ||
| Cable | CBL-SAST-0568 | $ 29.00 | 0 | Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF | ||
| Cable | CBL-SAST-0591 | $ 27.50 | 0 | cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
