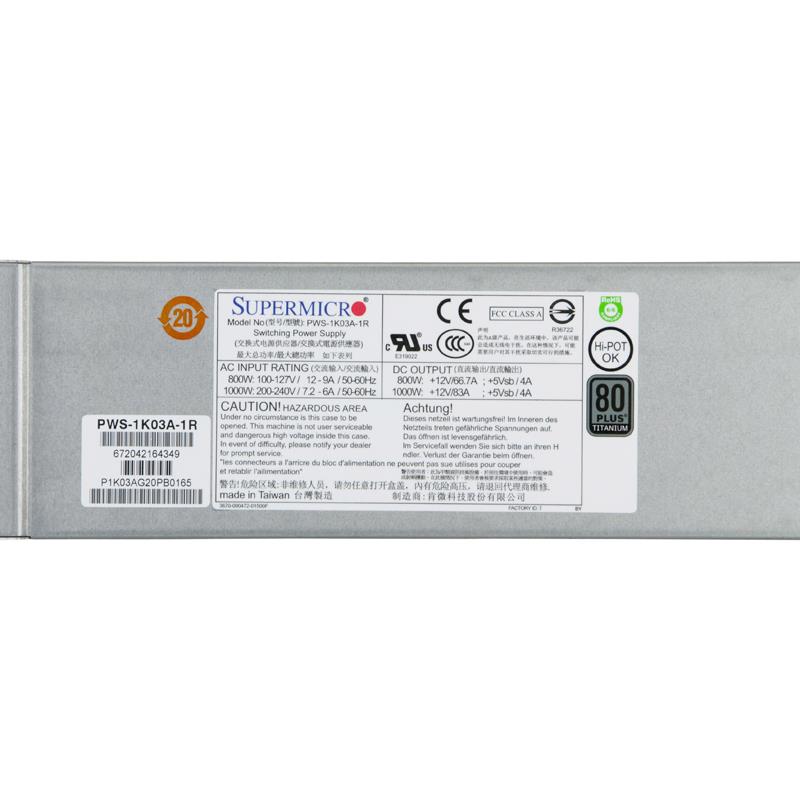

Supermicro PWS-1K03A-1R Power Supply 1U 1000W 80 Plus Titanium Certified, Redundant w/ PMBus

• 80 Plus Titanium and Supermicro Certified
• PMBus 1.2 Support for Remote Management
• Supplying 1000W output power at 91% efficiency
• LED keep you informed on normal/abnormal condition

Power Supply 1U 1000W 80 Plus Titanium Certified, Redundant w/ PMBus - 100V/240V Input, 50/60Hz


    269.00269.00269.0USD

    269.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • The Supermicro PWS-1K03A-1R is an 80 Plus Titanium power supply capable of supplying 1000W output power at 96% efficiency.

    • Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.

    • Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.

    • This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current, and short-circuiting via protective circuitry embedded into the unit.

    • Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.

    • This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.

    • All materials contained comply with RoHS requirements and are certified by Supermicro.

    Extra Specifications for Supermicro PWS-1K03A-1R Power Supply 1U 1000W 80 Plus Titanium Certified, Redundant w/ PMBus

    Main Specifications
    Device Type Power Supply
    Dimension(s) (WxDxH) 3 in x 13.2 in x 1.6 in
    Height (Rack Unit) 1U
    Power Device
    Certification 80 Plus Titanium Certified
    Efficiency 96.37% at 50% Load, 94.91% at 100% Load, 90.42% at 10% Load, 94.73% at 20% Load
    Frequency / Required 50 - 60 Hz
    Input Voltage AC 100-127/200-240 V
    Output Current +5VSB - 4 A / 0 A, +12V (for 200-240Vac) - 83 A / 0 A, +12V (for 100-127Vac) - 66.7 A / 0 A
    Power Provided 1000W
    Power Redundancy Redundant w/ PMBus
    Miscellaneous
    Compliant Standards UL, BSMI, cUL, CB, CCC
    Features Power Factor (PF) 0.99, PMBus compliant
