  2. Supermicro PWS-2K05A-1R Power Supply 1U 2000W, 80 Plus Titanium Certified, Redundant with PMBus

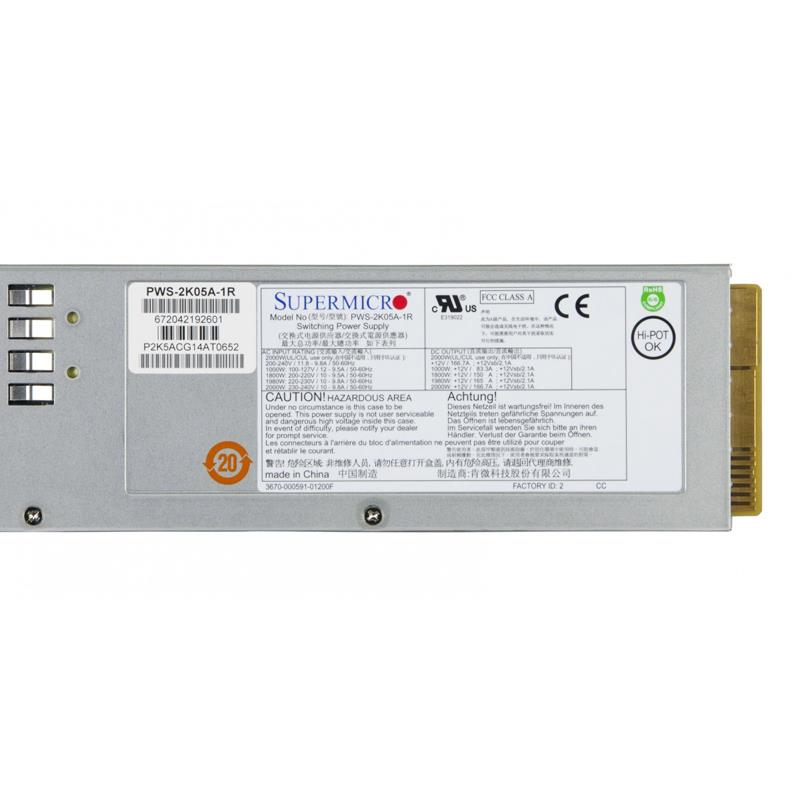

Supermicro PWS-2K05A-1R Power Supply 1U 2000W, 80 Plus Titanium Certified, Redundant with PMBus
Power Supply 1U 2000W, 80 Plus Titanium Certified, Redundant with PMBus
Power Supply 1U 2000W, 80 Plus Titanium Certified, Redundant with PMBus

Supermicro PWS-2K05A-1R Power Supply 1U 2000W, 80 Plus Titanium Certified, Redundant with PMBus

• Designed for enterprise level applications
• 2000W 1U high output; Supermicro Certified
• PMBus 1.2 Support for Remote Management
• 80 Plus Titanium Level; Redundant power supply

Power Supply 1U 2000W, 80 Plus Titanium Certified, Redundant with PMBus - 100V-240V, 50Hz/60Hz

$ 529.00$ 529.00529.0USD

$ 529.00

Option not available

InStock
2 lb

    This combination does not exist.

    Add to Cart

    • The Supermicro PWS-2K05A-1R provides up to 2000W high output for your Supermicro 1U server system.

    • It features PMBus 1.2 support for remote management and flexible redundancy control.

    Extra Specifications for Supermicro PWS-2K05A-1R Power Supply 1U 2000W, 80 Plus Titanium Certified, Redundant with PMBus

    Main Specifications
    Device TypePower Supply with PMBus
    Dimension(s) (WxDxH)73.5 x 40 x 265 mm
    Height (Rack Units)1U
    Output Type25 Pairs Gold Finger Connector
    Power Supply
    +12VMax: 83.3A / Min: 0A (100-120Vac)
    Max: 150A / Min: 0A (200-220Vac)
    Max: 165A / Min: 0A (220-230Vac)
    Max: 166.7A / Min: 0A (230-240Vac)
    Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
    Certification80 Plus Titanium Certified
    Power Device
    +12VsbMax: 2.1A / Min: 0A
    Input Voltage200-220Vac / 10-9.5A / 50-60Hz
    230-240Vac / 10-9.8A / 50-60Hz
    100-120Vac / 12-9.5A / 50-60Hz
    220-230Vac / 10-9.8A / 50-60Hz
    200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
    Power Provided1000W/1800W/1980W/2000W
    Miscellaneous
    FeaturesRedundant
    Compliant StandardsUL/cUL/CB/BSMI/CE/CCC

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
