| Motherboard |
| Motherboard | Super X10DGO |
| Processor/Cache |
| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory |
| Memory Capacity | 24x 288-pin DDR4 DIMM slots |
| Up to 3TB † ECC 3DS LRDIMM, 2TB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Dual Port 1GbE with Intel i350 Ethernet Controller |
| Graphics | ASPEED AST2400 BMC |
| Input / Output |
| SATA | 10 SATA3 (6Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 1GbE LAN ports |
| USB | 2 USB 3.0 ports |
| Video | 1 VGA Connector |
| Serial Port | 1 Serial header |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| PCI 2.3 |
| UEFI |
| APM 1.2 |
| ACPI 1.0 / 2.0 / 3.0 |
| Chassis |
| Form Factor | 4U Rackmountable |
| Rackmount Kit (MCP-290-31401-0N) |
| Model | CSE-R422BG-2 |
| Dimensions |
| Height | 7.0" (178mm) |
| Width | 17.6" (447mm) |
| Depth | 31.7" (805mm) |
| Weight | Net Weight: 80 lbs (36.2 kg) |
| Gross Weight: 135 lbs (61.2 kg) |
| Available Colors | Black |
| Drive Bays |
| Hot-swap | 16 Hot-swap 2.5" SATA/SAS drive bays |
| Expansion Slots |
| PCI-Express | 2 PCI-E 3.0 x8 slots |
| 4 PCI-E 3.0 x16 (low-profile) slots |
| M.2 | Form Factor: 2260, 2280, 22110 |
| M.2 Interface: PCI-E 3.0 x4 |
| System Cooling |
| Fans | 8x 92mm Cooling Fans |
| Shrouds | 1 Air Shroud (MCP-310-41808-0B) |
| Power Supply |
| Power Supply | 2200W Redundant Titanium Level Power Supplies with PMBus |
| Total Output Power | 1200W/1800W/1980W/2090W/2200W (UL/cUL only) |
| Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm |
| Input | 1200W: 100-127 Vac / 14-11 A / 50-60 Hz |
| 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz |
| 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz |
| 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz |
| 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) |
| 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) |
| 2090W: 230-240 Vdc / 10-9.8 A (CCC only) |
| +12V | Max: 100A / Min: 0A (1200W) |
| Max: 150A / Min: 0A (1800W) |
| Max: 165A / Min: 0A (1980W) |
| Max: 174.17A / Min: 0A (2090W) |
| Max: 183.3A / Min: 0A (2200W) |
| 12Vsb | Max: 2A / Min: 0A |
| Output Type | Gold Finger (connector on M/P) |
| Certification | Titanium Level |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. |
| 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | 4-pin fan headers with tachometer status monitoring |
| Low noise fan speed control mode |
| Temperature | Monitoring for CPU and system environment |
| Thermal Control for 8 fan connectors |
| Other Features | Chassis intrusion detection |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

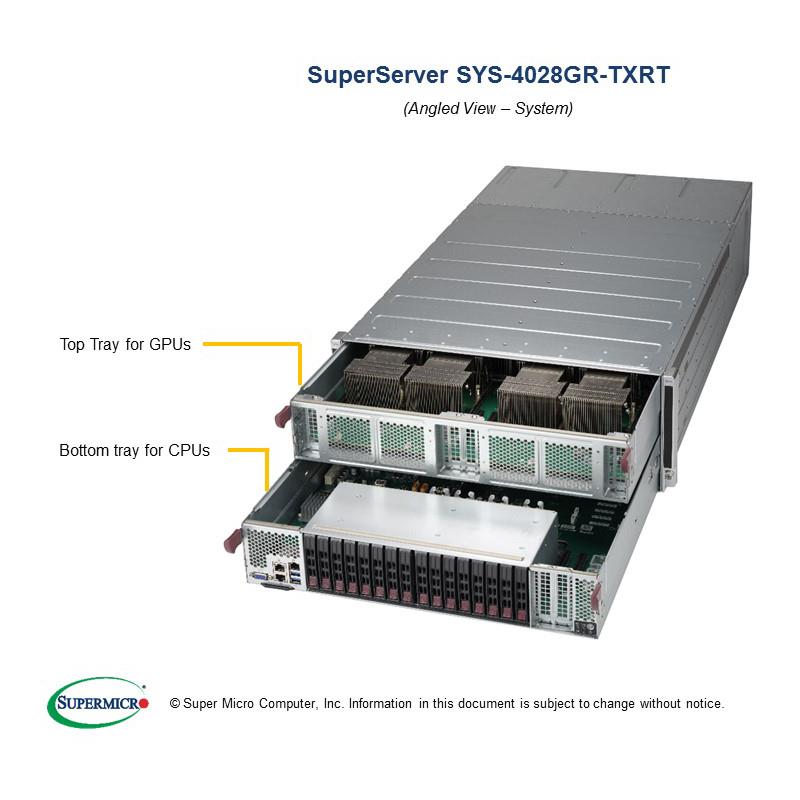

| Product SKUs | SuperServer 4028GR-TXR (Black) |
