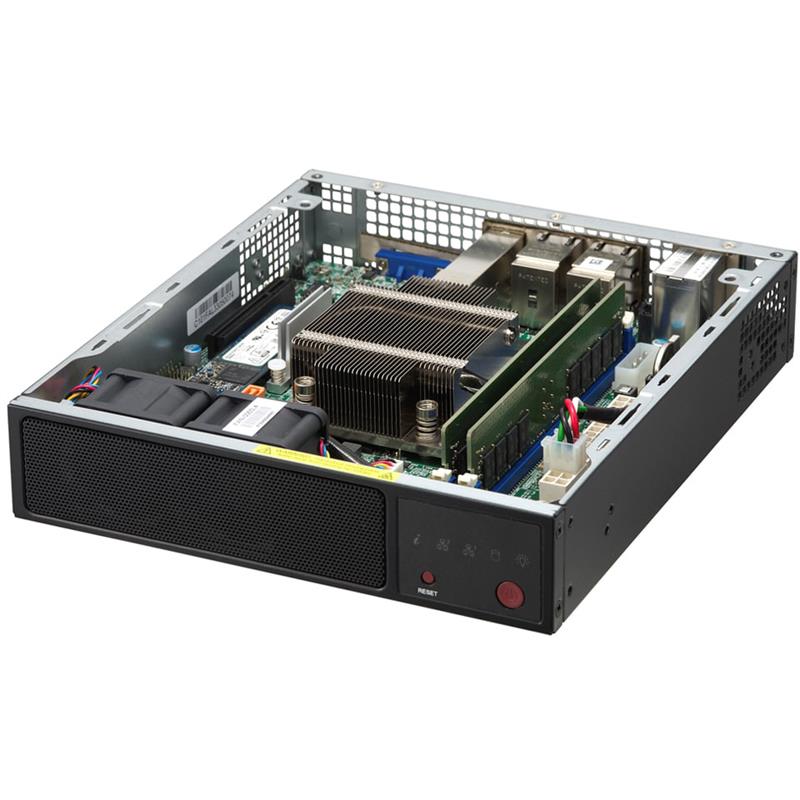

- Supermicro SYS-E200-12A-4C IoT Mini-ITX Box Based Embedded Intel Atom C5315 Processor
Supermicro SYS-E200-12A-4C IoT Mini-ITX Box Based Embedded Intel Atom C5315 Processor
• Virtualization Server
• Virtual-CPE White Box
• Entry-level Network Appliance
Barebone Mini-ITX IoT SuperServer, Embedded Intel Atom C5315 Processor, 2.40GHz 4-Core/4 thread/9MB Cache. Up to 128GB in 2 DIMM slots, RDIMM, Chipset: Intel SoC, On-Board: 1x M-Key 2280 (PCIe 3.0 x4), 1x B-Key 3052 (PCIe 3.0 & SATA3 & USB3.0), Network Connectivity: 1 RJ45 Dedicated IPMI LAN port, 4 RJ45 1Gigabit Ethernet LAN ports, 1x 150W 12V Lockable AC/DC Power Adapter - (SYS-E200-12A-4C + A3SPI-4C-HLN4F)
1. Optional Wall / Rack Mount Bracket, Dual System Tray
2. Intel® Atom® Parker Ridge processor C5315, TDP 38W
3. Up to 128GB ECC RDIMM DDR4-2400MHz, in 2 DIMM slots
4. 1x M.2 B-Key 3052, 1x M.2 M-Key 2280
5. 1x dedicated LAN for IPMI, 4x GbE RJ45 LAN ports, 2x 10GbE SFP+ LAN ports
6. Lockable 12V DC 150W Power Adapter
7. Intel® Quick Assist Technology
8. VGA via BMC, 2 USB 3.0 ports
Extra Specifications for Supermicro SYS-E200-12A-4C IoT Mini-ITX Box Based Embedded Intel Atom C5315 Processor
| System Memory | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| Memory | Memory Capacity: 2 DIMM slots | |
| Up to 128GB: ECC RDIMM, DDR4-2400MHz | ||
| Memory Type: 2400MHz ECC DDR4 RDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® SoC | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Connectivity | 4x 1GbE BaseT or 2x 10GbE SFP+ with Intel® C5000 SoC | |
| Input / Output | ||
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| 2 SFP+ 10GbE | ||
| USB | 2 USB 3.0 port(s) (2 USB) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB UEFI | |
| BIOS Features | SMBIOS 3.0 or later | |
| UEFI 2.7 | ||
| ACPI 6.0 or later | ||
| Management | ||
| Software | Watchdog | |
| IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | ||
| SuperDoctor® 5 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| +12V DC Power Input | ||
| CPU thermal trip support for processor protection | ||
| Front Panel | ||
| Buttons | Power On/Off | |
| Reset | ||
| LEDs | HDD activity | |
| Power status | ||
| System information | ||
| NIC activity | ||
| Product SKUs | ||
| Product SKUs | SYS-E200-12A-4C | |
| Motherboard | ||
| Motherboard | Super A3SPI-4C-LN6PF | |
| Processor | ||
| CPU | Single FCBGA2106 | |
| Intel Atom® Processor C5315 | ||
| Support CPU TDP 38W | ||
| 4-Core High Density Parker Ridge SoC processor for edge network computing | ||
| Cores | Up to 4C/4T; Up to 9MB Cache | |
| Chassis | ||
| Form Factor | Box PC | |
| Model | CSE-101F | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 7.6" (193mm) | |
| Depth | 8.9" (226mm) | |
| Package | 10.87" (H) x 15" (W) x 5.59" (D) | |
| Weight | Net Weight: 2.76 lbs (1.25 kg) | |
| Gross Weight: 6.26 lbs (2.84 kg) | ||
| Available Color | Black | |
| Drive Bays / Storage | ||
| Drive Bays | N/A | |
| M.2 | 1x M-Key 2280 (PCIe 3.0 x4) | |
| 1x B-Key 3052 (PCIe 3.0 & SATA3 & USB3.0) | ||
| System Cooling | ||
| Fans | 2x 4-PIN PWM 40x40x28mm Fan(s) | |
| Power Supply | ||
| AC Input | 150W: 100-240Vac / 12.5A Max / 47-63Hz | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A3SPI-4C-LN6PF | 1 | Super A3SPI-4C-LN6PF Motherboard | |
| Motherboard / Chassis | CSE-101F | 1 | Mini-ITX Chassis | |
| Fan | FAN-0065L4 | 1 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| Power Supply | MCP-250-10128-0N | 1 | 150W Lockable Power Adapter with US power cord | |
| Parts | MCP-260-00175-0B | 1 | 1U E300/E200 I/O Shield for A3SPI with EMI Gasket |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Dual System Tray Bracket | MCP-290-10119-0B | 1 | Dual System Tray Bracket | |||
| Mounting Brackets | MCP-290-10111-0B | $ 28.00 | 1 | Wall-Mount Bracket Kit | ||
| Rack Mounting Brackets | MCP-290-10110-0B | $ 79.00 | 1 | Rack Bracket |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
