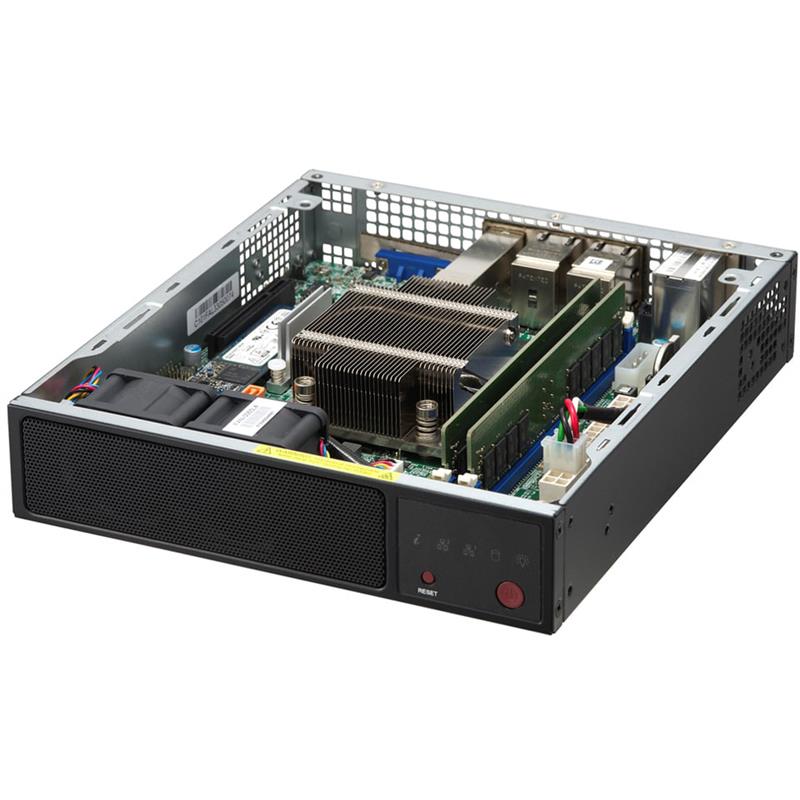

Supermicro SYS-E200-12A-8C IoT Barebone Embedded Intel Atom C5325 Processor - Includes: 64GB of Memory, and 1x 2TB M.2 NVMe SSD

Supermicro SYS-E200-12A-8C IoT Barebone Embedded Intel Atom C5325 Processor - Includes: 64GB of Memory, and 1x 2TB M.2 NVMe SSD

• Virtualization Server
• Virtual-CPE White Box
• Entry-level Network Appliance

Barebone Mini-ITX IoT SuperServer, Embedded Intel Atom C5325 Processor, 2.40GHz 8-Core/8 thread. Total Memory Installed: 64GB DDR4-3200 (Max 2 DIMM up to 128GB), Intel SoC, Includes: 1x 2TB M.2 NVMe SATA Solid-state Drive (SSD),. On-Board : 1x M-Key 2280 (PCIe 3.0 x4), 1x B-Key 3052 (PCIe 3.0 & SATA3 & USB3.0), Network Connectivity: 1 RJ45 Dedicated IPMI LAN port, 2 SFP+ 10GbE, 4 RJ45 Gigabit Ethernet LAN ports, 150W Lockable Power Adapter With US Power Cord - (SYS-E200-12A-8C + A3SPI-8C-LN6PF)

1. Optional Wall / Rack Mount Bracket, Dual System Tray
2. Intel® Atom® Parker Ridge processor C5325, TDP 41W
3. Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
4. 1x M.2 B-Key 3052, 1x M.2 M-Key 2280
5. 1x dedicated LAN for IPMI, 4x GbE RJ45 LAN ports, 2x 10GbE SFP+ LAN ports
6. Lockable 12V DC 150W Power Adapter
7. Intel® Quick Assist Technology
8. VGA via BMC, 2 USB 3.0 ports

Extra Specifications for Supermicro SYS-E200-12A-8C IoT Barebone Embedded Intel Atom C5325 Processor - Includes: 64GB of Memory, and 1x 2TB M.2 NVMe SSD

System Memory
Memory Voltage	1.2 V
Error Detection	ECC
Memory	Memory Type: 2933MHz ECC DDR4 RDIMM
	Memory Capacity: 2 DIMM slots
	Up to 128GB: ECC RDIMM, DDR4-2933MHz
On-Board Devices
Chipset	Intel® SoC
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity	4x 1GbE BaseT or 2x 10GbE SFP+ with Intel® C5000 SoC
Input / Output
LAN	4 RJ45 Gigabit Ethernet LAN ports
	1 RJ45 Dedicated IPMI LAN port
	2 SFP+ 10GbE
USB	2 USB 3.0 port(s) (2 USB)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB UEFI
BIOS Features	SMBIOS 3.0 or later
	UEFI 2.7
	ACPI 6.0 or later
Management
Software	Watchdog
	IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
	SuperDoctor® 5
Power Configurations	Power-on mode for AC power recovery
	+12V DC Power Input
	CPU thermal trip support for processor protection
Front Panel
Buttons	Power On/Off
	Reset
LEDs	HDD activity
	Power status
	System information
	NIC activity
System Cooling
Fans	2x 4-PIN PWM 40x40x28mm Fan(s)
Product SKUs
Product SKUs	SYS-E200-12A-8C
Motherboard
Motherboard	Super A3SPI-8C-LN6PF
Processor
CPU	Single FCBGA2106
	Intel Atom® Processor C5325
	Support CPU TDP 41W
	8-Core High Density Parker Ridge SoC processor for edge network computing
Cores	Up to 8C/8T; Up to 9MB Cache
Chassis
Form Factor	Box PC
Model	CSE-101F
Dimensions and Weight
Height	1.7" (43mm)
Width	7.6" (193mm)
Depth	8.9" (226mm)
Package	10.87" (H) x 15" (W) x 5.59" (D)
Weight	Net Weight: 2.76 lbs (1.25 kg)
	Gross Weight: 6.26 lbs (2.84 kg)
Available Color	Black
Drive Bays / Storage
Drive Bays	N/A
M.2	1x M-Key 2280 (PCIe 3.0 x4)
	1x B-Key 3052 (PCIe 3.0 & SATA3 & USB3.0)
Power Supply
AC Input	150W: 100-240Vac / 12.5A Max / 47-63Hz
Operating Environment
Environmental Spec.	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

Name	Part Number	Qty.	Description
	Motherboard / Chassis	MBD-A3SPI-8C-LN6PF	1	Super A3SPI-8C-LN6PF Motherboard
	Motherboard / Chassis	CSE-101F	1	Mini-ITX Chassis
	Fan	FAN-0065L4	1	4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
	Power Supply	MCP-250-10128-0N	1	150W Lockable Power Adapter with US power cord
Parts	MCP-260-00175-0B	1	1U E300/E200 I/O Shield for A3SPI with EMI Gasket

Name	Part Number	Price	Add to Cart	Qty.	Description
Dual System Tray Bracket	MCP-290-10119-0B			1	Dual System Tray Bracket
	Mounting Brackets	MCP-290-10111-0B	$ 28.00		1	Wall-Mount Bracket Kit
	Rack Mounting Brackets	MCP-290-10110-0B	$ 79.00		1	Rack Bracket

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
