Supermicro SYS-2028R-TXR 2U Barebone Dual Intel Processor
• Surveillance DVR
• Networking Telephony
• Industrial Server Solutions
• Head-node Controller
• Flash Array Server

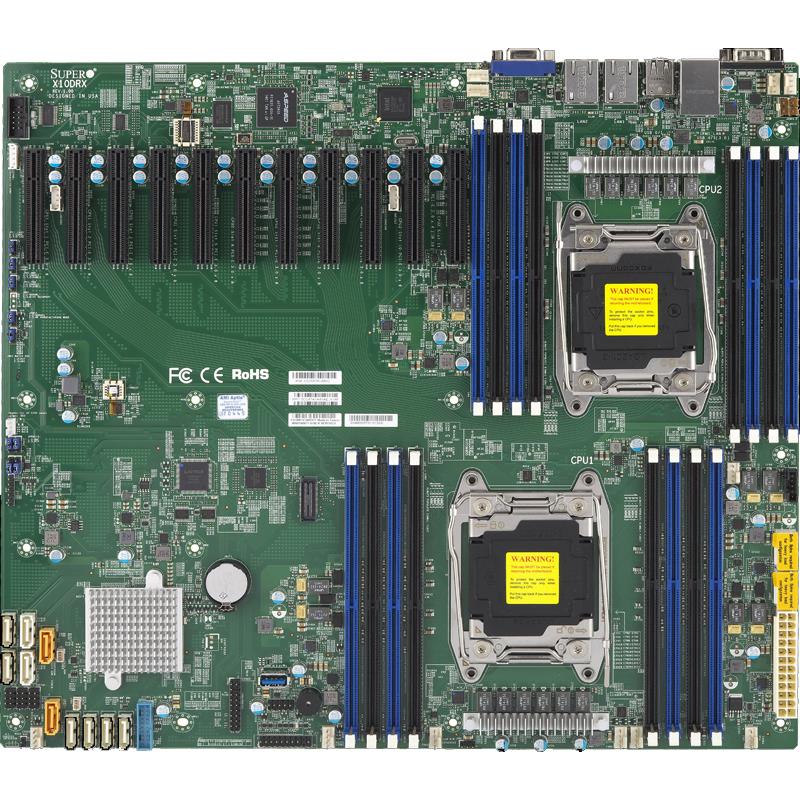

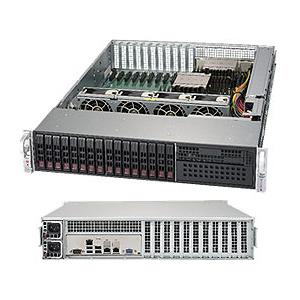

Server Barebone 2U Dual Socket R3 (LGA 2011) for Dual Intel Xeon processor E5-2600 v4/v3 family - Supports up to 2TB DDR4 ECC 3DS LRDIMM, up to 2400MHz in 16x 288-pin slots - On-Board : Intel C612 chipset, SATA3 6Gbp (RAID 0, 1, 5, 10), IPMI 2.0, Intel i350 2x Gigabit Ethernet, VGA - Includes : 16x Hot-swap 2.5in drive bays, 8x SATA3 ports by default, Optional drive support for 16 SAS3 (optional storage card is required to support more than 10 drives), 1x 5.25in peripheral drive bay, 1x slim DVD-ROM drive (optional), 10 PCI-E 3.0 x8 slots, 1 PCI-E 2.0 x4 (in x8) slot, 1x SAS3 / SATA backplane (BPN-SAS3-213A), 2x Heatsink (2x SNK-P0048PS), 1000W Redundant 80 Plus Titanium Power Supply (2x PWS-1K05A-1R), MBD-X10DRX Motherboard and CSE-213XAC-R1K05LP 2U Chasssis (Black)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots

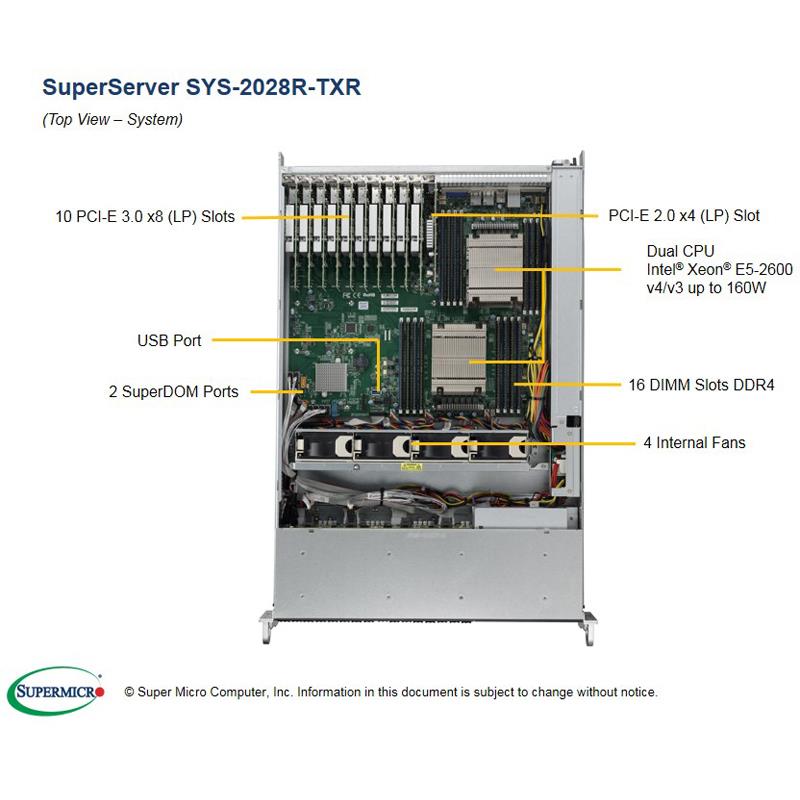

3. 10 PCI-E 3.0 x8 Low-profile slots, 1 PCI-E 2.0 x4 (in x8) Low-profile slot
4. Intel® i350 Dual port Gigabit Ethernet

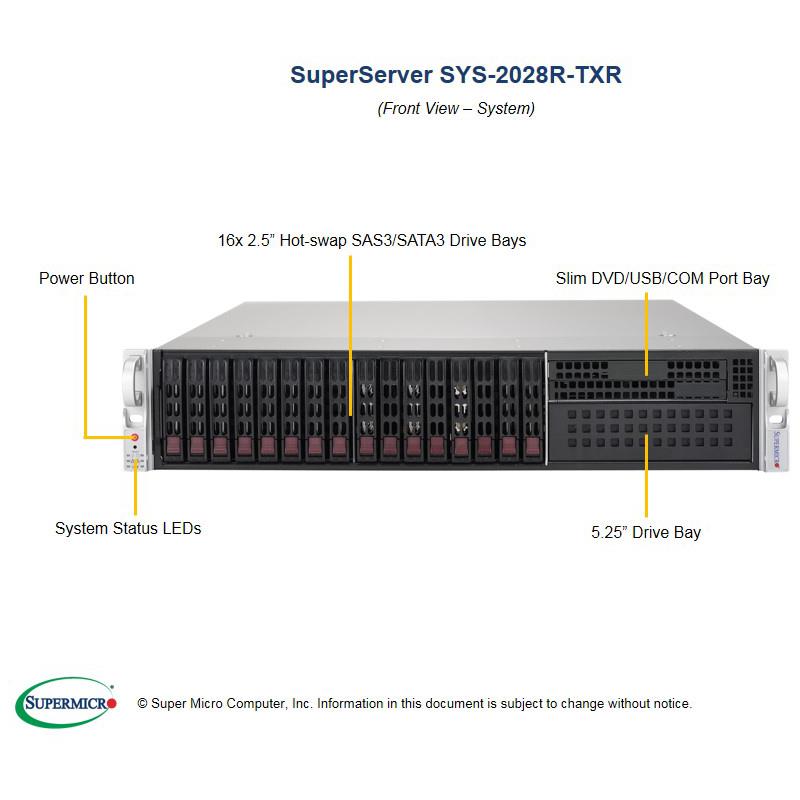

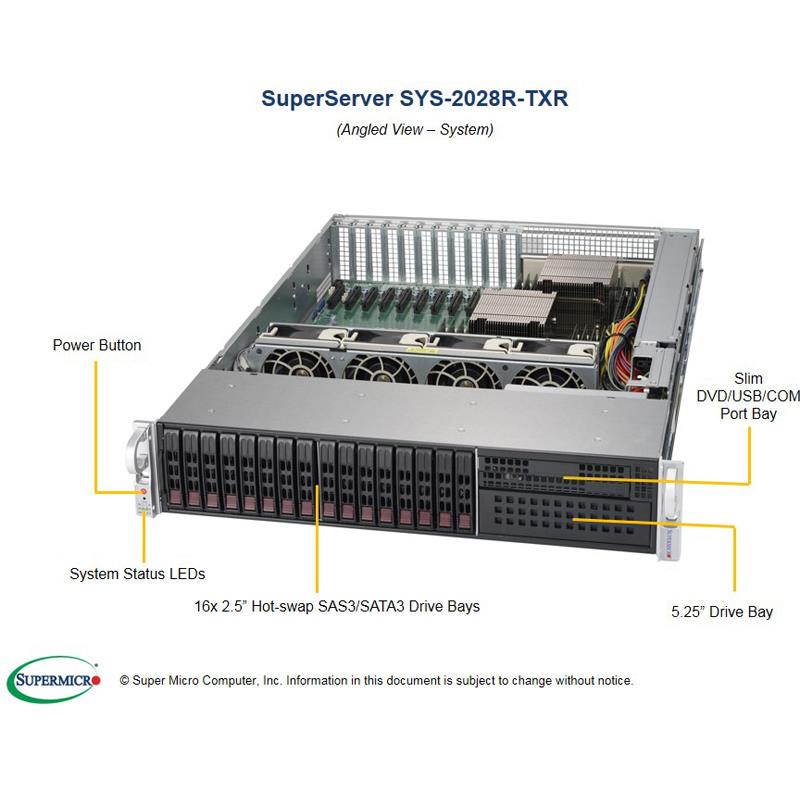

5. 16 Hot-swap 2.5" drive bays, 8 SATA3 ports by default; optional drive support: 16 SAS3; 1x 5.25" peripheral drive bay
6. I/O: 1 COM, 1 VGA, 2 USB 3.0 and 2 USB 2.0 (rear)
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 4x 8cm 7K RPM, middle fans
9. 1000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-2028R-TXR 2U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X10DRX | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| Serial ATA | 8 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (rear) | ||
| Serial Port / Header | 1 COM port (rear) | |
| VGA | 1 VGA port | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| TPM | 1 TPM 1.2 20-pin Header | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-213XAC-R1K05LP | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 27.76" (705.3mm) | |
| Weight | Net Weight: 36 lbs (16.4 kg) | |
| Gross Weight: 72 lbs (32.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Hard drive activity LED | |
| 2 Network activity LEDs | ||
| Power status LED | ||
| System information (overheat/UID) LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 10 PCI-E 3.0 x8 slots | |
| 1 PCI-E 2.0 x4 (in x8) slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.) | ||
| Drive Bays | ||
| Hot-swap | 16 Hot-swap 2.5" drive bays | |
| 8 SATA3 ports by default | ||
| Optional drive support: 16 SAS3 Note: optional storage card is required to support more than 10 drives | ||
| Peripheral Bay | ||
| Peripheral | 1x 5.25" peripheral drive bay | |
| Optional | 1x slim DVD-ROM drive (optional) | |
| Backplane | ||
| Backplane | 1x SAS3 / SATA backplane | |
| System Cooling | ||
| Fans | 4x 8cm 7K RPM, Middle fans | |
| PowerStick Power Supply | ||
| PowerStick Power Supply | 1000W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| Dimension (W x H x L) | 38 x 40 x 360 mm | |
| Input | 100-127Vac / 9-7.5A / 50-60Hz | |
| 200-240Vac / 6-5A / 50-60Hz | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | Gold Finger Connector (16 Power Pin, 14 Signal Pin) | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS rescue hot keys | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2028R-TXR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRX | 1 | Super X10DRX Motherboard | |
| Motherboard / Chassis | CSE-213XAC-R1K05LP | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-213A | 1 | 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-SAST-0631 | 2 | MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1933-QRG | 1 | SYS-2028R-TXR Quick Reference Guide | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-1K05A-1R | 2 | 1U 1000W Redundant Power Supply Titanium, 38X40X360mm length |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Slim DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| 5.25" DVD kit | MCP-220-00006-00 | $ 19.00 | 0 | 5.25" drive rail set | ||
| USB 2.0/COM port tray | MCP-220-00007-01 | $ 31.00 | 0 | Black USB2.0 /COM port tray (mount with Slim DVD Kit) | ||
| USB 3.0/COM port tray | MCP-220-00114-0N | $ 43.00 | 0 | Black 2x USB3.0/COM port tray (mount with Slim DVD Kit) | ||
| Mobile Rack | CSE-M14TQC & CBL-SAST-0699 | 0 | Black SAS3/SATA3 Mobile Rack for 4x 2.5 (mount with 5.25" DVD kit); internal mini SAS HD to 4 SATA 12G, 75/75/90/90cm w/75cm SB, S. 30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e & 2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i & 2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR & 2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| CacheVault | BTR-TFM8G-LSICVM02 | 1 | Supercap 8GB CV + BKT-BBU-BRACKET-05 or MCP-240-00127-0N x1 | |||
| CacheVault | BKT-BBU-BRACKET-05 | 1 | Mounting PCIe Card | |||
| CacheVault | MCP-240-00127-0N | $ 20.50 | 1 | SuperCap tray for 2.5" HDD | ||
| P4 GPU kit | MCP-310-00084-0B | 1 | Mylar Air Shroud(GPU) and air block for SC213X (X10DRX) | |||
| P4 GPU kit | MCP-310-00086-0B | 1 | Mylar Air dummy(GPU) for SC213X | |||
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 0 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
