Motherboard |
Motherboard | Super X11SSV-M4F |
System Memory |
Memory Capacity | 2x DDR4 SO-DIMM slots |
| Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots |
Memory Type | 2133/1866/1600MHz ECC DDR4 SODIMMs |
DIMM Sizes | 16GB, 8GB, 4GB |
Memory Voltage | 1.2 V |
On-Board Devices |
Chipset | Intel® C236 chipset |
SATA | SATA3 (6Gbps) via C236 controller |
| RAID 0, 1, 5, 10 support |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Single GbE LAN with Intel® I219LM controller |
| Single GbE LAN with Intel® I210-AT; IPMI shared LAN with I210-AT |
| Dual GbE LAN with Intel® I350-AM2 |
Video | ASPEED AST2400 BMC |

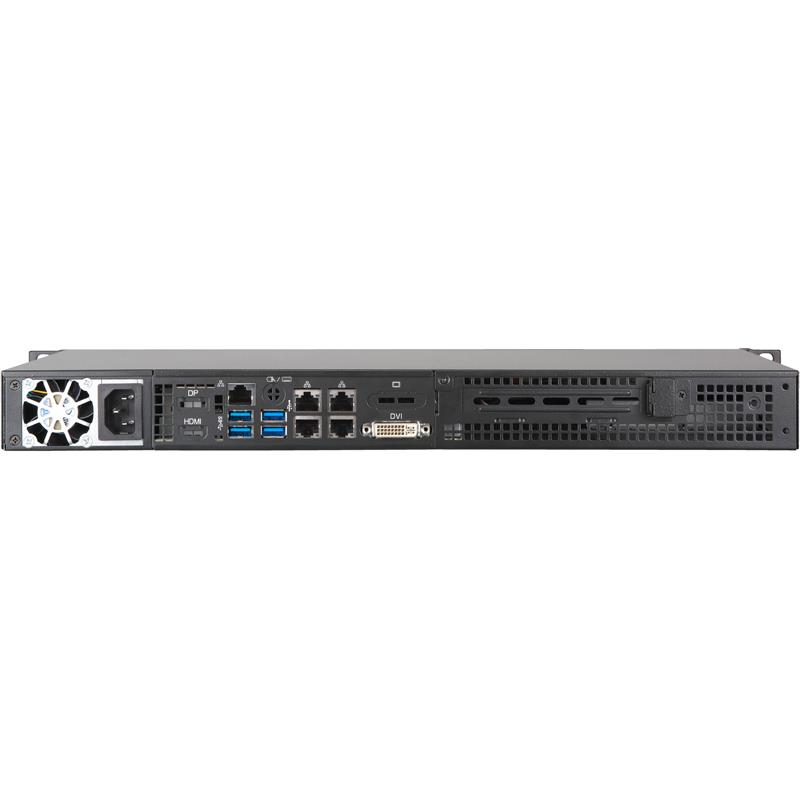

Input / Output |
SATA | 4 SATA3 (6Gbps) ports |
LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Shared IPMI LAN port |
USB | 4 USB 3.0 ports (rear) |
Video | 1 VGA port (DVI-A) |
Serial Port / Header | 1 COM port in RJ45 socket |
TPM | 1 TPM Header |
PC Health Monitoring |
Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| 3 fans with tachometer status monitoring |
| Total of 3 fan headers supporting up to 3 fans |
Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| I 2 C temperature sensing logic |
| Thermal Monitor 2 (TM2) support |
| PECI |
LED | UID/Remote UID |
| Suspend static indicator LED |
| System Information LED |
Other Features | Chassis intrusion detection |
| Chassis intrusion header |
| RoHS, Halogen Free |
Chassis |
Form Factor | 1U Rackmount |
Model | CSE-504-203B |
Dimensions and Weight |
Height | 1.7" (43mm) |
Width | 17.2" (432mm) |
Depth | 9.8" (249mm) |
Package | 8.5" (H) x 24" (W) x 29.5" (D) |
Weight | Net Weight: 8 lbs (3.62 kg) |
| Gross Weight: 12 lbs (5.44 kg) |
Available Colors | Black |
Front Panel |
Buttons | Power On/Off button |
| System Reset button |
LEDs | Power LED |
| System Information LED |
| Hard drive activity LED |
| 4 Network activity LEDs |
Expansion Slots |
PCI-Express | 1 PCI-E 3.0 x16 slot |
| 1 Mini PCI-E with mSATA support |
| M.2 Interface: PCIe 3.0 x4 and SATA M.2 Form Factor: 2242, 2280 |
Drive Bays |
Internal | 1x 3.5" or 4x 2.5" drive bays |
System Cooling |
Fans | 3x 40x28mm 4-pin PWM Cooling Fans |
Power Supply |
Power Supply | 200W Low Noise AC-DC power supply with PFC |
AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max |
+5V | 8.0 Amp (max.) |
+5V standby | 2.0 Amp (max.) |
+12V | 16 Amp (max.) |
-12V | 0.5 Amp (max.) |
+3.3V | 8.0 Amp (max.) |
Certification | Gold Certified |
System BIOS |
BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS |
BIOS Features | USB Keyboard support |
| DMI 2.3 |
| SMBIOS 2.3 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 |
Operating Environment / Compliance |
RoHS | RoHS Compliant |
Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Processor |
CPU | Single Socket FCBGA 1440 supports: |
| Intel® Xeon® processor E3-1585 v5, 4-Core, 8 Threads, 65W |
Product SKUs |
Product SKUs | SuperServer 5019S-TN4 (Black) |
