| Motherboard |
| Motherboard | Super X11SSV-M4F |
| System Memory |
| Memory Capacity | 2x DDR4 SO-DIMM slots |
| Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots |
| Memory Type | 2133/1866/1600MHz ECC DDR4 SODIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| On-Board Devices |
| Chipset | Intel® C236 chipset |
| SATA | SATA3 (6Gbps) via C236 controller |
| RAID 0, 1, 5, 10 support |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Single GbE LAN with Intel® I219LM controller |
| Single GbE LAN with Intel® I210-AT; IPMI shared LAN with I210-AT |
| Dual GbE LAN with Intel® I350-AM2 |
| Video | ASPEED AST2400 BMC |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Shared IPMI LAN port |
| USB | 4 USB 3.0 ports (rear) |
| Video | 1 VGA port (DVI-A) |
| Serial Port / Header | 1 COM port in RJ45 socket |
| TPM | 1 TPM Header |
| PC Health Monitoring |
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| 3 fans with tachometer status monitoring |
| Total of 3 fan headers supporting up to 3 fans |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| I 2 C temperature sensing logic |
| Thermal Monitor 2 (TM2) support |
| PECI |
| LED | UID/Remote UID |
| Suspend static indicator LED |
| System Information LED |
| Other Features | Chassis intrusion detection |
| Chassis intrusion header |
| RoHS, Halogen Free |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-504-203B |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.2" (432mm) |
| Depth | 9.8" (249mm) |
| Package | 8.5" (H) x 24" (W) x 29.5" (D) |
| Weight | Net Weight: 8 lbs (3.62 kg) |
| Gross Weight: 12 lbs (5.44 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| System Information LED |
| Hard drive activity LED |
| 4 Network activity LEDs |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x16 slot |
| 1 Mini PCI-E with mSATA support |
| M.2 Interface: PCIe 3.0 x4 and SATA M.2 Form Factor: 2242, 2280 |
| Drive Bays |
| Internal | 1x 3.5" or 4x 2.5" drive bays |
| System Cooling |
| Fans | 3x 40x28mm 4-pin PWM Cooling Fans |
| Power Supply |
| Power Supply | 200W Low Noise AC-DC power supply with PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max |
| +5V | 8.0 Amp (max.) |
| +5V standby | 2.0 Amp (max.) |
| +12V | 16 Amp (max.) |
| -12V | 0.5 Amp (max.) |
| +3.3V | 8.0 Amp (max.) |
| Certification | Gold Certified |
| System BIOS |
| BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS |
| BIOS Features | USB Keyboard support |
| DMI 2.3 |
| SMBIOS 2.3 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Processor |
| CPU | Single Socket FCBGA 1440 supports: |
| Intel® Xeon® processor E3-1585 v5, 4-Core, 8 Threads, 65W |
| Product SKUs |

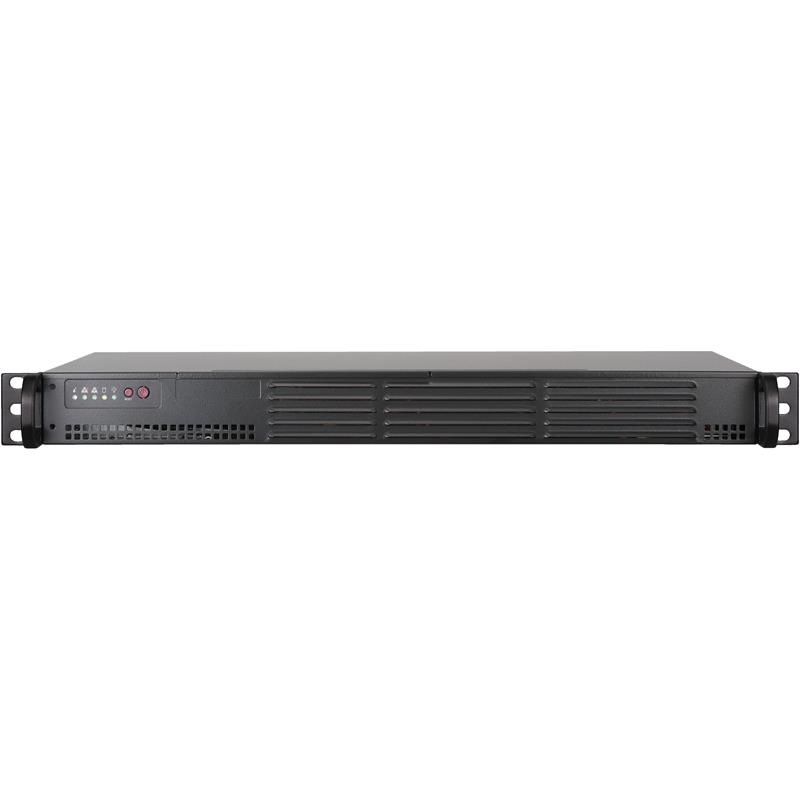

| Product SKUs | SuperServer 5019S-TN4 (Black) |
