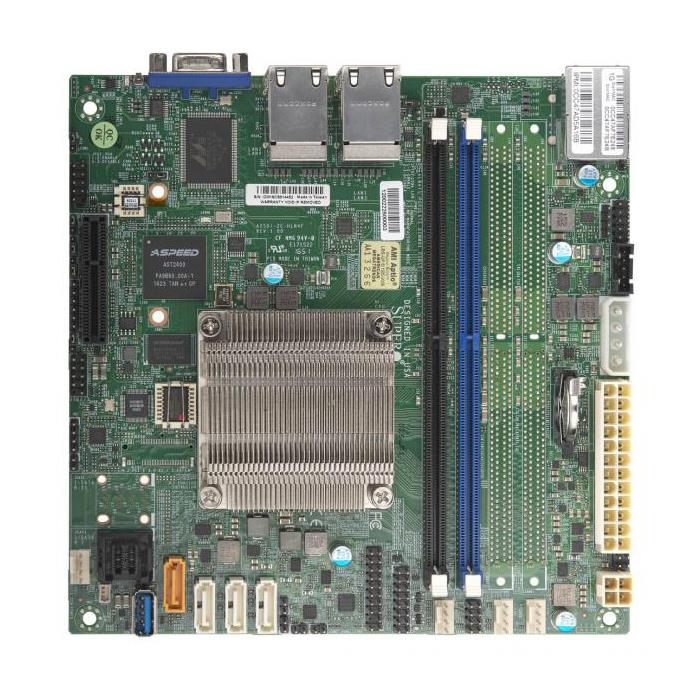

Supermicro A2SDI-2C-HLN4F Motherboard mini-ATX with Intel Atom Processor C3338 (1.5-2.2GHz, 2-Core) Single Socket FCBGA1310 supported

• Onboard RAID Controller SATA3
• Quad LAN with SoC GbE Onboard
• Intel Atom Processor C3338; 2-Core
• Up to 64GB DDR4 RDIMM; in 2 DIMM slots

Motherboard mini-ATX with Intel Atom Processor C3338 (1.5-2.2GHz, 2-Core) Single Socket FCBGA1310 supported - Supports up to 64GB DDR4 Register RDIMM up to 1866MHz in 2 DIMM slots - System on Chip Chipset - Onboard RAID Controller : Up to 4 SATA3 (6 Gbps) ports available (Configurable in BIOS) - Expansion Slots : 1 PCI-E 3.0 up to 4 lanes (in x4 slot) - Onboard LAN : Quad LAN with SoC GbE - Onboard VGA/Display Ports : 1 VGA, 1 Aspeed AST2400 BMC - USB Ports : 4 USB 2.0 ports (2 rear + 2 via headers), 1 USB 3.0 ports ( + 1 Type A) - Other Onboard I/O Devices : 1 Port SuperDOM, 1 fast UART 16550 serial, TPM Header, 1 COM Ports (1 header) - MBD-A2SDi-2C-HLN4F-O (Retail Box)


    282.00282.00282.0USD

    282.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • PCI-E 3.0 up to 4 lanes (in x4 slot)
    • Onboard LAN : Quad LAN with SoC GbE
    • Supports up to 64GB DDR4 Register RDIMM up to 1866MHz in 2 DIMM slots
    • Onboard RAID Controller : Up to 4 SATA3 (6 Gbps) ports available (Configurable in BIOS)

    Extra Specifications for Supermicro A2SDI-2C-HLN4F Motherboard mini-ATX with Intel Atom Processor C3338 (1.5-2.2GHz, 2-Core) Single Socket FCBGA1310 supported

    Main Specifications
    Device Type Atom Board
    Form Factor Mini-ITX
    Processor
    Installed Brand Intel Atom Processor C3338, CPU TDP support 9W, 1.5-2.2GHz, 4MB
    Processor Sockets Single Socket FCBGA1310 supported
    System Bus System on Chip
    System Memory
    Memory Capacity Up to 64GB Register DIMM RDIMM, DDR4-1866MHz
      Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR3-1866MHz, in 2 DIMM slots
    On-Board Devices
    Chipset System on Chip
    Network Controllers Quad LAN with SoC GbE
    SATA Up to 4 SATA3 (6 Gbps) ports available Configurable in BIOS
    VGA 1 VGA, 1 Aspeed AST2400 BMC
    Input / Output
    DOM 1 Port SuperDOM
    Serial Port / Headers 1 fast UART 16550 serial, TPM Header
      1 COM Ports (1 header)
    USB 4 USB 2.0 ports (2 rear + 2 via headers)
      1 USB 3.0 ports ( + 1 Type A)
    Expansion / Connectivity
    Expansion Slots Total (Free) 1 PCI-E 3.0 up to 4 lanes (in x4 slot)
    System BIOS
    BIOS Type AMI UEFI
    NamePart NumberQuantityDescription
    NamePart NumberQuantityDescription
    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (DOA)
    Provider:Manufacturer
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or Repair
    Average Service Time:Overnight Replacement for 120 days, 2 weeks afterwards
    If you need Technical Support for this item please contact:

    Provider:Supermicro Computer, Inc.
    Type of Support:FULL
    Phone No: 408-503-8029
    URL:Click here for Manufacturer Website
