| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 2 DIMM slots |
| Up to 32GB Unbuffered ECC SODIMM, DDR4-2133MHz |
| Memory Voltage | 1.2V |
| Memory Type | 2133/1866/1600 MT/s ECC DDR4 SODIMM Unbuffered |
| On-Board Devices |
| Chipset | Intel® C236 |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Dual LAN with Intel® Ethernet Controller I350-AM2 |
| Single LAN with Intel® PHY I219LM LAN controller, IPMI Shared LAN with I210-AT |
| SATA | Intel RSTe |
| Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2400 BMC |
| Audio | ALC 888S HD Audio |
| Graphics | 1 ASPEED AST2400 BMC port(s) |
| *Intel Iris Pro P580 for VHD* |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) port(s) |
| LAN | 2 |
| USB | 5 USB 2.0 port(s) (4 via header; 1 Type A) |
| 4 USB 3.2 Gen1 port(s) (4 rear) |
| Video Output | 1 DVI - A port(s) |
| DOM | 2 Super DOM (Disk on Module) port with build power |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| UEFI 2.3.1 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| BIOS Type | 128MB SPI Flash with AMI BIOS |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Software | SuperDoctor® 5, NMI, SUM , SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog |
| System Management Software | SuperDoctor 5, IPMIView for Linux/Windows |
| PC Health Monitoring |
| FAN | 3x 4-pin fan headers (up to 3 fans) |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) |
| Other Features | WOL, System level control, RoHS, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, VHD |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| Product SKUs |

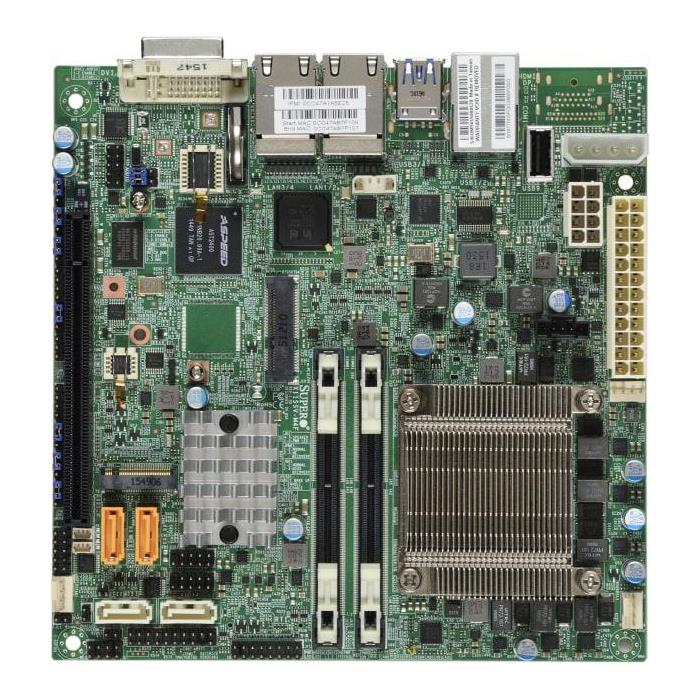

| Product SKUs | MBD-X11SSV-M4F |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| CPU | Intel® Xeon® processor E3-1585 v5 |
| Single Socket FCBGA-1440 supported, CPU TDP supports Up to 65W TDP |
| Core | Up to 4 cores, 8 threads |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x16 |
| Mini PCIe with mSATA support Bifurcation support on PCIE x16 slot |
| M.2 | Form Factor: 2280, 2242 |
| M.2 Interface: SATA |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
