| Motherboard |
| Motherboard | Super X11SAN |
| Processor/Cache |
| CPU | System-on-Chip |
| Intel® Pentium™ Processor N4200 |
| FCBGA 1296 |
| CPU TDP support 6W |
| System Memory |
| Memory Capacity | 1x 204-pin DDR3L SO-DIMM socket |
| Memory Type | 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB |
| Memory Voltage | 1.35 V |
| On-Board Devices |
| Network Controllers | Dual GbE LAN with Intel i210-AT controller |
| Video | Intel HD Graphics |
| Input / Output |

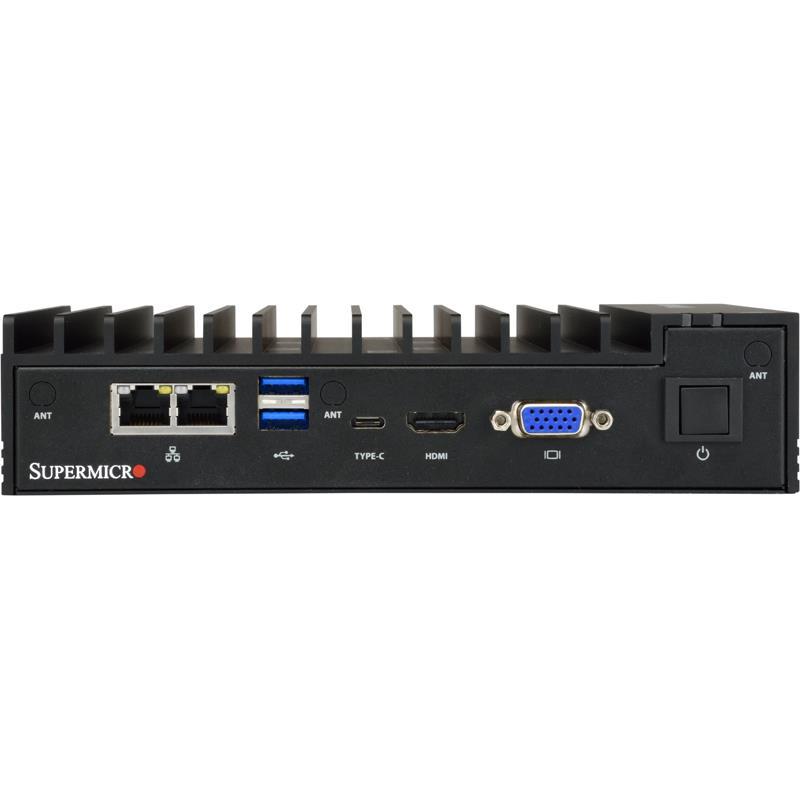

| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 1 USB 3.1 (Type C, front) |
| 2 USB 3.0 (front) |

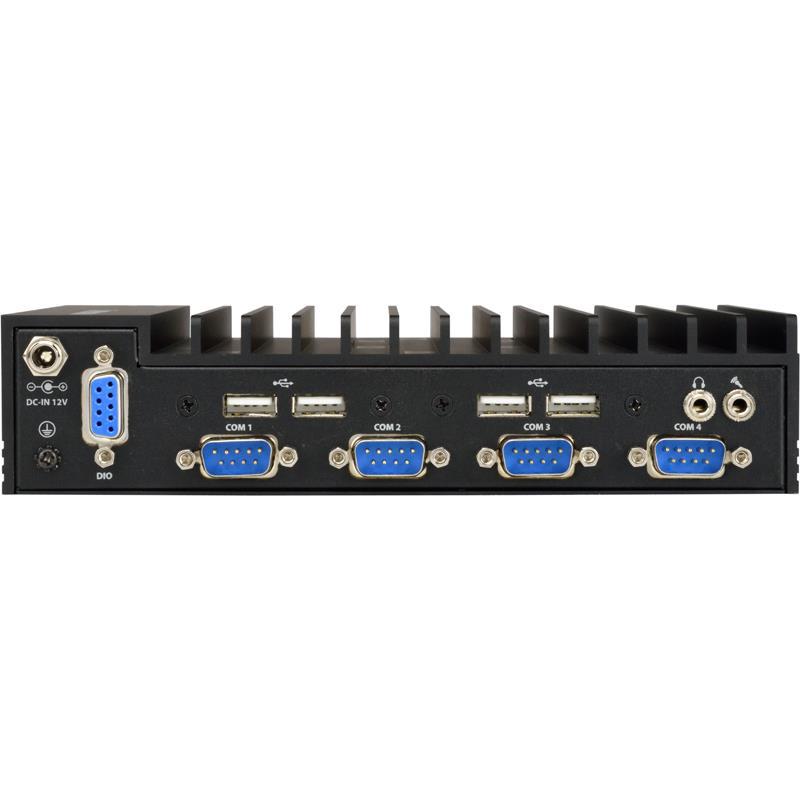

| 4 USB 2.0 (rear) |
| COM Port | 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control |
| Video | 1 VGA, 1 HDMI, 1 Intel HD Graphics |
| Audio | ALC 888S HD Audio, 1 HD Audio header (Mic-in/Line-out) |
| TPM | 1 TPM 2.0 Chip onboard |
| Others | 8-bit configurable GPIO via DB9 |
| Chassis |
| Form Factor | 3.5" SBC |
| Model | CSE-E101 |
| Dimensions |
| Width | 7.68" (195mm) / 11.81" (300mm) - pkg. |
| Height | 1.73" (44mm) / 5.12" (130mm) - pkg. |
| Depth | 5.94" (151mm) / 11" (279mm) - pkg. |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED and Hard drive activity LED |
| Expansion Slots |
| PCI-Express | 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2) |
| Drive Bays |
| Internal | 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) |
| System Cooling |
| Fans | Fan-less design |
| Power Supply |
| Power Supply | Lockable 12V DC 40W power adapter |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI |
| Management |
| Software | Watch Dog |
| SuperDoctor® 5 |
| Power Configurations | ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| ATX Power connector |
| CPU thermal trip support for processor protection |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis |
| Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms The use of industrial grade wide-temperature peripherals is required to meet 40°C operating temperature. |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s air flow |
| Product SKUs |

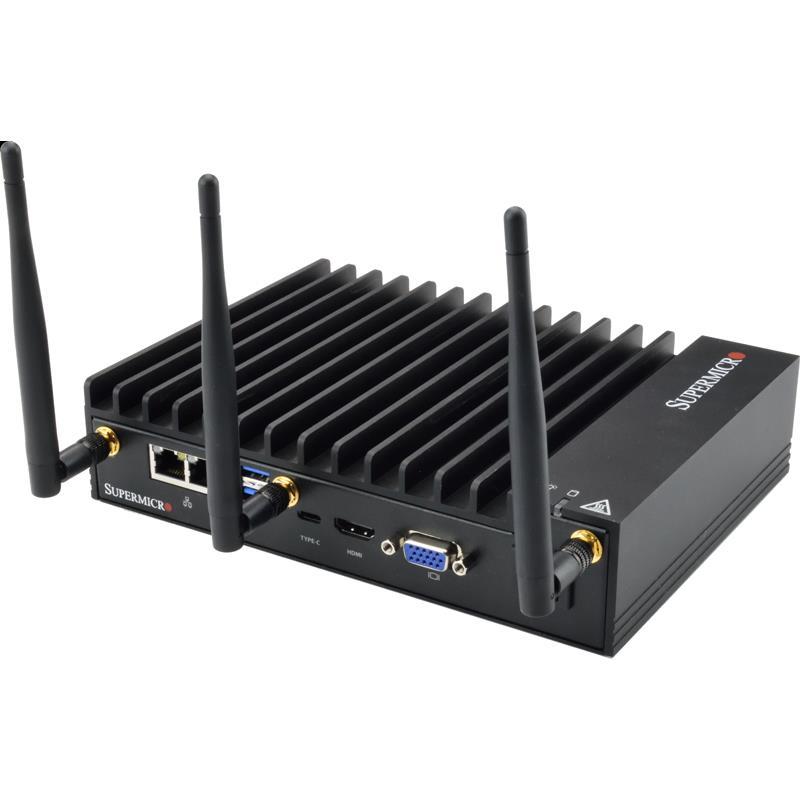

| Product SKUs | SuperServer E100-9APP (Black) |
