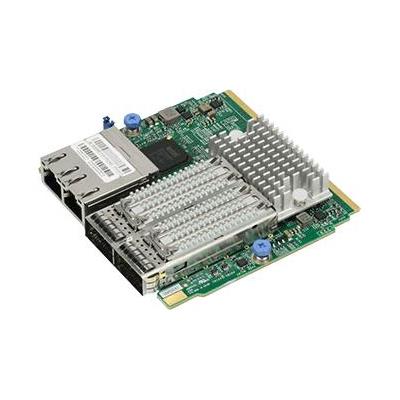

Supermicro AOC-MHIBF-M2Q2G InfiniBand FDR Adapter, in Supermicro Super I/O Module (SIOM) Form Factor, for Storage Systems

• Optimized mechanical and thermal design
• Up to 56Gbps InfiniBand or 40Gbps Ethernet
• Asset Management Features with thermal sensor
• Mellanox ConnectX-3 Pro InfiniBand FDR controller

InfiniBand FDR Adapter, in Supermicro Super I/O Module (SIOM) Form Factor, for Storage Systems - Mellanox ConnectX-3 Pro InfiniBand FDR controller - Dual QSFP connector model - Up to 56Gbps InfiniBand or 40Gbps Ethernet - Virtual Protocol Interconnect (VPI) - VXLAN and NVGRE - Intel i350 GbE controller - Dual RJ45 Connectors


    790.00790.00790.0USD

    790.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Dual QSFP connector model
    • Virtual Protocol Interconnect (VPI)
    • Super I/O Module (SIOM) Form Factor
    • Up to 56Gbps InfiniBand or 40Gbps Ethernet
    • Mellanox ConnectX-3 Pro InfiniBand FDR controller

    Extra Specifications for Supermicro AOC-MHIBF-M2Q2G InfiniBand FDR Adapter, in Supermicro Super I/O Module (SIOM) Form Factor, for Storage Systems

    Main Specifications
    Chipset Mellanox® CX-3 Pro Intel® i350
    Device Type InfiniBand FDR Adapter
    Dimensions (WxDxH) Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)(W x D)
    Form Factor Super I/O Module (SIOM)
    Networking
    Connectivity Technology Interoperable with InfiniBand or 40GbE switches
      Passive copper cable with ESD protection
    Data Transfer Rate Up to 56Gbps InfiniBand or 40Gbps Ethernet
    Enhanced InfiniBand Hardware-based reliable transport
      Collective operations offloads
      Hardware-based reliable multicast
      Extended Reliable Connected transport
      Enhanced Atomic operations
    Ethernet IEEE 802.3ba 40 Gigabit Ethernet, IEEE Std 802.3ad Link Aggregation, IEEE Std 802.3az Energy Efficient Ethernet, IEEE Std 802.1Q, .1P VLAN tags and priority, IEEE P802.1bb D1.0 Priority-based Flow Control, IEEE 1588, Jumbo frame support (9600B)
    Hardware-based I/O Virtualization Single Root IOV, Address translation and protection, Dedicated adapter resources, Multiple queues per virtual machine, Enhanced QoS for vNICs, VMware NetQueue support
    InfiniBand IBTA Specification 1.2.1 compliant
      Hardware-based congestion control
      256 to 4Kbyte MTU, 2GB messages
    Port Quantity 2 QSFP (56Gb/port)
      2 RJ45 (1Gb/port)
    Power
    Comsumtion Operational Maximum 11W
    Expansion / Connectivity
    Interface and Connections Dual QSFP ports and Dual RJ45 port
    Environmental Parameters
    Operating Temperature Operating temperature: 0°C to 55°C (32°F to 131°F)
      Storage temperature: -40°C to 70°C (-40°F to 158°F)
      Storage humidity: 90% non-condensing relative humidity at 35°C
    Software / System Requirements
    OS Supports FreeBSD
      OpenFabrics Enterprise Distribution (OFED)
      OpenFabrics Windows Distribution (WinOF)
      VMware ESXi 4.x and 5.x
      Citrix XenServer 6.1
      RHEL/CentOS 5.X and 6.X, Novell SLES10 SP4, SLES11 SP1, SLES 11 SP2, OEL, Fedora 14, 15, 17, Ubuntu 12.04
      Windows Server 2008/2012/2012 R2
    Miscellaneous
    Cables Required Cables Support: GbE RJ45 Category 5/5e up to 100m
      Cables Support: InfiniBand FDR QSFP 56Gbps Copper cables
    Designed For Supermicro® motherboards with Super I/O Module slot
      Supermicro® server systems with Super I/O Module slot
    Features NC-SI for IPMI support
      Asset Management features
      Better cost compared to standard PCI-E networking adapters
      Optimized mechanical and thermal design
      Better flexibility and cost effectiveness for upgrading networking capabilities without replacing the entire system or motherboard
    Included Accessories 1x BKT-0122L
    ROHS RoHS compliant 6/6
