- Supermicro AOC-MH25G-b2S2G SIOM 2-port 25Gbps / 1Gbps SFP28 Network Adapter

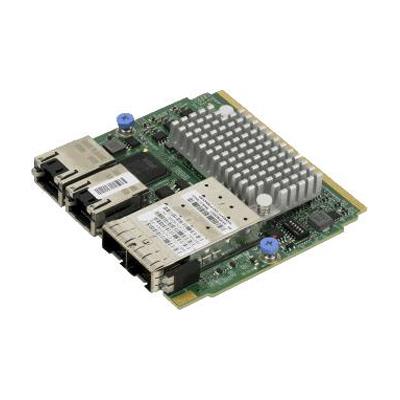

Supermicro AOC-MH25G-b2S2G SIOM 2-port 25Gbps / 1Gbps SFP28 Network Adapter
SIOM 2-port 25Gbps / 1Gbps SFP28 Network Adapter - Broadcom BCM57414 / Intel i350-AM2 controllers
• Super I/O Module (SIOM) Form Factor
• Broadcom
®
BCM57414 25GbE controller,
Dual SFP28 connectors
• Intel
®
i350-AM2 GbE controller, Dual RJ45 Connectors
• Network Virtualization: VXLAN and NVGRE
(25GbE Controller only)
• NIC Partitioning (NPAR)
(25GbE Controller only)
• Broadcom TruFlow
(25GbE Controller only)
• PCI-SIG SR-IOV
• IEEE 1588 Time Sync
• Jumbo Frames support
• NC-SI for IPMI Remote Management
(GbE Controller only)
• Asset Management Features
• RoHS compliant 6/6
Extra Specifications for Supermicro AOC-MH25G-b2S2G SIOM 2-port 25Gbps / 1Gbps SFP28 Network Adapter
| Add-on Card | ||
| Add-on Card | The Supermicro AOC-MH25G-b2S2G is one of the most feature rich and low power consumption 25GbE controllers in the market. With 2-ports of 25GbE SFP28 connectivity in small form factor SIOM and based on the Broadcom BCM57414 with features such as VXLAN, NVGRE, RoCE also NIC Partitioning, it provides unparalleled density, performance, and functionality. It also supports additional 2-ports GbE RJ45, based on Intel i350, providing NC-SI side-band for IPMI Remote Management. AOC-MH25G-b2S2G is the most versatile 25GbE controller in the market and an excellent choice to enhance network connectivity in Data Centers and Enterprise environments. This product is only available through Supermicro. | |
| Controller Specifications | ||
| Controller Specifications | • General - Super I/O Module (SIOM) Form Factor - Broadcom® BCM57414 25GbE controller • Dual SFP28 connectors with speed up to 25Gbps per port - Intel® i350-AM2 GbE controller • Dual RJ45 connectors with speed up to 1Gbps per port • Cables Support: - 25GbE SFP28: Direct attach copper cables and Fiber-optic cables (with required optional transceivers) - GbE RJ45: RJ-45 Category-5/5e up to 100m • Power Consumption: - Maximum 9W • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) - Storage temperature: -40°C to 70°C (-40°F to 158°F) - Storage humidity: 90% non-condensing relative humidity at 35°C • Physical Dimensions - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) • Supported Platforms: - Supermicro® motherboards with SIOM slot - Supermicro® server systems with SIOM slotPlease note that this product is sold only as part of an integrated solution with Supermicro server systems | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| 25GbE Specifications | ||
| 25GbE Specifications | • Networking Features - Jumbo frames - 802.3x flow control - Link Aggregation (802.3ad) - Virtual LANs- 802.1q VLAN tagging - Configurable Flow Acceleration - IEEE 1588 and Time Sync • Stateless Offload Features: - TCP, UDP, IPv4, IPv6 checksum offload - Large Send Offload - Receive Segment Coalescing - TCP Segmentation Offload - Large Receive Offload - Receive Side Scaling (RSS) - Transmit Side Scaling (TSS) • NIC Partitioning (NPAR): - 16 Physical Functions - QoS per partition - Partitioning control via sideband communication - Up to 64 MAC/VLAN filter per partition - Per partition statistics support - Stateless offloads configuration per partition - VEB/VEPA support • Virtualization Features: - NetQueue, VMQueue, and Multiqueue - Support for 128 Virtual Functions - VXLAN, NVGRE and Geneve - Edge Virtual Bridging (EVB) • RDMA over Converged Ethernet (RoCE): - RoCEv1 and RoCEv2 - Data Center Bridging with RoCE • Flow Processing: - Exact/Wildcard Match Flow Lookup - VLAN insertion/deletion - NAT/NAPT - Mirroring • Data Center Bridging: - Priority-based flow control (PFC; IEEE 802.1Qbb) - Enhanced transmission selection (ETS; IEEE 802.1Qau) - Quantized congestion Notification (QCN; IEEE 802.1Qau) - Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz) - 8 traffic classes per port; fully DCB compliant per 802.1Qbb • Power Savings: - ACPI compliant power management - PCI Express Active State Power Management (ASPM) - Ultra low-power mode - Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010) | |
| GbE Specifications | ||
| GbE Specifications | • Ethernet Features: - IEEE 802.3 auto-negotiation for speed, duplex, and flow control - IEEE 802.3x and 802.3z compliant flow control support - Automatic cross-over detection function (MDI/MDI-X) - 1Gb/s Ethernet IEEE 802.3, 802.3u,802.3ab PHY specifications Compliant - IEEE 1588 protocol and 802.1AS implementation • Power Management and Efficiency: - Energy Efficient Ethernet (EEE) - DMA Coalescing reduces platform power consumption - Active State Power Management (ASPM) support - LAN disable function - MAC Power Management controls - Low Power Link Up - Link Speed Control • Virtualization Features: - PC-SIG SR-IOV support - VM to VM Packet forwarding (Packet Loopback) - Flexible Port Partitioning - IEEE 802.1q VLAN support - IEEE 802.1q advanced packet filtering - Jumbo Frames support • Performance Features: - TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage - Low Latency Interrupts - Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage - Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Intelligent interrupt generation • Management Features: - Preboot eXecution Environment (PXE) support - iSCSI Remote Boot Support - NC-SI for remote management | |
