- Supermicro AOC-STGS-I1T Standard Low-profile 1-port 10Gbase-T, Intel X550

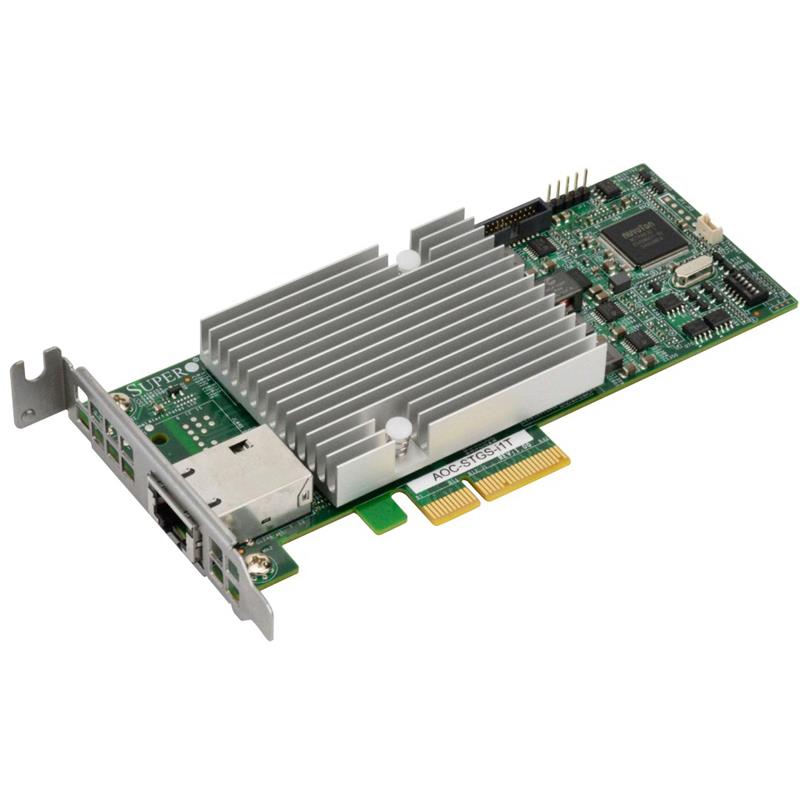

Supermicro AOC-STGS-I1T Standard Low-profile 1-port 10Gbase-T, Intel X550
• PCI Express 3.0 x4 (8GT/s)
• Single-port 10GbE controller
• Asset Management features w/ thermal sensor
• Low-Profile; Short Length Standard Form Factor
Standard Low-profile 1-port 10Gbase-T, Intel X550
• RoHS compliant 6/6
• Time Sync IEEE1588
• VXLAN and NVGRE
• NC-SI for IPMI support
• Single RJ45 connector
• PCI Express 3.0 x4 (8GT/s)
• IEEE802.3az Energy Efficient Ethernet (EEE)
• Low-Profile, Short Length Standard Form Factor
• Asset Management features with thermal sensor
• VMDq, PCI-SIG SR-IOV for Virtulization Environments
• Intel Ethernet Flow Director for hardware-based application traffic steering
Extra Specifications for Supermicro AOC-STGS-I1T Standard Low-profile 1-port 10Gbase-T, Intel X550
| Main Specifications | ||
| Dimensions (WxDxH) | Height of end brackets: standard 12cm (4.725in), low-profile 8cm (3.15in) | |
| Card PCB dimensions: 15cm x 6.89cm (5.9in x 2.71in) (LxW) | ||
| Form Factor | Compact size low-profile standard | |
| Interface (Bus) Type | PCI-E 3.0 x4 (8GT/s, 5GT/s or 2.5GT/s) | |
| Weight | 0.2455 lb | |
| Networking | ||
| Controller Type | Intel X550-AT | |
| Remote Management Protocol | Asset Management features with thermal sensor | |
| Management Features | INC-SI for IPMI Support | |
| Port Quantity | Single RJ45 connectors with speed up to 10Gb/port | |
| Virtualization Features | Multi-mode I/O Virtualization Operations, VXLAN, NVGRE, Virtual Machine Device Queues (VMDq), Next Generation VMDq, 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port, Flexible Port Partitioning: 64 Virtual Functions Per Port, Support for PCI-SIG SR-IOV Specification, EEE 802.1Q VLAN | |
| Power | ||
| Details | 9W (-i1T) | |
| Expansion / Connectivity | ||
| Interface and Connections | 1 RJ45 (10GBase-T) | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Miscellaneous | ||
| Cables Type | Cables Support: RJ-45 Category-6 up to 55m, Category-6A up to 100m | |
| Features | Intel Flow Director | |
| MSI-X support | ||
| Multiple Queues: 128 Tx and Rx Per Port | ||
| TCP/UDP, IPv4 Checksum Offloads | ||
| RSS for Windows Environment Scalable I/O for Linux Environments | ||
| IPv6 Support for IP/TCP and IP/UDP Receive Checksum Offload | ||
| Support for Packets Up to 15.5KB | ||
| Large FC Receive | ||
| DMA Coalescing | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
