- Supermicro AOC-STG-I4T Standard LP 4-port 10GbaseT, Intel XL710 and X557

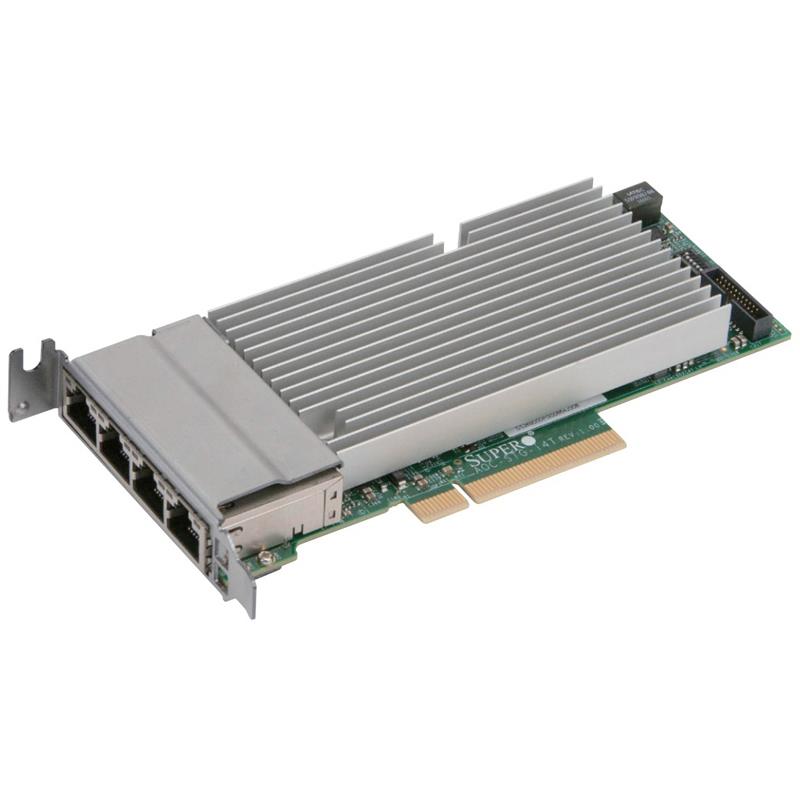

Supermicro AOC-STG-I4T Standard LP 4-port 10GbaseT, Intel XL710 and X557
• Energy-efficient and cost-effective
• Solution for advanced data centers
• Virtualization features as VxLAN; NVGRE
• 4 RJ45 connectors; speed up to 10Gb/s per port
Standard LP 4-port 10GbaseT, Intel XL710 and X557
• PCI-E 3.0 x8 (8GT/s) interface
• Load balancing on multiple CPUs
• Half-length low-profile standard form factor
• Quad RJ45 connectors with speed up to 10Gb/s per port
Extra Specifications for Supermicro AOC-STG-I4T Standard LP 4-port 10GbaseT, Intel XL710 and X557
| Main Specifications | ||
| Device Type | Ethernet Controller | |
| Dimensions (WxDxH) | Card PCB dimensions: 5.9in (14.99cm) x 2.73in (6.90cm) (L x H) | |
| Height of end brackets: standard - 4.725in (12cm), low-profile - 3.13in (7.94cm) | ||
| Form Factor | Low-Profile Standard Short-length Form Factor | |
| Interface (Bus) Type | PCI Express 3.0 (8GT/s) | |
| Networking | ||
| Controller Type | Intel XL710-BM1 | |
| Port Quantity | Quad RJ45 connectors with speed up to 10Gb/s per port | |
| Virtualization Features | Next-Generation VMDq with up to 256 VMDq VMs supported, SR-IOV with up to 128 virtuals ports, Virtual Machine Load Balancing (VMLB), Advanced Packet Filtering, VLAN support for up to 4,096 VLAN tags, VXLAN and NVGRE support | |
| Storage Controller | ||
| Data Transfer Rate | 10GbE | |
| Power | ||
| Comsumtion Operational | 15.5W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Software / System Requirements | ||
| OS Supports | Windows Server 2012 R2, 2012, 2008 R2 X86-64 | |
| Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 | ||
| Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 | ||
| FreeBSD 9 and 10 IA-32, X86-64, and IA-64 | ||
| UEFI 2.1 and 2.3 X86-64 and I-64 | ||
| VMware ESXi 5.1 and ESXi 5.5 X86-64 | ||
| Miscellaneous | ||
| Features | Intel Flow Director | |
| Multiple queues: 1,536 Tx and Rx queues per port | ||
| Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities | ||
| MSI-X support to minimize interrupt overhead and to allow load-balancing be-tween multiple cores/CPUs | ||
| Compliant Standards | RoHS Compliant 6/6 | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
