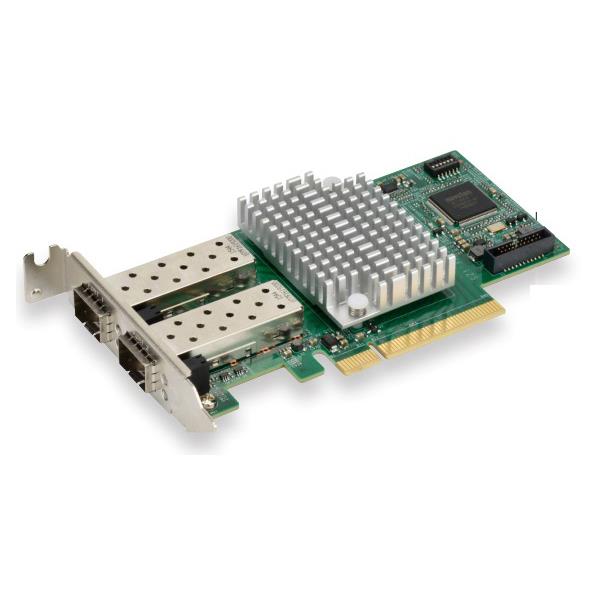

Supermicro AOC-STGF-I2S 2-Port 10Gb Ethernet Card with SFP+ Intel X710-BM2, Low-Profile
• Small Packet Performance
• Network Virtualization Offloads
• Dual SFP+ connectors - 10Gb/s per port
• PCI Express 3.0 x8 - Half-length low-profile
2-Port 10 Gigabit Ethernet Card with SFP+ Intel X710, Low-Profile
• 2 SFP+ Ports
• Intel Flow Director
• RoHS compliant 6/6
• NC-SI for IPMI support
• Small Packet Performance
• PCI Express 3.0 x8 (8GT/s)
• Network Virtualization Offloads
• Low-Profile Standard Short-length Form Factor
• Asset Management Features with Thermal Sensor
• Supports Both Direct Attach Copper and Fiber Cables
• Data Plane Developer Kit for Efficient Packet Processing
Extra Specifications for Supermicro AOC-STGF-I2S 2-Port 10Gb Ethernet Card with SFP+ Intel X710-BM2, Low-Profile
| Main Specifications | ||
| Device Type | Intel X710 10GbE controller | |
| Form Factor | Card PCB dimensions: 13.19cm x 5.51cm (5.19in x 2.71in) | |
| Dimensions (WxDxH) | Height of end brackets: standard 12cm (4.725in), low-profile 7.94cm (3.13in) | |
| Interface (Bus) Type | PCI Express 3.0 x8 (8GT/s) | |
| Weight | 184.5g (0.4068lb) | |
| Storage Controller | ||
| Connectivity Technology | Wired | |
| Miscellaneous | ||
| Features | Intel Flow Director | |
| Multiple queues: 1,536 Tx and Rx queues per port | ||
| Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities | ||
| MSI-X support | ||
| Cables Required | Fiber-optic cables (with required optional transceivers) | |
| SFP+ direct attach twinax copper cables up to 7m | ||
| Designed For | Supermicro server systems with low-profile or full-height PCI-E x8 expansion slot | |
| Supermicro motherboards with minimum PCI-E x8 expansion slot | ||
| Compliant Standards | RoHS Compliant 6/6 | |
| Networking | ||
| Management Features | Controller asset tags such as part number, revision, serial number, and MAC addresses | |
| Controller thermal sensor | ||
| NC-SI | ||
| Port Quantity | Dual SFP+ connectors - 10Gb/s per port | |
| Virtualization Features | Virtual Machine Load Balancing (VMLB) | |
| Next-Generation VMDq with up to 256 VMDq VMs supported | ||
| Advanced Packet Filtering | ||
| VXLAN and NVGRE support | ||
| SR-IOV with up to 128 virtual ports | ||
| Power | ||
| Comsumtion Operational | Typical: 5.63W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Software / System Requirements | ||
| OS Supports | Windows Server 2012 R2, 2012 R2 Core, 2012, 2012 Core, 2008 R2, 2008 R2 Core | |
| Linux Stable Kernel version 2.6.32/3x, RHEL 6.5 and RHEL 7.0, SLES 11 SP3 and SLES 12 | ||
| FreeBSD 9, 10 | ||
| UEFI 2.1, 2.3 | ||
| VMware ESXi 5.1 (Limited Functionality), ESXi 5.5 | ||
| System Requirements Details | NC-SI feature is only supported by Supermicro motherboards with corresponding NC-SI connectors | |
