- Intel PK8071305223000 Xeon CPU Max 9480 1.90GHz 56-Core Processor - Sapphire Rapids HBM

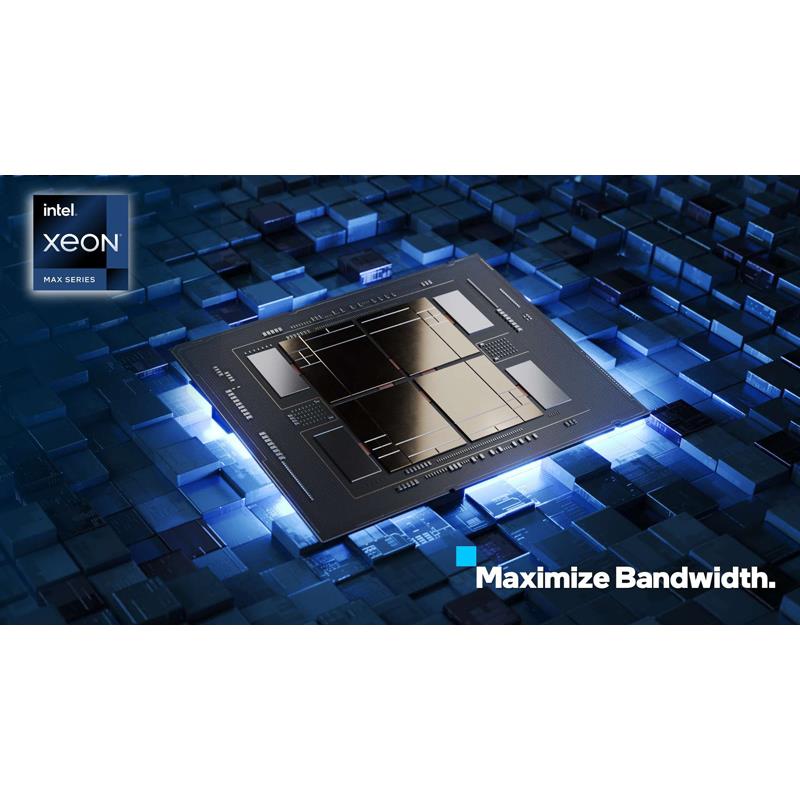

Intel PK8071305223000 Xeon CPU Max 9480 1.90GHz 56-Core Processor - Sapphire Rapids HBM
1.90GHz With high-bandwidth memory (HBM)
Ideal for high-performance computing and data analytics
Maximize bandwidth with the Intel Xeon CPU Max Series
64GB of High Bandwidth Memory, Cores: 56 / Threads: 112
Processor 1.90GHz Intel Xeon CPU Max 9480 56-Core (112 Threads) FCLGA4677 112.5MB Intel Smart Cache 7nm 350W For 2S systems only - OEM, Tray
Maximize bandwidth with the Intel Xeon CPU Max Series, the only x86-based processor with high-bandwidth memory (HBM). Architected to supercharge the Intel Xeon platform with HBM, Intel Max Series CPUs deliver up to 4.8x better performance compared to competition on real-world workloads, such as modeling, artificial intelligence, deep learning, high-performance computing (HPC), and data analytics.
Advanced Technologies
Intel Data Streaming Accelerator (DSA) 4 default devices
Intel Advanced Matrix Extensions (AMX)
Intel Speed Select Technology – Core Power
Intel Deep Learning Boost (Intel DL Boost)
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Turbo Boost Technology 2.0
Intel Hyper-Threading Technology
Intel Transactional Synchronization Extensions
Intel 64
Instruction Set Extensions: Intel AMX, Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
# of AVX-512 FMA Units 2
Security & Reliability
Intel Crypto Acceleration
Intel Platform Firmware Resilience Support
Intel Control-Flow Enforcement Technology
Intel Total Memory Encryption
Intel AES New Instructions
Intel Software Guard Extensions (Intel SGX) with Intel SPS
Default Maximum Enclave Page Cache (EPC) Size for Intel SGX 512 GB
Intel OS Guard
Intel Trusted Execution Technology
Execute Disable Bit
Intel Boot Guard
Intel Run Sure Technology
Mode-based Execute Control (MBEC)
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel VT-x with Extended Page Tables (EPT)
Extra Specifications for Intel PK8071305223000 Xeon CPU Max 9480 1.90GHz 56-Core Processor - Sapphire Rapids HBM
| Main Specifications | ||
| Device Type | Processor | |
| Processor Number | 9480 | |
| Clock Speed | 1.90 GHz | |
| Max Turbo Speed | 3.50 GHz | |
| Multi-Core Technology | 56 | |
| Number of Threads | 112 | |
| Manufacturing Process | 7 nm | |
| Intel UPI Speed | 16 GT/s | |
| QPI/UPI | UPI Links: 4 | |
| Product Collection | Intel Xeon CPU Max Series | |
| Code Name | Products formerly Sapphire Rapids HBM | |
| Vertical Segment | Server | |
| Processor | ||
| Cache | 112.5 MB | |
| Thermal | ||
| Design Power | 350 W | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 4 TB | |
| Memory Types | Up to DDR5 4800 MT/s 1DPC, Up to DDR5 4400 MT/s 2DPC | |
| Max # of Memory Channels | 8 | |
| Maximum High Bandwidth Memory (HBM) | 64 GB | |
| ECC Memory Supported | Yes | |
| Expansion Options | ||
| Scalability | 2S | |
| PCI Express Revision | 5 | |
| Max # of PCI Express Lanes | 80 | |
| Package Specifications | ||
| Sockets Supported | FCLGA4677 | |
| Package Carrier | E1C | |
| DTS Max | 82 °C | |
| Case Temperature | 64°C | |
| Package Size | 100mm x 56.5mm | |
| Miscellaneous | ||
| Use Conditions | Server/Enterprise | |
| Package Type | OEM, Tray | |
