| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB |
| Memory Capacity | 8 DIMM slots |
| Up to 1TB ECC LRDIMM, DDR4-2666MHz; Up to 512GB ECC RDIMM, DDR4-2666MHz |
| Memory Type | 2666/2400/2133/1866/1600 MT/s ECC DDR4 LRDIMM, RDIMM SDRAM 72-bit, 288-pin |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® C422 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Single LAN with Aquantia 5G LAN chip AQC108 |
| Single LAN with Intel® Ethernet Controller I210-AT |
| SATA | Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | ALC 1220 7.1 HD Audio |
| System BIOS |
| BIOS Type | 256MB UEFI |
| Management |
| Software | SuperDoctor® 5, IPMI2.0 , Watchdog |
| PC Health Monitoring |
| FAN | Fan speed control |
| PWM fan speed control |
| Overheat LED indication |
| 5x 4-pin fan headers (up to 5 fans) |
| LED | CPU / System Overheat LED |
| Other Features | WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, Voltage and Frequency Overclocking, Intel Smart Response Technology |
| Voltage | VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Monitors for CPU Cores, 5 (4-pin) |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| PECI |
| Support to monitor Supermicro AOC temperatures from IPMI or SD 5 |
| Product SKUs |

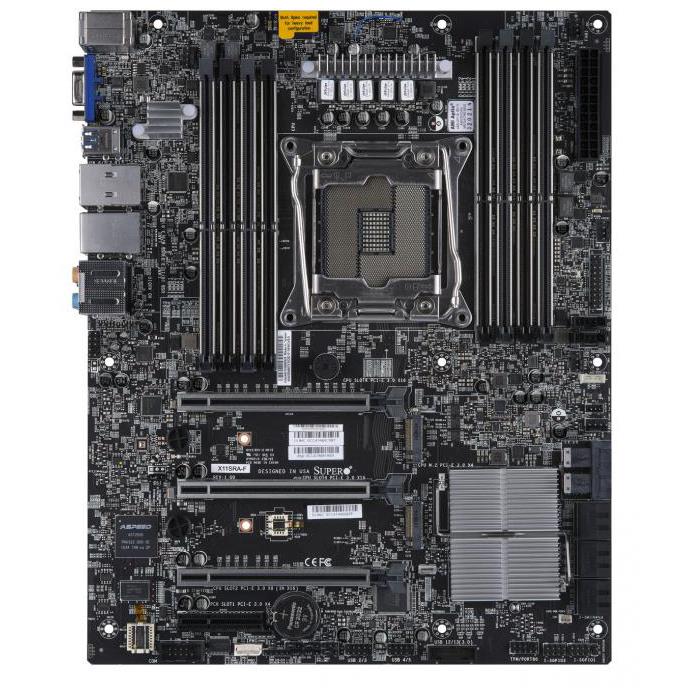

| Product SKUs | MBD-X11SRA-F |
| Physical Stats |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP |
| Intel® Xeon® W-2100 Processors , Intel® Xeon® W-2200 Processors |
| Input / Output |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) |
| 2 USB 3.2 Gen2 port(s) (2 type A) |
| Video Output | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x4 |
| 3 PCIe 3.0 x16, |
| ***3xPCIe3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCIe3.0x4 slots*** |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
