| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 4 DIMM slots |
| Up to 512GB ECC LRDIMM, DDR4-2933MHz; Up to 256GB ECC RDIMM, DDR4-2933MHz |
| Memory Type | 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® C422 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| SATA | Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |

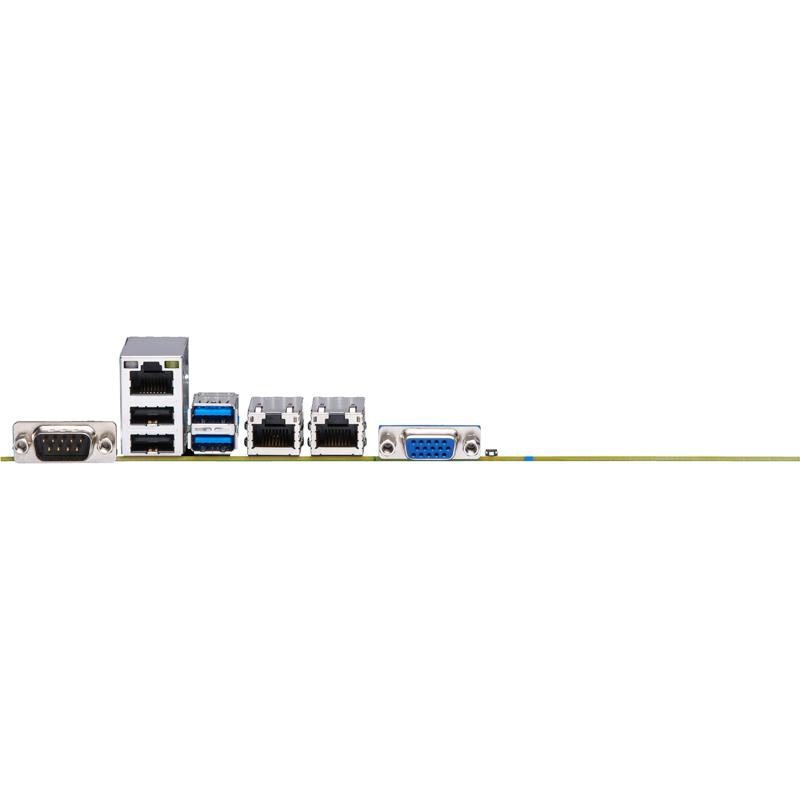

| Input / Output |
| SATA | 8 SATA3 (6Gbps) port(s) |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A) |
| Video Output | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| DOM | 2 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| SMBIOS 3.0 or later |
| BIOS Type | AMI UEFI |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection |
| Software | SuperDoctor® 5, SUM , KVM with dedicated LAN, IPMI2.0 , Watchdog |
| PC Health Monitoring |
| FAN | Fan speed control |
| PWM fan speed control |
| System level control |
| 6x 4-pin fan headers (up to 6 fans) |
| Overheat LED indication |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Suspend static indicator LED |
| Other Features | UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management |
| Voltage | VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 6 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V |
| Temperature | CPU thermal trip support |
| PECI |
| Thermal Control for 6 Fan Connectors |
| Product SKUs |

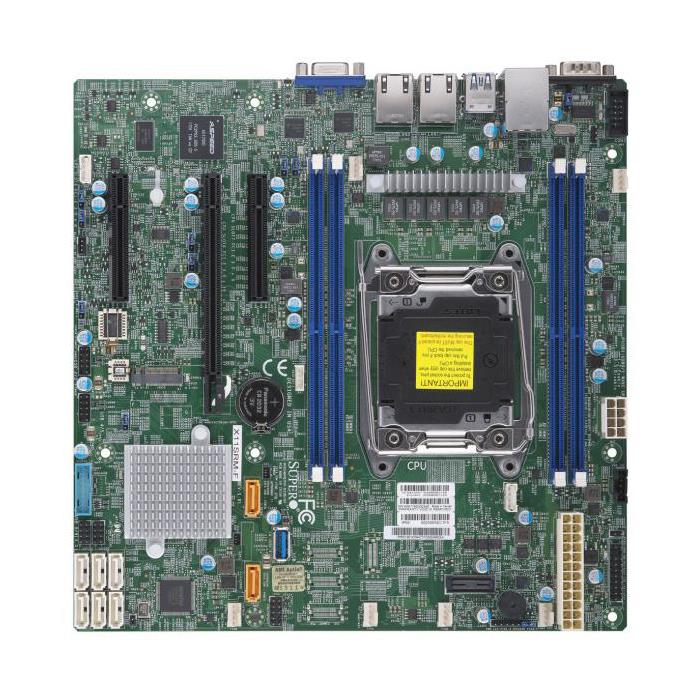

| Product SKUs | MBD-X11SRM-F |
| Physical Stats |
| Form Factor | microATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP |
| Intel® Xeon® W-2100 Processors , Intel® Xeon® W-2200 Processors |
| Core | Up to 18 cores, 36 threads |
| Note | W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro |
| To support 130W (or higher TDP) W-2200 CPUs, BIOS 2.0 & VRM update by Supermicro are required |
| Expansion Slots |
| PCIe | 2 PCIe 3.0 x8 |
| 1 PCIe 3.0 x16, |
| M.2 | Form Factor: 2280 |
| Key: M-Key |
| M.2 Interface: 1 PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
