• Optional 2 x fans for AOC cooling
• Support STD MB size up to E. ATX 12 x 13
• Support Dual and Single Intel & AMD processors
• 400W Redundant Power Supply Platinum with PMBUS

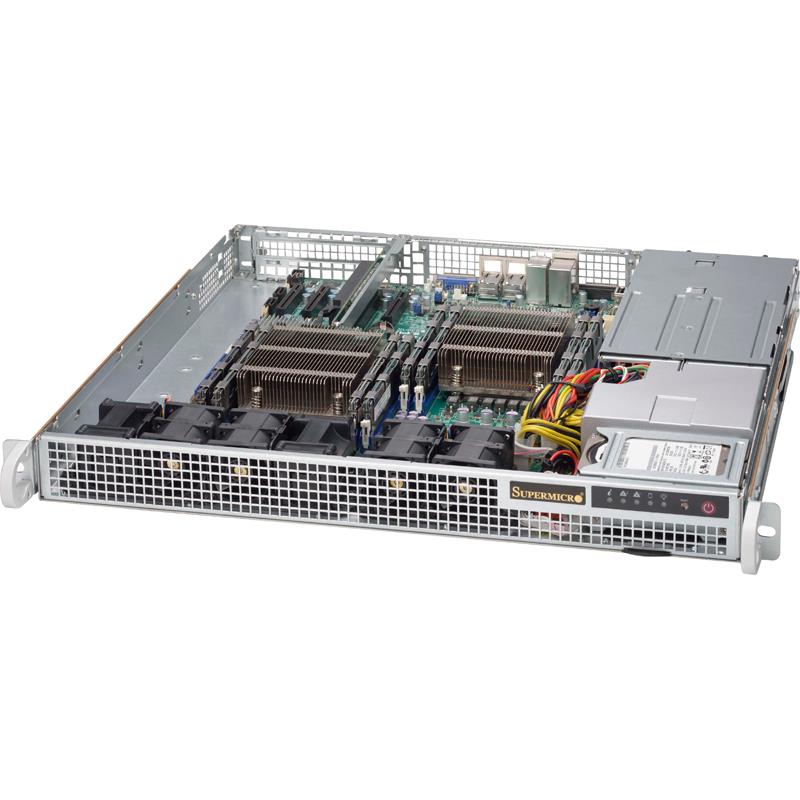

Rackmount 1U 400W Redundant Power Supply Platinum, for Motherboard up to 12in x 13in maximum size - 2x 2.5in internal Drive Bays, 1x Full-height AOC expansion slot, Mounting Rails Kit
1. Support STD MB, size up to E. ATX 12" x 13".
2. 2 x 2.5" fixed with bracket SAS or enterprise SATA HDD only recommended
3. 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
4. 1 full height expansion slot(s)
5. 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 400W with Input 100 - 240Vac | |
| 400W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 220 x 54.5 x 40.25 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 33A / Min: 0A (100Vac - 240Vac) | |
| +5Vsb | Max: 3A / Min: 0A | |
| Power Distributor | +5V Max: 25A | |
| +3.3V Max: 25A | ||
| -12V Max: 0.6A | ||
| PDB-PT514-2824 | ||
| O/P: 12V/54 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Product SKUs | ||
| Product SKUs | CSE-514-R407C | |
| Form Factor | ||
| Form Factor | Support STD MB, size up to E. ATX 12" x 13". | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 16.9" (429 mm) | |
| Gross Weight | 25.2 lbs (11.43 kg) | |
| Packaging (W x H x L) | 27" (686 mm) x 8" (203 mm) x 24" (610 mm) | |
| Available Color | No Paint | |
| Expansion Slots | ||
| Expansion Slots | 1x Full-height expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | SAS or enterprise SATA HDD only recommended | |
| 2x 2.5" fixed drive bay with bracket | ||
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| Fan Fail/System Over Heat LED | ||
| Systems Cooling | ||
| Fans | Optional 2x fans for AOC cooling | |
| 4x 40x56mm PWM fan(s) | ||
