- Supermicro H11SSL-C-B Motherboard ATX Socket SP3 Single AMD EPYC 7000 - BULK

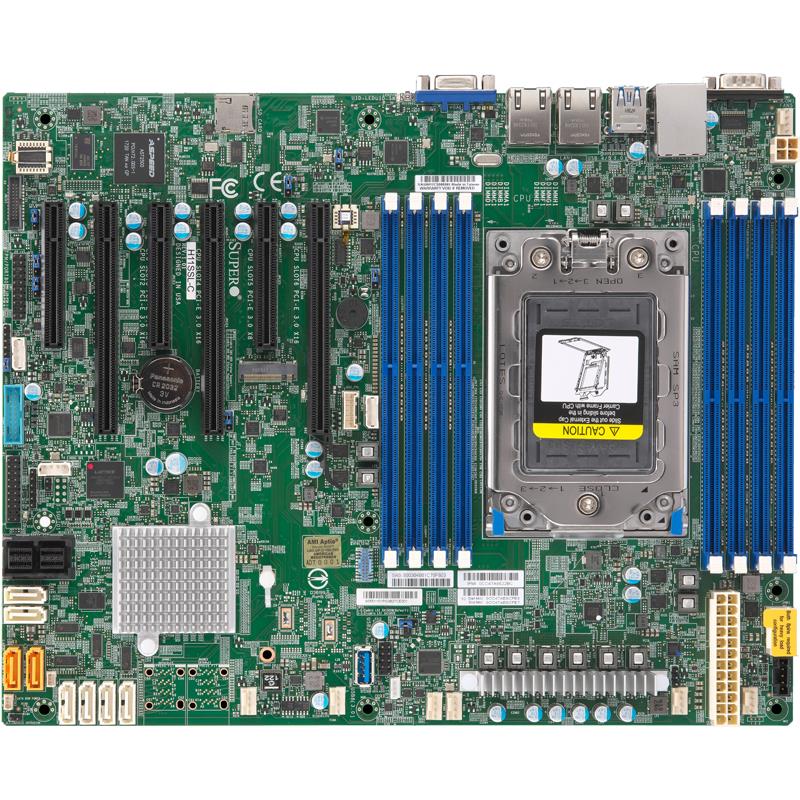

Supermicro H11SSL-C-B Motherboard ATX Socket SP3 Single AMD EPYC 7000 - BULK
• Broadcom 3008 SAS3 (12 Gbps) controller
• Supports AMD EPYC 7000-Series Processor
• Ideal for High Density Data Center applications
• 2x GbE LAN ports; 1x Dedicated IPMI LAN port
Motherboard ATX Socket SP3 Single AMD EPYC 7000, up to 1TB DDR4 Reg ECC 2666MHz memory in 8 DIMM slots, 8 SATA3 and Broadcom 3008 SAS3, 1 M.2, Dual Gigabit LAN ports, IPMI 2.0 + KVM, TPM 1.2 - MBD-H11SSL-C-B (Bulk, minimal of 10)
• Dual Gigabit Ethernet LAN Ports
• ASPEED AST2500 BMC graphics
• Single AMD EPYC 7000-Series Processor
• Expansion slots: 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8
• 8 SATA 3.0 + Broadcom 3008 for SAS3 ports; 1 M.2
• 7 PWM 4-pin Fans with tachometer status monitoring
• 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
• 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A); 4 USB 2.0 ports (2 rear + 2 via header)
Extra Specifications for Supermicro H11SSL-C-B Motherboard ATX Socket SP3 Single AMD EPYC 7000 - BULK
| Main Specifications | ||
| Device Type | Motherboard | |
| Dimensions (WxDxH) | 12" x 9.6" (30.5cm x 24.4cm) | |
| Form Factor | ATX | |
| Processor | ||
| Compatible Processors | Single AMD EPYC 7000-series Processor | |
| Compatible Socket | Socket SP3 | |
| System Memory (per Node) | ||
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB | |
| System Memory | ||
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 8 DIMM slots | |
| 8-channel memory bus | ||
| Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs | ||
| Cache Memory | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| Memory | ||
| Supply Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| 2 1GbE LAN via Intel I210 | ||
| SAS | Broadcom 3008 SAS3 (12 Gbps) controller - RAID 0, 1, 10 | |
| 8 SAS3 (12 Gbps) ports | ||
| TPM | 1 TPM 1.2 header | |
| USB | 4 USB 2.0 ports (2 rear + 2 via header) | |
| 5 USB 3.0 ports (2 rear, + 2 via header + 1 Type A) | ||
| Input / Output | ||
| SATA | SATA3 (6 Gbps) | |
| 8 SATA3 (6 Gbps) ports | ||
| Others | 1 COM port (rear) | |
| 2 SATA DOM power connector | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| VGA | 1 VGA port | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | PCI-Express: 3 PCI-E 3.0 x8 | |
| PCI-Express: 3 PCI-E 3.0 x16 | ||
| M.2: Form factor: 2260, 2280, 22110 | ||
| Expansion Slots (per node) | ||
| PCI-Express | M.2: Interface: PCI-E 3.0 x4 | |
| M.2: Support SATA devices | ||
| System BIOS | ||
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1 | |
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| Management | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN | |
| PC Health Monitoring | ||
| CPU | CPU switching voltage regulator | |
| Supports system management utility | ||
| VBAT | ||
| Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Dual Cooling Zone | ||
| Up to 7-fan status tachometer monitoring | ||
| Up to 7 4-pin fan headers | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| UID | ||
| Environmental Parameters | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| IC Temperature Sensing Logic | ||
| Thermal control for 7x Fan connectors | ||
| Operating Temperature | 10C to 35C (50F to 95F) | |
| Environmental Standards | ||
| Non-operating Relative Humidity | 5% to 95% (non-condensing) | |
| Non-operating Temperature | -40C to 70C (-40F to 158F) | |
| Environmental | ||
| Operating Relative Humidity | 8% to 90% (non-condensing) | |
