- Supermicro AS-2123BT-HNC0R 2U Barebone Four Hot-pluggable Nodes Dual AMD EPYC 7001/7002 Series Processors

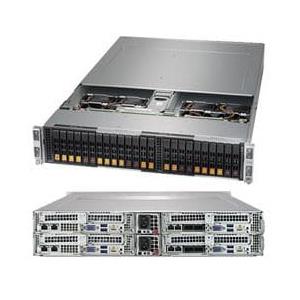

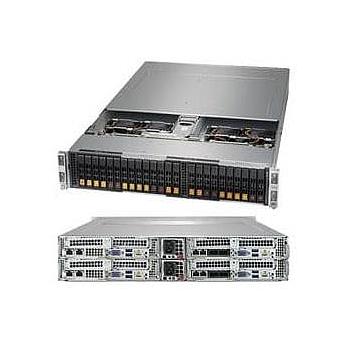

Supermicro AS-2123BT-HNC0R 2U Barebone Four Hot-pluggable Nodes Dual AMD EPYC 7001/7002 Series Processors
• Compute Intensive Application
• HPC, Data Center, Enterprise
• Server
• Hyperscale / Hyperconverged
Barebone 2U Rack Server, Four Nodes, Each Node Supports: Dual Socket SP3 AMD EPYC 7001/7002 Series Processors, Up to 4TB DDR4 Registered ECC 3200MHz SDRAM in 16 DIMM slots; 6 SAS3 or 4 NVMe+2 SAS3 Drive Bays; SAS3 support via Broadcom 3008; Optional SIOM Network; IPMI 2.0 + KVM with dedicated LAN; (MBD-H11DST-B + CSE-217BHQ+-R2K22BP2) - AS -2123BT-HNC0R
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 8 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).

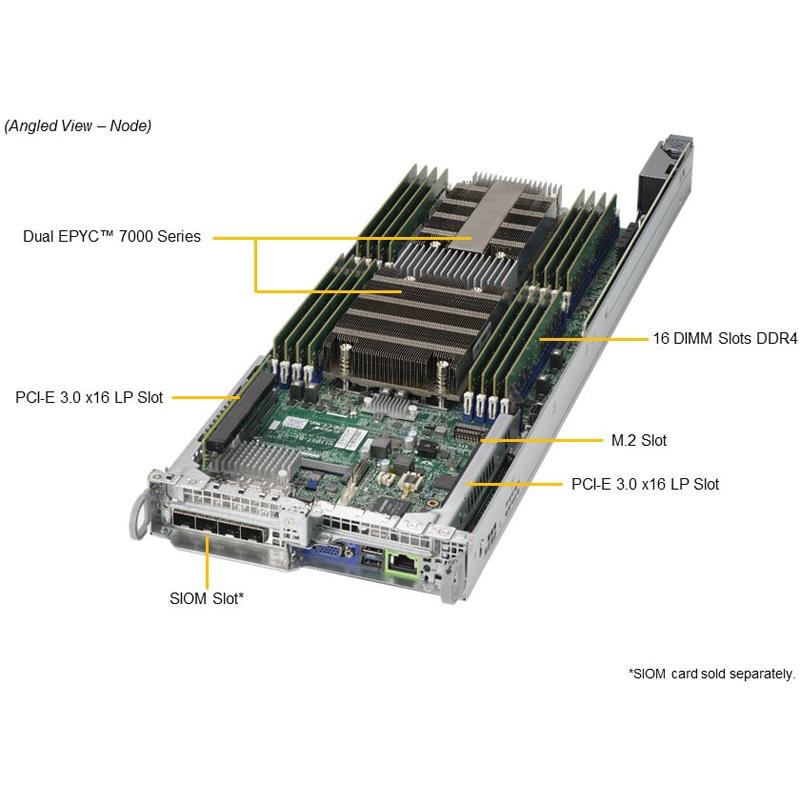

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors) 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 6 SAS3, or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays M.2 Interface : 1 SATA/PCI-E 3.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
6. SAS3 support via Broadcom 3008; IT mode
7. Video via Aspeed AST2500 BMC
8. 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2123BT-HNC0R 2U Barebone Four Hot-pluggable Nodes Dual AMD EPYC 7001/7002 Series Processors
| Product SKUs | ||
| AS -2123BT-HNC0R | A+ Server 2123BT-HNC0R ( Black ) | |
| Motherboard (per Node) | ||
| Motherboard (per Node) | Super H11DST-B | |
| Processor/Chipset (per Node) | ||
| CPU | Dual AMD EPYC™ 7001/7002 * series Processors ( * Board revision 2.x required ) | |
| Socket SP3 | ||
| Supports CPU TDP 200W / cTDP up to 200W ** | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| System Memory (per Node) | ||
| Memory Capacity | 16 DIMM slots | |
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| 8-channel memory bus | ||
| For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices (per Node) | ||
| Chipset | System on Chip | |
| SAS | SAS3 (12Gbps) via Broadcom 3008; IT mode | |
| Network | 1 PCI-E 3.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Provided via SIOM (optional) | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA port | |
| DOM | 1 Super DOM (Disk on Module) port | |
| Others | 1 COM port (header) | |
| 1 TPM 2.0 header | ||
| System BIOS (per Node) | ||
| BIOS Type | AMI 128Mb SPI Flash ROM | |
| Management (per Node) | ||
| Software | IPMI 2.0 | |
| KVM with dedicated LAN | ||
| SSM , SUM | ||
| SuperDoctor® 5 | ||
| Watch Dog | ||
| Power Configurations | ACPI / APM Power Management | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217BHQ+-R2K22BP2 | |
| Dimensions and Weight | ||
| Width | 17.68" (449mm) | |
| Height | 3.47" (88mm) | |
| Depth | 28.75" (730mm) | |
| Package | 24.33" (618mm) H x 9.57" (243mm) W x 45.08" (1145mm) D | |
| Weight | Net Weight: 54.5 lbs (24.7 kg) | |
| Gross Weight: 85 lbs (38.6 kg) | ||
| Available Colors | Black | |
| Front Panel (per Node) | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Network activity LEDs | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 2 PCI-E 3.0 (x16) Low-profile slots | |
| 1 SIOM card support (must bundle with network card) | ||
| M.2 | Interface: 1 SATA/PCI-E 3.0 x4 | |
| Form Factor: 2280, 22110 | ||
| Key: M-key | ||
| Drive Bays (per Node) | ||
| Hot-swap | 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5" Note: NVMe Gen4 drives may only operate at Gen3 speed | |
| System Cooling | ||
| Fans | 4 Heavy duty 8cm PWM fans | |
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1200W/1800W/1980W/2090/2200W | |
| Dimension (W x H x L) | 45 x 40 x 480 mm | |
| Input | 1200W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2090W: 230-240Vac / 50-60Hz | ||
| 2090W: 180-220Vac (for UL/cUL only) | ||
| 2200W: 220-240Vac (for UL/cUL only) | ||
| 2090W: 230-240Vdc (for CCC only) | ||
| +12V | Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 100A / Min: 0A (100-127Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) | ||
| Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) | ||
| Max: 174.17A / Min: 0A (230-240Vdc, CCC only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F) * Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details. | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H11DST-B | 4 | Super H11DST-B Motherboard | |
| Motherboard / Chassis | CSE-217BHQ+-R2K22BP2 | 1 | 2U Chassis | |
| Backplane | BPN-ADP-6S3008N4-1UB | 4 | Big Twin 1U hybrid ADP supporting 6x SAS3 and 4x NVMe | |
| Backplane | BPN-SAS3-217BHQ-N4 | 1 | 2U 4-Node 24-Port Backplane Supports 2x2.5\" SATA3/SAS3 SSD/HDD and 4x2.5\" SATA3/SAS3/NVMe Stoage Media per Node | |
| Drive Tray(s) | MCP-220-00141-0B-BULK | 8 | Black Gen3 hot-swap 2.5 inch HDD tray with lock improved EMI | |
| Drive Tray(s) | MCP-220-00144-0B-BULK | 16 | Black Gen3 hot-swap 2.5 inch HDD tray with lock, orange tab | |
| Parts | MCP-240-21730-0N | 1 | 217B BigTwin type I (Impact) BPN retention bkt w/ foam assy | |
| Riser Card | RSC-P-6 | 4 | RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS | |
| Riser Card | RSC-R1UTP-E16R | 4 | 1U RHS TwinPro Riser card with one PCI-E x16 slot | |
| Software | SFT-OOB-LIC | 4 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0062PM | 4 | 1U Passive Front CPU Heat Sink w/ a 30-mm Wide Middle Air Channel for AMD H11 2U4N Big Twin Series Servers | |
| Heatsink / Retention | SNK-P0062PW | 4 | 1U Proprietary 93-mm Wide Passive Rear CPU Heat Sink for AMD H11 2U4N Big Twin Series Servers | |
| Power Supply | PWS-2K22A-1R | 2 | 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48 | |
| FAN | FAN-0183L4 | 4 | 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers |
