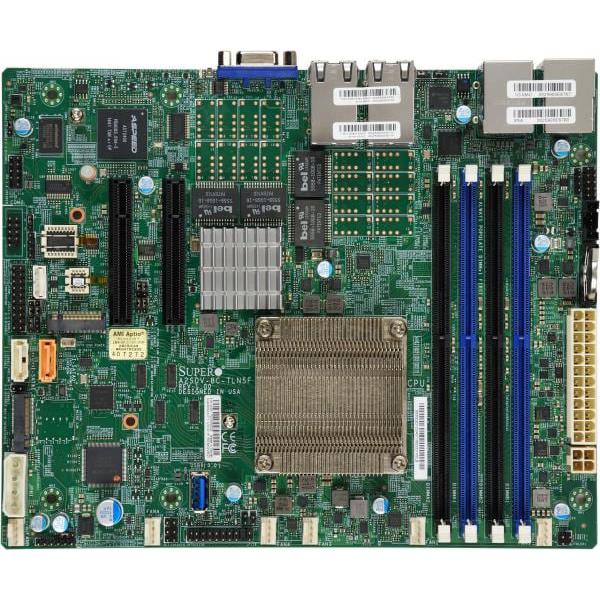

| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 4 DIMM slots |
| Up to 256GB ECC RDIMM, DDR4-2133MHz; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz |
| Memory Type | ECC/non-ECC DDR4 RDIMM Unbuffered (Operating speed up to 2133)2400/2133/1866/1600 (Operating speed up to 2133) |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Single LAN with Intel® i210 Gigabit Ethernet Controller |
| Quad LAN with 10GBase-T with Intel® X557 |
| SATA | SoC controller for 2 SATA3 (6 Gbps) ports |
| IPMI | ASPEED AST2400 BMC |
| Graphics | 1 ASPEED AST2400 BMC port(s) |
| Input / Output |
| LAN | 4 RJ45 10GBase-T ports |
| 1 RJ45 GbE port (IPMI Shared LAN) |
| USB | 2 USB 2.0 port(s) (2 via header) |
| 5 USB 3.2 Gen1 port(s) (4 rear; 1 type A) |
| Video Output | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| DOM | 1 Super DOM (Disk on Module) ports |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | UEFI 2.4 |
| SMBIOS 2.7.1 |
| BIOS Type | AMI UEFI |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection |
| Software | SuperDoctor® 5, NMI, IPMI2.0 , Watchdog |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| PC Health Monitoring |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) |
| LED | UID/Remote UID |
| Other Features | WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector |
| Voltage | VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V |
| Temperature | CPU thermal trip support |
| Product SKUs |
| Product SKUs | MBD-A2SDV-8C-TLN5F |
| Physical Stats |
| Form Factor | Flex ATX |
| Dimension | 9" x 7.25" (22.86cm x 18.42cm) |
| Processor |
| CPU | Intel® Atom® Processor C3708 |
| Single Socket FCBGA-1310 supported, CPU TDP supports Up to 17W TDP |
| Core | Up to 8 cores, 8 threads / 16MB Cache |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8 |
| Option for Slot 6 or Slot 7 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
