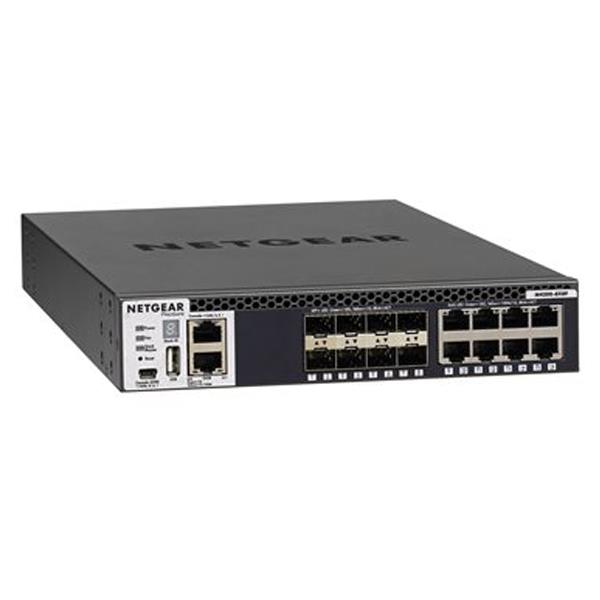

NETGEAR XSM4316S-100NES Stackable Managed Switch with 16x10G - M4300-8X8F
• Remote Switch Port Analyzer; ARP support
• Out-of-band 1G Ethernet management port
• 8-port (RJ45); 8-port (SFP+) all independent
• Half-width form factor 1 & 2 unit rack mount kit
Stackable Managed Switch with 16x10G including 8x10GBASE-T and 8xSFP+ Layer 3
• The M4300-8X8F half-width switch provides 8-port 10GBASE-T and 8-port 10GBASE-X SFP+
• All (16) 10G ports are independent and 1G backward compatible for progressive transition to 10G speeds
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover for highest availability (HA)
• With 320Gbps non-blocking fabric, M4300-8X8F delivers L2/L3/L4 and IPv4/IPv6 rich services for virtualization (Auto-iSCSI prioritization), server / storage interconnect and SMB core applications
• Two half-width M4300 10GbE models can be paired in a single rack space for redundant top-of-rack and active-active server installations
• Lifetime hardware warranty, Lifetime Next Business Day and Lifetime online technical chat for investment protection and post-sales support
Extra Specifications for NETGEAR XSM4316S-100NES Stackable Managed Switch with 16x10G - M4300-8X8F
| Main Specifications | ||
| Device Type | Switch - 16 ports - L3 - managed - stackable | |
| Enclosure Type | Rack-mountable 1U | |
| Miscellaneous | ||
| Authentication Method | RADIUS, TACACS+ | |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.3az | |
| Features | ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, front to back airflow, STP Root Guard, IPv4 support, LACP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), dynamic ARP protection, IP source guard, Bridge protocol data unit (BPDU), LISP Across Subnet Mode (ASM), Source-Specific Multicast (SSM) | |
| Networking | ||
| Port Quantity | 8 | |
| Performance | Switching capacity: 320 Gbps | |
| Port Type | 8 x 10/100/1000/10000 | |
| 8 x 10 Gigabit SFP+ | ||
| Remote Management Protocol | SNMP, Telnet, HTTPS, SSH, CLI | |
| Routing Protocol | OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2 | |
| Expansion / Connectivity | ||
| Interfaces | 8 x 10GBase-T RJ-45 | |
| 8 x 10GBase-X SFP+ | ||
| 1 x management (Gigabit LAN) RJ-45 | ||
| 1 x serial (RS-232) RJ-45 | ||
| 1 x console (mini-USB) | ||
| 1 x USB Type A | ||
| Power | ||
| Power Device | Internal power supply - Provided 250 Watt | |
| Voltage Required | AC 120/230 V | |
