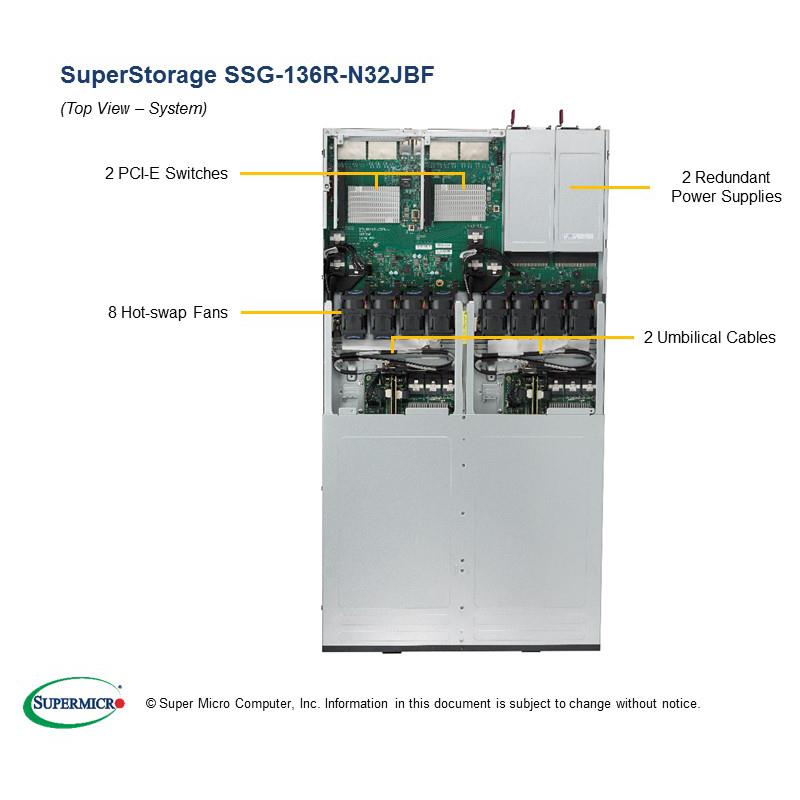

Supermicro SSG-136R-N32JBF Server Chassis 1U Rackmount
• High Throughput Ingest
• High Density Hot Storage
• HPC / Data Analytics
• Media/Video Streaming
• Content Delivery Network (CDN)
• Big Data Top of Rack Storage
Barebone 1U JBOD Red. Power for 32 NVMe drives, JBOF switch Architecture, 4 PCIe x16 IO ports, 2 PCIe x16 slots, IPMI 2.0, 1000W Redundant power supply
To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to 8 drives).
1. Supports 32 Hot-swap NVMe SSDs
2. 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
3. IPMI management with dedicated LAN
4. 1000W Redundant Power Supplies Titanium Level (96%)
Manuals Quick Reference Guide NVMe Options BMC Firmware
Extra Specifications for Supermicro SSG-136R-N32JBF Server Chassis 1U Rackmount
| Drive Bays | ||
| Hot-swap | 32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled) | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| Reset button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| System Status LED | ||
| SSD Status LED | ||
| Drive activity LEDs | ||
| System Cooling | ||
| Fans | 8x 40mm Hot-swap cooling fans | |
| Power Supply | ||
| Certification | Titanium Level | |
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| Dimension (W x H x L) | 73.5 x 40 x 185 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Product SKUs | ||
| Product SKUs | SSG-136R-N32JBF (Black) | |
| System Overview | ||
| Form Factor and Storage | 1U Form factor | |
| 32x 2.5" drive slots | ||
| Switch Architecture | JBOF Switch | |
| Networking Port | 2 RJ45 Dedicated IPMI LAN ports | |
| Management Interface | Support for IPMI v.2.0 | |
| Operating Environment / Compliance | ||
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-136TS-R1K04JP-U2 | |
| Dimensions and Weight | ||
| Width | 17.26" (438.4mm) | |
| Height | 1.71" (43.6mm) | |
| Depth | 31.95" (811.7mm) | |
| Weight | Net Weight: 49 lbs (22.2kg) | |
| Gross Weight: 65 lbs (29.5kg) | ||
| Expansion Slots / Ports | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots | |
| 4 PCI-E 3.0 x16 Mini-SAS HD ports | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Chassis | CSE-136TS-R1K04JP-U2 | 1 | 1U 32-Bay JBOF chassis with U.2 sleds 1000W Titanium PWS | |
| Backplane | BPN-NVME3-136NB-L | 2 | LHS daughter card for 1U JBOF SSG-136R-N32JBF, support 8x NVMe devices | |
| Backplane | BPN-NVME3-136NB-R | 2 | RHS daughter card for 1U JBOF SSG-136R-N32JBF, support 8x NVMe devices | |
| Backplane | BPN-NVME3-136PL | 2 | JBOF Switch Board for 1U SSG-136R-N32JF dense storage system | |
| Backplane | BPN-NVME3-136PL-J | 1 | JBOF/NVMf controller for 1U SSG-136R-N32JBF dense storage system | |
| Manual | MNL-2052-QRG | 1 | SSG-136R-N32JBF Quick Reference Guide,HF | |
| SFT-DCMS-SINGLE | 1 | Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF | ||
| Power Supply | PWS-1K04A-1R | 2 | 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm) | |
| FAN 1 | FAN-0188L4 | 8 | 40x40x56 mm, 23.3K-20.3K RPM, Hot-swappable Counter-rotating |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-SAST-1035-1 | $ 113.50 | 0 | MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHS | ||
| Cable | CBL-SAST-1036-1 | $ 156.50 | 0 | MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2M | ||
| Cable | CBL-SAST-1037-1 | $ 184.00 | 0 | MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,28AWG,RoHS | ||
| Motherboard | Ultra (X11DPU) | 0 | Compatible motherboards | |||
| Motherboard | BigTwin (X11DPT-B) | 0 | - | |||
| Motherboard | WIO (X11DDW-L) | 0 | - | |||
| Motherboard | AMD (H12DSU-iN) | 0 | - | |||
| Add-On Card | AOC-SLG3-4X4P | $ 298.50 | 0 | LP, PCIe3 x16, 4 Ext MiniSAS-HD port switch NVMe card for JBOF |
