| Motherboard |
| Motherboard | Super X11SDV-4C-TLN2F |
| Processor/Cache |
| CPU | Intel® Xeon® processor D-2123IT , CPU TDP support 60W |
| Cores / Cache | 4 Cores, 8 Threads |
| System Memory |
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM |
| Up to 256GB DDR4 ECC RDIMM |
| 4 DIMM slots |
| Memory Type | 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM |
| Operating speed up to 2400MHz |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB |
| LRDIMM: 16GB, 32GB, 64GB, 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| SATA | SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe |
| Network Controllers | Dual 10GBase-T LAN, SoC |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | Aspeed AST2500 BMC |
| Input / Output |
| SATA | 1 SATA3 (6Gbps) port (SATA/SAS HDD/SSD) |
| LAN | 1 Dedicated IPMI LAN port |
| 2 10GBase-T LAN ports |
| USB | 2 USB 3.0 ports (rear) |
| Display | 1 VGA port |
| TPM | 1 TPM 2.0 header |
| Chassis |
| Form Factor | Compact |
| Model | CSE-E300 |
| Dimensions |
| Width | 10.43" (264.8mm) / 15" (381mm) - pkg. |
| Height | 1.7" (43mm) / 10.87" (276mm) - pkg. |
| Depth | 8.9" (226mm) / 5.59" (142mm) - pkg. |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 3.45 lbs (1.56 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots |
| PCI-Express | 1 onboard OCuLink port (or 1 PCI-E 3.0 x4 NVMe) |
| 1 PCI-E 3.0 x8 (LP) open slot |
| Drive Bays |
| Internal | 1 Internal 2.5" drive bay |
| System Cooling |
| Fans | 3x 40x28mm 4-PIN PWM Fan |
| Power Supply |
| Power Supply | 150W Lockable DC power adapter (adapter cannot be mounted by the kit) |
| System BIOS |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| BIOS Features | UEFI 2.4 |
| ACPI 5.0 |
| USB Keyboard support |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| Hardware BIOS Virus protection |
| SMBIOS 2.8 |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| Power Configurations | +12V DC Power Input |
| ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| CPU thermal trip support for processor protection |
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL |
| Fan | Fans with tachometer status monitoring |
| Status monitor for speed control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Product SKUs |

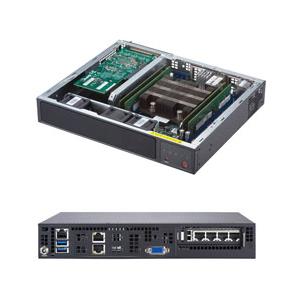

| Product SKUs | SuperServer E300-9D (Black) |
