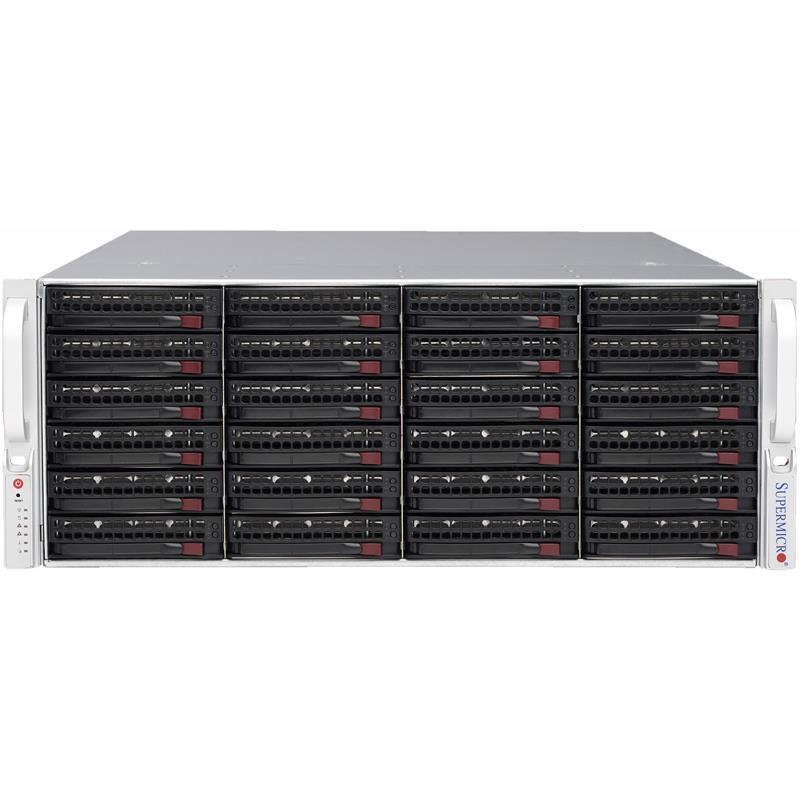

| Front Panel |
| Buttons | Power On/Off button |
| System Reset Button |
| LEDs | Unit Identification (UID) LED |
| Power Status LED |
| 2 Network Activity LEDs |
| HDD activity LED |
| Fan Fail/System Over Heat LED |
| Operating Environment (System) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply |
| Certification | Titanium Certified |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Power Efficiency | 96% |
| Total Output Power and Input | 1200W with Input 200 - 240Vac |
| 1000W with Input 100 - 127Vac |
| 1200W with Input 200 - 240Vdc |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| +12V | Max: 83A (100Vac - 127Vac) |
| Max: 100A (200Vac - 240Vac) |
| Max: 100A (200 - 240) |
| +5Vsb | Max: 4A / Min: 0A |
| Power Distributor | O/P: 12V/135 |
| -12V Max: 0.6 |
| +3.3V Max: 24 |
| PDB-PT846-2824 |
| +5V Max: 50 |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | CCC |
| BSMI |
| CE/EMC |
| FCC class A |
| UL/CUL |
| UL/CB |
| Product SKUs |
| Product SKUs |
| Form Factor |
| Form Factor | 4U chassis support for max. motherboard size - EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10") |
| Processor Support |
| Processor Support | Single and Dual Intel® and AMD processors |
| Dimensions |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 26" (660 mm) |
| Gross Weight | 75 lbs (34.02 kg) |
| Packaging (W x H x L) | 34.3" (871 mm) x 26.5" (673 mm) x 13.5" (343 mm) |
| Available Color | Black |
| Expansion Slots |
| Expansion Slots | 7 full-height & full-length expansion slot(s) |
| Drive Bays |
| Drive Bays | 24 x 3.5" hot-swap drive bay |
| Backplane |
| Backplane | 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD |
| Peripheral Drives |
| Peripheral Drives | Optional 1 x 3.5" internal fixed drive bay |
| Optional 2 x 2.5" hot-swap drive bay |
| Optional 2 x 2.5" internal fixed drive bay |
| Systems Cooling |
| Fans | 2 x 80mm rear hot-swap exhaust PWM fan(s) |
| 3 x 8cm hot-swap redundant PWM cooling fan(s) |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
