Supermicro SYS-6029BT-HNC0R Twin Barebone Dual CPU, 4-Node
• Compute Intensive Application
• HPC, Data Center, Enterprise
• Server
• Hyperscale / Hyperconverged
Barebone 2U Rackmount SuperServer, 4 Hot-pluggable Nodes, Each node supports, Dual Intel Xeon Scalable Processors, Intel C621 chipset, Up to 3TB DDR4 ECC 2666Mhz memory Broadcom 3008 SAS3 controller, 3 Hot-swap 3.5in drive bays, Must bundle with at least one SIOM network card, Redundant 2200W Power Supply (CSE-827BHQ+-R2K22BP + MBD-X11DPT-B)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).

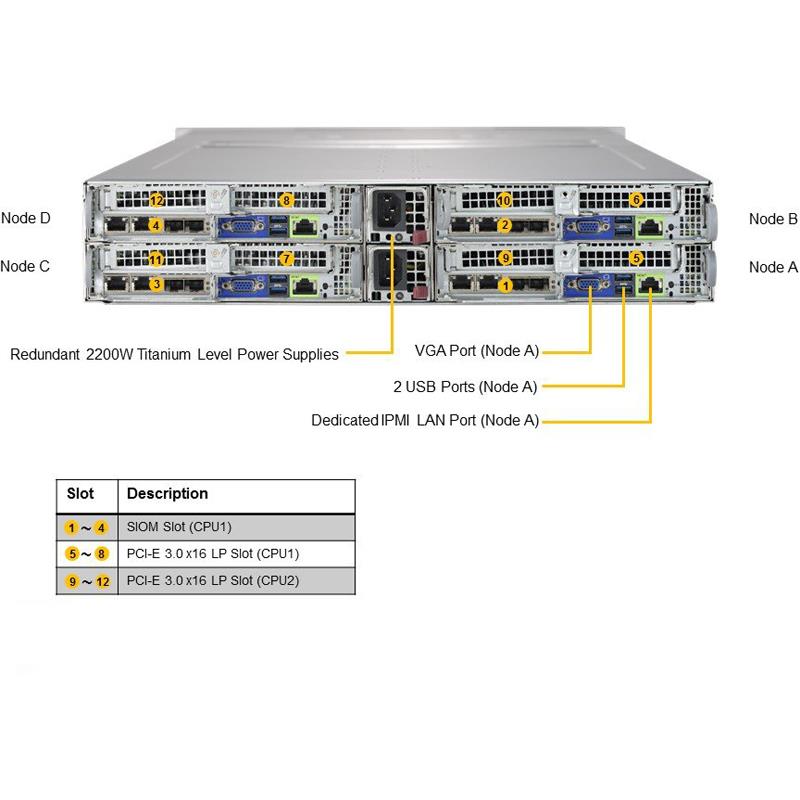

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. 3 Hot-swap 3.5" NVMe/SAS3 drive bays; 2 M.2 SATA3 or NVMe support
5. SAS3 support via Broadcom 3008; IT mode
6. 1 Carrier Card slot (M.2 support)
7. IPMI 2.0 + KVM with dedicated LAN
8. Video via Aspeed AST2500 BMC
9. 4 Heavy duty 8cm PWM fans with air shroud
10. 2200W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-6029BT-HNC0R Twin Barebone Dual CPU, 4-Node
| Motherboard | ||
| Motherboard | Super X11DPT-B | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008; IT mode | |
| Network | Must bundle with at least one SIOM network card | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA port | |
| DOM | 1 Super DOM (Disk on Module) port | |
| Others | M.2 and SATA DOM for boot drive only | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-827BHQ+-R2K22BP | |
| Dimensions and Weight | ||
| Width | 17.6" (447mm) | |
| Height | 3.47" (88mm) | |
| Depth | 30.11" (765mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Gross Weight: 86.5 lbs (39.24 kg) | |
| Net Weight: 56 lbs (25.4 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 2 PCI-E 3.0 (x16) Low-profile slots | |
| 1 SIOM card support (must bundle with network card) | ||
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 3 Hot-swap 3.5" NVMe/SAS3 drive bays Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. | |
| M.2 | 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B | |
| System Cooling | ||
| Fans | 4 Heavy duty 8cm PWM fans with air shroud | |
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1200W/1800W/1980W/2090/2200W | |
| Dimension (W x H x L) | 45 x 40 x 480 mm | |
| Input | 1200W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2090W: 230-240Vac / 50-60Hz | ||
| 2090W: 180-220Vac (for UL/cUL only) | ||
| 2200W: 220-240Vac (for UL/cUL only) | ||
| 2090W: 230-240Vdc (for CCC only) | ||
| +12V | Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 100A / Min: 0A (100-127Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) | ||
| Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) | ||
| Max: 174.17A / Min: 0A (230-240Vdc, CCC only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W * | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization. | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6029BT-HNC0R (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Fan | FAN-0162L4 | 4 | 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan | |
| Parts | MCP-240-82718-0N | 1 | SC827B BigTwin type I (Impact) BPN retention bkt assy | |
| Air Shroud | MCP-310-21724-0B | 4 | Bigtwin 2U4N plastic air shroud (2pcs) for Cascade lake MB | |
| Power Supply | PWS-2K22A-1R | 2 | 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48 | |
| Riser Card | RSC-P-6 | 4 | RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS | |
| Riser Card | RSC-R1UTP-E16R | 4 | 1U RHS TwinPro Riser card with one PCI-E x16 slot | |
| Heatsink / Retention | SNK-P0067PS | 4 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0067PSM | 4 | 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Card(s) | AOC-S40G-i2Q | $ 447.00 | 0 | Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 | ||
| Carrier Card(s) | AOC-SMG2-2TM2 | $ 111.00 | 0 | 2x SATA M.2 RAID 1 adapter for BigTwin,HF,RoHS | ||
| Carrier Card(s) | AOC-SMG3-2H8M2-B | $ 75.50 | 0 | 2x Hybrid NVMe/SATA M.2 carrier for BigTwin,HF,RoHS | ||
| Network Card(s) | AOC-STG-i2T | $ 325.50 | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 | ||
| Network Card(s) | AOC-STGN-i1S | $ 194.00 | 0 | Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN | ||
| Network Card(s) | AOC-STGN-i2S | $ 325.50 | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | ||
| Intel VROC RAID Key | AOC-VROCPREMOD | $ 332.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| TPM security module | AOM-TPM-9670H-S | $ 75.00 | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor | ||
| TPM security module | AOM-TPM-9671H-S | $ 76.50 | 1 | SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor | ||
| Fan | FAN-0191L4 | $ 66.50 | 0 | 80x80x38 mm, 14.9K RPM, Non-hot-swappable Middle Cooling Fan (Optimal for computational performance) | ||
| 3.5" to 2.5" Converter Tray | MCP-220-00140-0B | $ 51.00 | 0 | Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab |
| Warranty: | 3 years labor, 1 year parts, 1 year advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
