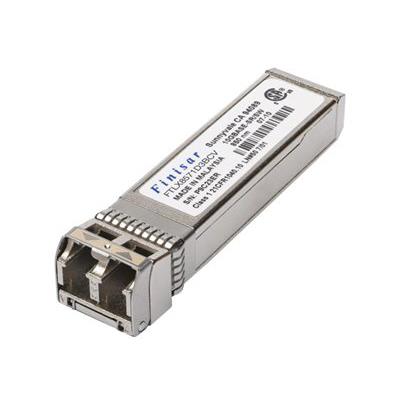

Supermicro AOM-TSR-FS SFP+ transceiver module for short range Fibre cables (up to 400m/OM4), 10G/1G, 850nm, MMF, LC

• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• Receiver limiting electrical interface
• Wide commercial temperature range

SFP+ transceiver module for short range Fibre cables (up to 400m/OM4), 10G/1G, 850nm, MMF, LC

• Optical Transceiver
• Supermicro Certified
• Perfect for 10G/1G Ethernet Long Distance Fiber Applications

Main Specifications
Device Type	SFP+ transceiver module
Interface Type	Plug-in module - Duplex LC
Storage Controller
Connectivity Technology	Wired
Data Transfer Rate	10.3 Gbps
Networking
Data Link Protocol	GigE, 10 GigE
Max Transfer Distance	1310 ft
Optical Wave Length	850 nm
Environmental Parameters
Max Operating Temperature	158 F
Min Operating Temperature	32 F
Expansion / Connectivity
Interfaces	1 x Ethernet 10GBase-SR/10GBase-SW/1000Base-SX - LC multi-mode x 2
Miscellaneous
Application Supports	1000BASE-SX 1G Ethernet
	10GBASE-SR/SW 10G Ethernet
Cables Type	1000Base-SX, 10GBase-SR, 10GBase-SW
Compliance	RoHS and REACH compliant, details available upon request
Features	Hot-pluggable SFP+ footprint, Optimal power dissipation, RoHS-6 compliant (lead-free), Maximum link length, Uncooled VCSEL laser, Receiver limiting electrical interface, Duplex LC connector, Built-in digital diagnostic functions, Wide commercial temperature range

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
