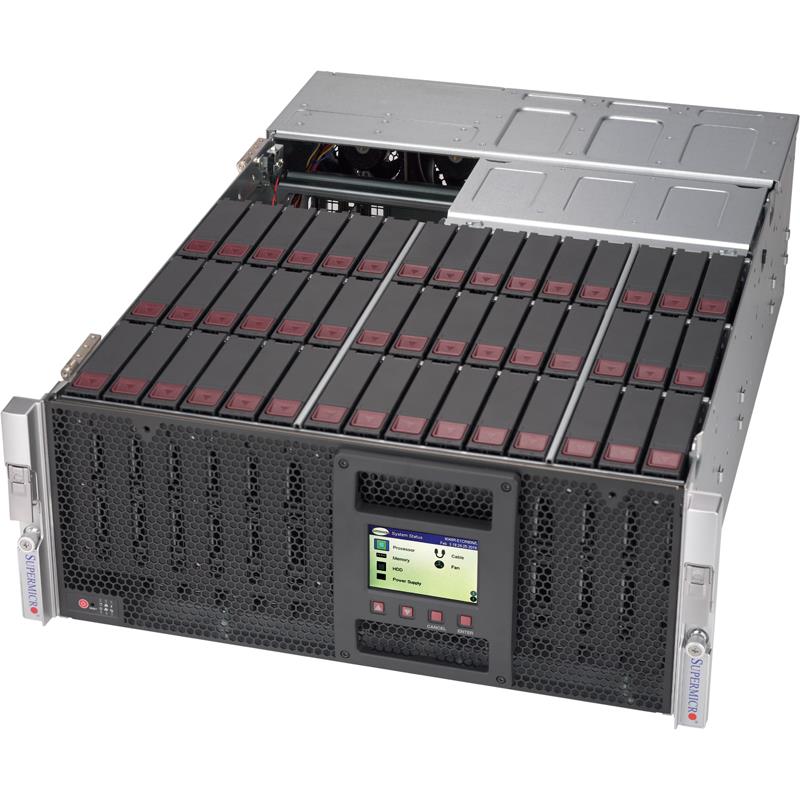

Supermicro CSE-946LE1C-R1K66JBOD Server Chassis 4U Rackmount

Supermicro CSE-946LE1C-R1K66JBOD Server Chassis 4U Rackmount

• 4x Mini-SAS HD ports (Internal/External)
• High density Archive Storage Applications
• Tool-less HDD tray with HDD LED indicator
• 1600W redundant PS; Platinum level w/ PMBus & I2C

Rackmount 4U with up to 45x 3.5in Hot-swap SAS/SATA drive Bays with Redundant Power Supplies (Black) SC946LE1C-R1K66JBOD For quality assurance purpose, the product is required to be sold as complete system to ith HDDs fully integrated and tested. Please contact us for validated HDD.

Contact us for volume discounts

    This combination does not exist.

    PreOrder
    203 lb
    Email For Price

    • Tool-less HDD tray with HDD LED indicator
    • Optimized cooling w/ 5x 80x38mm rear hot-swap fans
    • Support NTP for time synchronization & RTC battery backup
    • Support front LCD panel for system status & error info (Option)
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
    • Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • Ideal for Cloud backup, data Replication or High density Archive Storage Applications
    • Extreme High Density and High Capacity Storage Chassis support 45 x 3.5 Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
    • 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

    Extra Specifications for Supermicro CSE-946LE1C-R1K66JBOD Server Chassis 4U Rackmount

    Main Specifications
    Device TypeSuperChassis
    Dimensions (WxDxH)Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 26" (660 mm)
    Palletized Packing (W x H x L): 28" (711 mm) x 23" (584 mm) x 42.5" (1080 mm)
    ColorBlack
    Form Factor4U JBOD storage chassis
    Front Panel
    ButtonsPower On/Off button, Unit Identification (UID) button
    LEDs1 Network Activity LEDs, Power Status LED, Power Fail LED, System Information LED
    Drive Bays
    Hot-swap45 x 3.5" hot-swap SAS/SATA drive bay with SES3
    SAS/SATA Backplane
    SAS/SATA Backplane45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD
    System Cooling
    Fans5 x 80mm rear hot-swap exhaust PWM fan(s)
    Environmental
    Operating Relative Humidity8% - 90% (non-condensing)
    Environmental Parameters
    Operating Humidity5 - 95% (non-condensing)
    Environmental Standards
    Non-operating Temperature-40C - 60C (-40F - 140F)
    Operating Environment (System)
    Operating Temperature Range5C - 35C (41F - 95F)
    Power Supply
    Certification80PLUS Platinum Certified
    Power Supply1600W redundant power supply, Platinum level with PMBus & I2C
    2x PWS-1K66P-1R
    Regulatory (Power Supply)
    Power Supply Safety / EMCBSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL
    Parts List - (Items Included)
    Backplane1x BPN-SAS3-946LEL1
    Parts List
    Cables1x CBL-CDAT-0601, 1x CBL-CDAT-0716, 1x CBL-NTWK-0587, 2x CBL-PWCD-0578, 1x CBL-PWEX-0863, 1x CBL-PWEX-1024, 4x CBL-SAST-0834
    Standard Parts List
    Control Board1x CSE-PTJBOD-CB3
    Power Distributor1x PDB-PT946S-L824

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
