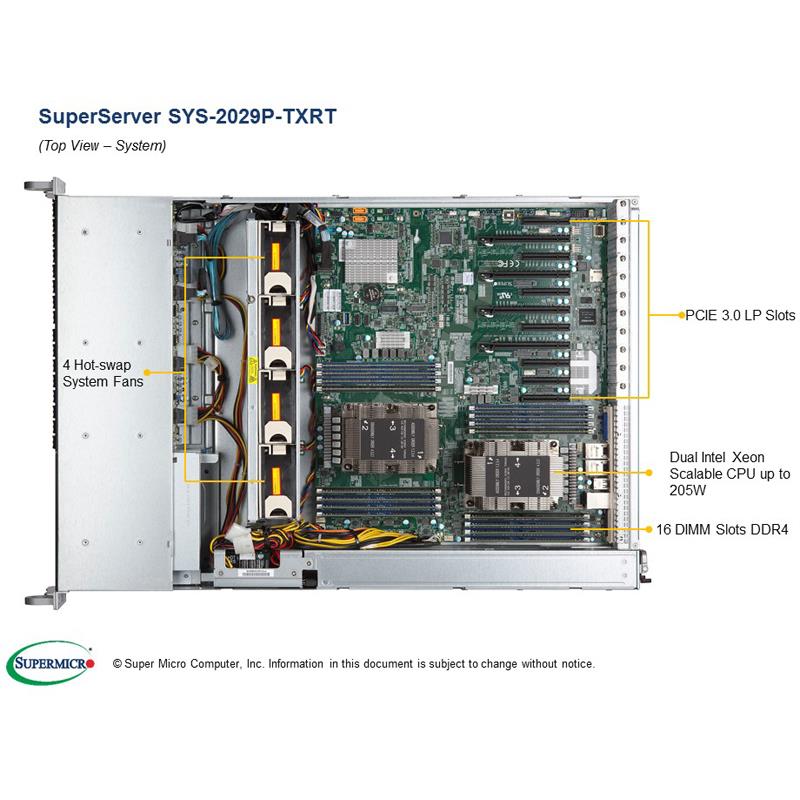

Supermicro SYS-2029P-TXRT 2U Barebone Dual Intel Processor
• Industrial Server Solutions
• Networking Telephony
• Surveillance DCR
• GPU Pass-through VM server
• Flash Array Server
• Head-node Controller
Barebone 2U Rackmount SuperServer, Dual Intel Xeon Scalable Processors Gen. 2, Intel C621 chipset, Up to 4TB DDR4 ECC 2933Mhz memory, 16 Hot-swap 2.5in drive bays, 2x 10GBase-T ports, Redundant 1000W Power Supply (CSE-213XAC-R1K05LP + MBD-X11DPX-T)
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16 slots, 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8), 4 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 (in x8 slot); Support 11 low-profile AOC
4. 16 Hot-swap 2.5" SAS/SATA drive bays, 1 slim DVD-ROM drive bay
5. 2x 10GBase-T ports via Intel X550-AT2
6. Integrated IPMI 2.0 with KVM and Dedicated LAN
7. 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
8. 4 middle fans
9. 1000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-2029P-TXRT 2U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DPX-T | |
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Controllers | Intel® X550-AT2 Dual Port 10GBase-T | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| Serial ATA | 8 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (rear) | ||
| Serial Port / Header | 1 COM port (rear) | |
| VGA | 1 VGA port | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| TPM | 1 TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-213XAC-R1K05LP | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.6" (650mm) | |
| Package | 14.8" (H) x 27" (W) x 37.3" (D) | |
| Weight | Net Weight: 36 lbs (16.4 kg) | |
| Gross Weight: 72 lbs (32.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Hard drive activity LED | ||
| Power status LED | ||
| System information (overheat/UID) LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x4 (in x8 slot) | |
| 2 PCI-E 3.0 x16 slots | ||
| 4 PCI-E 3.0 x8 slots | ||
| 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8 by MUX) | ||
| Support total of 11 Low-profile AOC | ||
| Drive Bays | ||
| Hot-swap | 16 Hot-swap 2.5" drive bays | |
| 10 SATA3 ports by default | ||
| Optional drive support: 16 SAS3 Note: optional storage card is required to support more than 10 drives | ||
| Peripheral Bay | ||
| Peripheral | 1 slim DVD-ROM drive | |
| Backplane | ||
| Backplane | 1 SAS/SATA backplane | |
| System Cooling | ||
| Fans | 4 Middle fans | |
| PowerStick Power Supply | ||
| PowerStick Power Supply | 1000W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| Dimension (W x H x L) | 38 x 40 x 360 mm | |
| Input | 100-127Vac / 9-7.5A / 50-60Hz | |
| 200-240Vac / 6-5A / 50-60Hz | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | Gold Finger Connector (16 Power Pin, 14 Signal Pin) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2029P-TXRT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPX-T | 1 | Super X11DPX-T Motherboard | |
| Motherboard / Chassis | CSE-213XAC-R1K05LP | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-213A | 1 | 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-SAST-0508-01 | 2 | MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG | |
| Parts | MCP-260-00042-2N | 1 | STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar | |
| Air Shroud | MCP-310-00082-0B | 1 | Mylar Air Shroud for SC213X (X11DPX) | |
| Parts | MCP-450-00003-0N | 1 | Plastic M.2 holder kit for X11 MB | |
| Manual | MNL-2081-QRG | 1 | 2029P-TXRT Quick Reference Guide | |
| Heatsink / Retention | SNK-P0068PS | 2 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K05A-1R | 2 | 1U 1000W Redundant Power Supply Titanium, 38X40X360mm length | |
| FAN 1 | FAN-0190L4 | 4 | 80x80x38 mm, 10.5K RPM, Middle Cooling Fan for SC213X Chassis |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 1 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Cable Arm Adapter | MCP-120-82503-0N | $ 34.00 | 1 | Cable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required) | ||
| Slim DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| 5.25" DVD kit | MCP-220-00006-00 | $ 19.00 | 0 | 5.25" drive rail set | ||
| USB 2.0/COM port tray | MCP-220-00007-01 | $ 31.00 | 0 | Black USB2.0 /COM port tray (mount with Slim DVD Kit) | ||
| USB 3.0/COM port tray | MCP-220-00114-0N | $ 43.00 | 0 | Black 2x USB3.0/COM port tray (mount with Slim DVD Kit) | ||
| Mobile Rack | CSE-M14TQC & CBL-SAST-0699 | 0 | Black SAS3/SATA3 Mobile Rack for 4x 2.5 (mount with 5.25" DVD kit); internal mini SAS HD to 4 SATA 12G, 75/75/90/90cm w/75cm SB, S. 30AWG | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e & 2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i & 2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR & 2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| CacheVault | BTR-TFM8G-LSICVM02 | 1 | Supercap 8GB CV + BKT-BBU-BRACKET-05 or MCP-240-00127-0N x1 | |||
| CacheVault | BKT-BBU-BRACKET-05 | 1 | Mounting PCIe Card | |||
| CacheVault | MCP-240-00127-0N | $ 20.50 | 1 | SuperCap tray for 2.5" HDD | ||
| P4 GPU kit | MCP-310-00085-0B | 1 | Mylar Air Shroud(GPU) and air block for SC213X (X11DPX) | |||
| P4 GPU kit | MCP-310-00086-0B | 1 | Mylar Air dummy(GPU) for SC213X | |||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| AOC | AOC-VROCINTMOD | 0 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 0 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
