| Specifications |
| Host Interface | PCI-E 3.0 (8GT/s) |
| MCTP over SMBus |
| Function level Rest (FLR) support |
| Message Signal Interrupt (MSI-X) |
| Networking Features | Jumbo Frames (up to 9600-byte) |
| 802.3x flow control |
| Link Aggregation (802.3ad) |
| Virtual LANs 802.1q VLAN tagging |
| Configurable Flow Acceleration |
| IEEE 1588 and Time Sync |
| RDMA over Converged Ethernet (RoCE) |
| Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload |
| Large Send Offload |
| Receive Segment Coalescing |
| TCP segmentation Offload |
| Large Receive Offload |
| Receive Side Scaling (RSS) |
| Transmit Side Scaling (TSS) |
| NIC partitioning (NPAR) | 16 Physical Functions |
| QoS per partition |
| Partitioning control via sideband communication |
| Stateless offload configuration per partition |
| VEB/VEPA support |
| Up to 64MAC/VLAN filter per partition |
| Flow Processing | Exact/Wildcard Match Flow Lookup |
| VLAN insertion/deletion |
| NAT/NAPT |
| Mirroring |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue |
| Support for 128 Virtual Functions |
| VXLAN |
| NVGRE |
| Geneve |
| Edge Virtual Bridging (EVB) |
| Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb) |
| Enhanced transmission selection (ETS; IEEE802.1Qau) |
| Quantized congestion Notification (QCN; IEEE802.1Qau) |
| Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz) |
| 8 traffic classes per port; fully DCB compliant per 802.1Qbb |
| Manageability | Network Controller Sideband Interface (NC-SI) |
| Asset Management with Thermal Sensors |
| PXE boot |
| Power Savings | ACPI compliant power management |
| PCI Express Active State Power Management (ASPM) |
| Ultra low-power mode |
| Pass-through Energy Efficient Ethernet |
| (IEEE802.3az-2010) |
| Power Consumption | Maximum power consumption: 13.1W |
| Operating Conditions | Storage humidity: 90% non-condensing relative humidity at 35°C |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Physical Dimensions | PCB dimensions: 76mm x 115mm (W x D) |

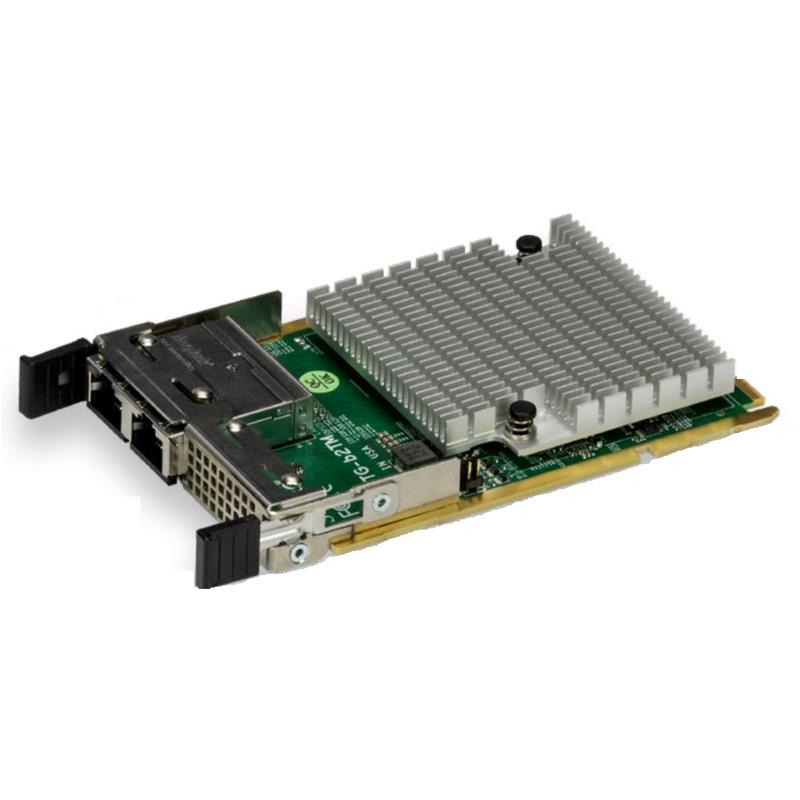

| Broadcom BCM57416 dual-port 10Gbps controller |
