- Supermicro AOC-ATG-B2TG 10Gb Ethernet Controller Dual RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0

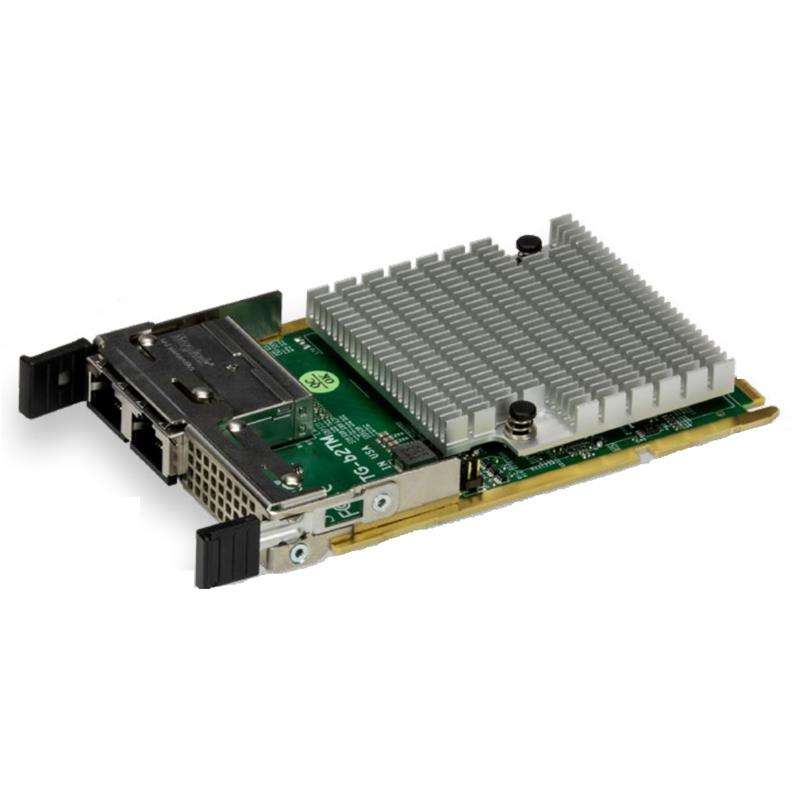

Supermicro AOC-ATG-B2TG 10Gb Ethernet Controller Dual RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0
PCI-E 3.0 x8 for efficient data transfer
Energy Efficient Ethernet reduces power use
RoCE Support for low-latency communication
Dual 10GbE Ports for high-speed connectivity
Advanced 10Gb Ethernet Controller, Advanced I/O Module (AIOM) Form Factor, Based on the latest Broadcom NetXtreme BCM57416 Ethernet Controller, Dual RJ45 Connectors, PCI-E 3.0 x8 Interface, Bracket Included : 0.5U Height Narrow Bracket for GrandTwin Front IO Systems - (AOC-ATG-B2TG)
Advanced I/O Module (AIOM) Form Factor
Broadcom BCM57416 Ethernet Controller
Dual RJ45 Connectors
PCI-E 3.0 x8 interface
Asset Management Features with thermal sensor
Broadcom Dual-Port 10Gbps
Pass-through Energy Efficient Ethernet (IEEE STD 802.3az-2010)
TruFlow
NPAR (NIC Partitioning)
VXLAN, NVGRE and Geneve
vSAN/RDMA
SR-iOV, VMQueue, NetQueue, Multiqueue
Jumbo Frames (up to 9600-byte)
Extra Specifications for Supermicro AOC-ATG-B2TG 10Gb Ethernet Controller Dual RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0
| Specifications | ||
| Host Interface | PCI-E 3.0 (8GT/s) | |
| MCTP over SMBus | ||
| Function level Rest (FLR) support | ||
| Message Signal Interrupt (MSI-X) | ||
| Networking Features | Jumbo Frames (up to 9600-byte) | |
| 802.3x flow control | ||
| Link Aggregation (802.3ad) | ||
| Virtual LANs 802.1q VLAN tagging | ||
| Configurable Flow Acceleration | ||
| IEEE 1588 and Time Sync | ||
| RDMA over Converged Ethernet (RoCE) | ||
| Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload | |
| Large Send Offload | ||
| Receive Segment Coalescing | ||
| TCP segmentation Offload | ||
| Large Receive Offload | ||
| Receive Side Scaling (RSS) | ||
| Transmit Side Scaling (TSS) | ||
| NIC partitioning (NPAR) | 16 Physical Functions | |
| QoS per partition | ||
| Partitioning control via sideband communication | ||
| Stateless offload configuration per partition | ||
| VEB/VEPA support | ||
| Up to 64MAC/VLAN filter per partition | ||
| Flow Processing | Exact/Wildcard Match Flow Lookup | |
| VLAN insertion/deletion | ||
| NAT/NAPT | ||
| Mirroring | ||
| Virtualization Features | NetQueue, VMQueue, and Multiqueue | |
| Support for 128 Virtual Functions | ||
| VXLAN | ||
| NVGRE | ||
| Geneve | ||
| Edge Virtual Bridging (EVB) | ||
| Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb) | |
| Enhanced transmission selection (ETS; IEEE802.1Qau) | ||
| Quantized congestion Notification (QCN; IEEE802.1Qau) | ||
| Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz) | ||
| 8 traffic classes per port; fully DCB compliant per 802.1Qbb | ||
| Manageability | Network Controller Sideband Interface (NC-SI) | |
| Asset Management with Thermal Sensors | ||
| PXE boot | ||
| Power Savings | ACPI compliant power management | |
| PCI Express Active State Power Management (ASPM) | ||
| Ultra low-power mode | ||
| Pass-through Energy Efficient Ethernet | ||
| (IEEE802.3az-2010) | ||
| Power Consumption | Maximum power consumption: 13.1W | |
| Operating Conditions | Storage humidity: 90% non-condensing relative humidity at 35°C | |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Physical Dimensions | PCB dimensions: 76mm x 115mm (W x D) | |
| Broadcom BCM57416 dual-port 10Gbps controller | ||
| Add-on Card | ||
| Add-on Card | Supermicro AOC-ATG-b2TM/G features the latest Broadcom NetXtreme BCM57416 Ethernet controller that is designed for today’s rapidly growing data center and cloud-scale applications. The auto-negotiation feature offers users backwards compatibility between 1GbE and 10GbE. The AOC-ATG-b2TM/G also features VXLAN, NVGRE and Geneve along with Broadcom TruFlow technology that enables users to reduce the CPU load and increase the VM density. In addition, NPAR (NIC Partitioning) technology provides flexible connectivity for different networking requirements. The Supermicro AOC-ATG-b2TM/G is a truly exceptional 10GbE Ethernet Adapter for your continuously growing cloud and data center applications. To order, contact your distributor. This product is only available through Supermicro. | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-ATG-b2TM.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-ATG-b2TM.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Broadcom folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
