| Motherboard |
| Motherboard | Super X11SRA |
| Processor |
| CPU | Intel® Xeon® W-2200 processor, Intel® Xeon® W-2100 processor |
| Single Socket R4 (LGA 2066), CPU TDP support up to 165W |
| System Memory |
| Memory Capacity | Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC) |
| Memory Type | 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM |
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB, 4GB |
| On-Board Devices |
| Chipset | Intel® C422 chipset |
| SATA | RAID 0, 1, 5, 10 support |
| SATA3 (6Gbps) via Intel C422 controller |
| Network Controllers | Single LAN with Aquantia 5G LAN chip AQC108 |
| Single LAN with Intel® PHY I219LM LAN controller |
| Audio | ALC 1220 7.1 HD Audio |
| Input / Output |
| SATA | 6 SATA3 (6Gbps) ports from Intel® C422 |
| LAN | 2 RJ45 Ethernet LAN ports |
| USB | 6 USB 2.0 ports (2 rear + 4 headers) |
| 6 USB 3.0 ports (4 rear + 2 headers) |
| 2 USB 3.1 (2 Type A) |
| Audio | 7.1 HD Jacks |
| Serial Port / Header | 1 COM port (header) |
| TPM | 1 TPM 1.2 20-pin Header |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x4 slot |
| 3 PCI-E 3.0 x16 slots (8/16/16, 48 lanes) |
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4 |
| M.2 Form Factor: 22110/2280 |
| M.2 Key: M-Key (RAID 0,1 support) |
| U.2 Interface: 2 PCI-E 3.0 x4 |
| System BIOS |
| BIOS Type | UEFI 256Mb |
| BIOS Features | ACPI 3.0 or later |
| SMBIOS 2.7 or later |
| SPI dual/quad speed support |
| RTC wakeup |
| BIOS rescue hot-key |
| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-732D3-903B |
| Dimensions and Weight |
| Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 20.68" (525.3mm) |
| Gross Weight | 35.5 lbs (16.1 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED |
| System Information LED |
| Hard drive activity LED |
| Network activity LED |
| Ports | 2 front USB 3.0 Ports |
| 1 Line-out, 1 Mic-in |
| Drive Bays |
| Internal | Enterprise SATA HDD only recommended |
| 4 fixed 3.5" drive bays |
| Peripheral | 2 optional 5.25" Peripheral drive bays |
| 1 optional card reader module |
| System Cooling |
| Fans | 1x 12cm rear exhaust fan |
| Optional 1x 12cm front cooling fan |
| Power Supply |
| Power Supply | 900W AC multi output power supply |
| AC Voltage | 100-240 V, 50-60 Hz, 10-6 Amp |
| +5V Standby | 3 Amp |
| +12V1 | 25 Amp |
| +12V2 | 25 Amp |
| +12V3 | 25 Amp |
| +12V4 | 25 Amp |
| +5V | 25 Amp |
| +3.3V | 25 Amp |
| -12V | 0.5 Amp |
| Certification | Gold Level |
| Note: | • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W. |
| PC Health Monitoring |
| CPU | 6-Phase-switching voltage regulator |
| Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| FAN | Low noise fan speed control |
| Temperature | Monitoring for CPU and chassis environment |
| PECI |
| Thermal Control for 8x fan connectors |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

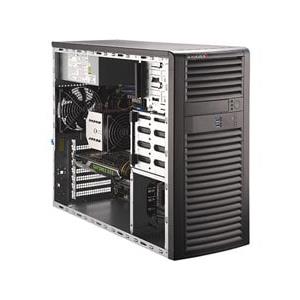

| Product SKUs | SYS-5039A-i (Black) |
