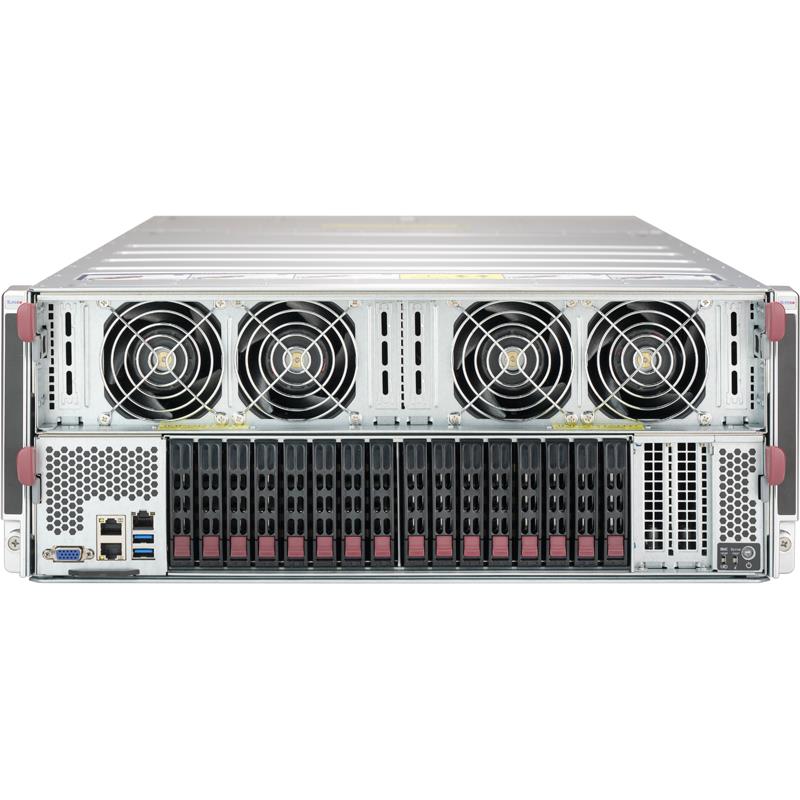

Supermicro SYS-4029GP-TVRT 4U Barebone Dual Intel Processor
• AI/ML, Deep Learning Training and Inference
• Big Data Analytics
• High Performance Computing (HPC)
• Research Laboratory/National Laboratory
Barebone 4U Dual Xeon Scalable Gen. 2 for 8 nVidia Tesla V100 GPU with NVLink, up to 6TB DDR4-2933MHz in 24 DIMM Slots, Intel C621 chipset, Intel PCH for 8 SATA3 (6Gbps) ports, 16x 2.5in hot-swap drive bays, supports up to 8x NVMe SSDs, 4 PCIe 3.0 x16 LP slots (GPU tray for GPUDirect, 2 PCIe 3.0 x16 LP, 2200W Redundant Power Supply (Titanium Level)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 4 GPUs installed).
1. Supports 8 NVIDIA® V100 SXM2 GPUs with up to 300 GB/s GPU-GPU NVIDIA® NVLINK™ Interconnection
2. Optimized for NVIDIA® GPUDirect™ RDMA
3. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
4. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
5. 4 PCI-E 3.0 x16 (LP) (GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
6. Support 8 NVIDIA V100 with 300GB/s NVLINK
7. Dual 10GBase-T LAN with Intel® X540
8. 16 Hot-swap 2.5" SAS/SATA drives (Optional 8x NVMe drives supported), 2 NVMe based M.2 SSD
9. 8x 92mm cooling fans
10. 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)
Extra Specifications for Supermicro SYS-4029GP-TVRT 4U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super | |
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| GPU | ||
| Supported GPUs | NVIDIA V100 | |
| 8 SXM Socket Based | ||
| CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch CPU-GPU Interconnect | |
| PCIe Root Architecture Chart | ||
| NVIDIA® NVLink™ GPU-to-GPU Interconnect | ||
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Controllers | Dual Port 10GBase-T from Intel X540 Ethernet Controller | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 2 USB 3.0 ports (front) | |
| Video | 1 VGA Connector | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| BIOS Features | Intel® Node Manager | |
| IPMI 2.0 | ||
| KVM with dedicated LAN | ||
| SSM , SPM , SUM | ||
| SuperDoctor® 5 | ||
| Watchdog | ||
| Chassis | ||
| Form Factor | 4U Rackmountable | |
| Rackmount Kit (MCP-290-31401-0N) | ||
| Model | CSE-R422BG-1 | |
| Dimensions | ||
| Height | 7.0" (178mm) | |
| Width | 17.6" (447mm) | |
| Depth | 31.7" (805mm) | |
| Weight | Net Weight: 80 lbs (36.2 kg) | |
| Gross Weight: 135 lbs (61.2 kg) | ||
| Available Colors | Black | |
| Drive Bays / Storage | ||
| Hot-swap | 16 Hot-swap 2.5" SAS/SATA drive bays | |
| Optional 8x 2.5" NVMe supported | ||
| M.2 | Form Factors: 2260, 2280, 22110 | |
| 2 NVMe based M.2 SSD | ||
| Expansion Slots | ||
| PCI-Express | 6 PCI-E 3.0 x16 (LP) slots (Onboard GPUs do not use PCI-E slots) | |
| Backplane | ||
| Backplane | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices | |
| System Cooling | ||
| Fans | 8x 92mm Cooling Fans | |
| 4x 80mm Cooling Fans | ||
| Power Supply | ||
| Power Supply | 2200W Redundant Titanium Level Power Supplies with PMBus | |
| Total Output Power | 1200W/1800W/1980W/2090W/2200W (UL/cUL only) | |
| Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm | |
| Input | 1200W: 100-127 Vac / 14-11 A / 50-60 Hz | |
| 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | ||
| 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz | ||
| 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) | ||
| 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) | ||
| 2090W: 230-240 Vdc / 10-9.8 A (CCC only) | ||
| +12V | Max: 100A / Min: 0A (1200W) | |
| Max: 150A / Min: 0A (1800W) | ||
| Max: 165A / Min: 0A (1980W) | ||
| Max: 174.17A / Min: 0A (2090W) | ||
| Max: 183.3A / Min: 0A (2200W) | ||
| 12Vsb | Max: 2A / Min: 0A | |
| Output Type | Gold Finger (connector on M/P) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 4029GP-TVRT | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DGO-T | 1 | Super X11DGO-T Motherboard | |
| Motherboard / Chassis | MBD-X10DGO-SXMV-P | 1 | V100 SXM2 GPU Board | |
| Motherboard / Chassis | CSE-R422BG-1 | 1 | CSE-R422BG-1 Chassis | |
| Backplane | BPN-MB-R422 | 1 | Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS | |
| Backplane | BPN-SAS3-213A-N8 | 1 | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-0174L | 4 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH | |
| Cable 2 | CBL-PWCD-0174-IS | 4 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH | |
| Cable 3 | CBL-PWEX-0979 | 3 | 2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG | |
| Cable 4 | CBL-SAST-0550 | 2 | MINI SAS HD,12G,INT,25CM,30AWG | |
| Cable 5 | CBL-SAST-0934-12 | 4 | Oculink-Oculink X8 Cable 50cm 34AWG,RoHS | |
| Cable 6 | CBL-SAST-0935-12 | 4 | Oculink-Oculink X8 Cable 60cm 34AWG,RoHS | |
| Parts | MCP-220-42204-0N-PACK | 1 | Single pack R422BG 2U GPU tray (2U, 8 Pascal / Volta GPU),Ro | |
| Power Supply | PWS-2K21A-2R | 4 | 2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc, | |
| Power Supply | PWS-DF004-1F | 4 | 12Vdc input redundant FAN module power supports I2C function | |
| Heatsink / Retention | SNK-P0068APS4 | 2 | 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform | |
| Heatsink / Retention | SNK-P4003P | 8 | 2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| NVMe Kit | CBL-SAST-1021 | $ 48.50 | 1 | Oculink-8 lanes to 2x Oculink 4 lanes, 30cm 34AW | ||
| NVMe Kit | MCP-220-00121-0B | $ 28.50 | 1-2 | Black Gen-3 2.5" NVMe drive tray, Orange tab with lock | ||
| NVMe Kit | MCP-220-00167-0B | $ 28.50 | 0 | Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) | ||
| Storage Control Kits (Storage Control Cards + Cables) | AOC-S3008L-L8i & 2x CBL-SAST-0568 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0,1,1E; MINI SAS HD,12G,INT,35CM,30AWG | |||
| Storage Control Kits (Storage Control Cards + Cables) | AOC-S3108L-H8iR & 2x CBL-SAST-0568 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,35CM,30AWG | |||
| Storage Control Kits (Storage Control Cards + Cables) | AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0568 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,35CM,30AWG | |||
| Super Cap for LSI 3108 | 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 or MCP-240-00127-0N | 0 | LSI Supercap w 8GB CV 24 cable (whole kit) & Supercap mounting bracket for PCI-E locationBKT-BBU-BRACKET-05: with vented full height bracket installedMCP-240-00127-0N: LSI SuperCap Bracket, same size as 2.5” HDD | |||
| Intel VROC RAID Key | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel VROC RAID Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel VROC RAID Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| TPM security module | AOM-TPM-9670V-S | $ 56.50 | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS | ||
| Network Cards | AOC-654105A-HCAT | 0 | Mellanox ConnectX-6 VPI 200Gb/s IB & EN Adapter Card single port, QSFP56, PCIe3.0 x16 + PCIe3.0x16 aux. card Socket Direct. RoHS | |||
| Network Cards | AOC-653106A-ECAT | $ 1,199.00 | 0 | ConnectX-6 VPI Card. 100Gb/s IB & EN Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS | ||
| Network Cards | AOC-S100G-m2C | 0 | Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16, | |||
| Network Cards | - | 0 | based on Mellanox ConnectX-4 EN chipset | |||
| Network Cards | AOC-MCX556A-ECAT | $ 1,048.00 | 0 | Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS | ||
| Network Cards | AOC-MCX516A-CCAT | $ 931.00 | 0 | Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS | ||
| Network Cards | AOC-MCX515A-CCAT | $ 918.00 | 0 | Mellanox MCX515A-CCAT PCIe 1-port 100GbE QSFP28 Gen3x16, HF, RoHS | ||
| Network Cards | AOC-MCX456A-FCAT | 0 | Mellanox ConnectX-4 VPI adapter card, FDR IB (56Gb/s) and 40/56GbE, dual-port QSFP, PCIe3.0 x16, tall bracket, HF, RoHS | |||
| Network Cards | AOC-S40G-i2Q | 0 | Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports | |||
| Network Cards | AOC-S25G-b2S | 0 | Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports, | |||
| Network Cards | - | 0 | based on Broadcom BCM57414 | |||
| Network Cards | AOC-S25G-m2S | 0 | Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset | |||
| Network Cards | AOC-STGF-i2S | 0 | Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports | |||
| Network Cards | AOC-STGN-i2S | 0 | Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports | |||
| Network Cards | AOC-SGP-i2 | 0 | Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports | |||
| Air Shroud | MCP-310-42203-0B | $ 21.50 | 1 | Pascal 2U mylar GPU dummy | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
