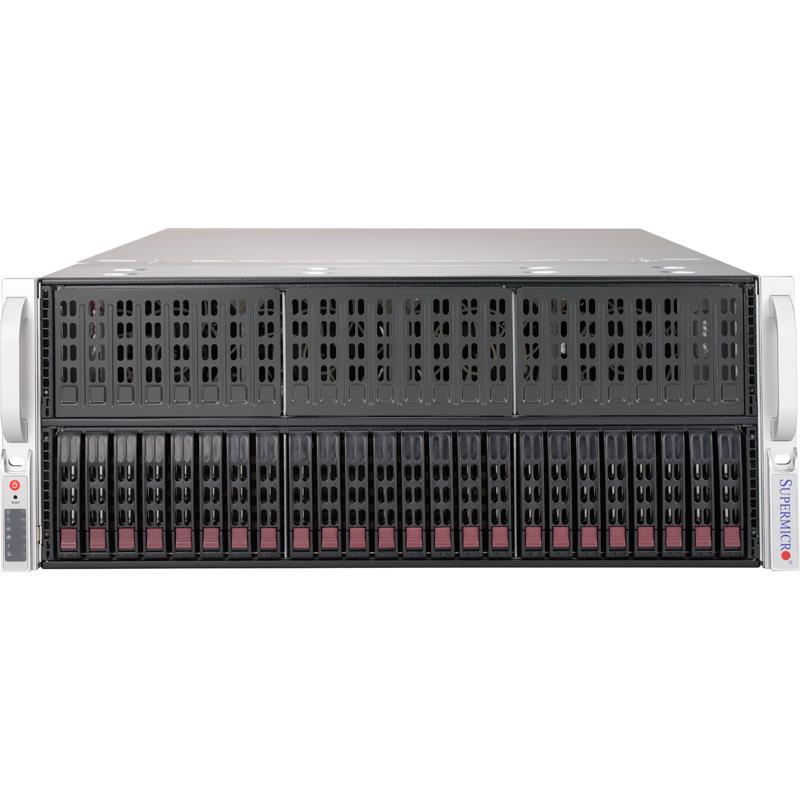

Supermicro SYS-4029GP-TRT 4U Barebone Dual Intel Processor
• 3D Rendering
• Astrophysics Simulation
• Chemistry Simulation
• Virtualization
• Cloud Computing
• Research Laboratory/National Laboratory
Barebone 4U Dual Xeon Scalable Gen. 2 for 8 nVidia Tesla V100 GPU with NVLink, up to 6TB 3DS ECC DDR42933MHz RDIMM/LRDIMM, Intel C622 chipset, 10 SATA3 (6Gbps) ports, 8x 2.5in hot-swap drive bays, 8 PCIe 3.0 x16 double-width slots, Dual 10GbE LAN ports, 2000W Redundant Power Supply (Titanium Level)
This product is no longer available.
1. Dual Root System for balanced performance & higher CPU to GPU communication
2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
4. 8 PCI-E 3.0 x16 slots (support up to 8 double width GPU), 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4
5. Up to 24 Hot-swap 2.5" drive bays; 8x 2.5" SATA drives supported with included H/W, 2x 2.5" NVMe drives supported with included H/W, 1 NVMe based M.2 SSD
6. 2x 10GBase-T LAN ports via Intel C622
7. 8 Hot-swap 92mm RPM cooling fans
8. 2000W (2+2) Redundant Power Supplies Titanium Level (96%+)
Extra Specifications for Supermicro SYS-4029GP-TRT 4U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X11DPG-OT-CPU | |
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| GPU | ||
| Supported GPUs | Supports both active and passive cooled GPUs | |
| Compatible GPU list | ||
| 8 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) | ||
| NVIDIA V100, P40, T4, Quadro, RTX | ||
| CPU-GPU Interconnect | PCIe Root Architecture Chart | |
| PCI-E Gen 3 x16 Switch Dual-Root | ||
| GPU-GPU Interconnect | PCI-E, NVIDIA® NVLink™ Bridge (Optional) | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Controllers | Dual Port 10GbE from C622 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 4 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable | |
| Rackmount Kit (MCP-290-00057-0N) | ||
| Model | CSE-418GTS-R4000BP2 | |
| Dimensions | ||
| Height | 7.0" (178mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29" (737mm) | |
| Weight | Net Weight: 65.5 lbs (29.7 kg) | |
| Gross Weight: 100 lbs (45.3 kg) | ||
| Available Colors | Black | |
| Drive Bays / Storage | ||
| Hot-swap | Up to 24x 2.5" SAS/SATA drive bays | |
| 8x 2.5" SATA supported natively | ||
| 2x 2.5" NVMe supported natively | ||
| M.2 | 1 NVMe based M.2 SSD | |
| Form Factors: 2260, 2280, 22110 | ||
| Expansion Slots | ||
| PCI-Express | 8 PCI-E 3.0 x16 (FHFL) slots - supporting up to 8 GPUs | |
| 2 PCI-E 3.0 x8 slots | ||
| 1 PCI-E 3.0 x4 slot | ||
| System Cooling | ||
| Fans | 8 Hot-swap 92mm cooling fans | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz | |
| 200-220Vac / 10-9.5A / 50-60Hz | ||
| 220-230Vac / 10-9.8A / 50-60Hz | ||
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100-120Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166.7A / Min: 0A (230-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 4029GP-TRT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPG-OT-CPU | 1 | Super X11DPG-OT-CPU Motherboard | |
| Motherboard / Chassis | MBD-X9DRG-O-PCIE | 1 | Super X9DRG-O-PCIE Motherboard | |
| Motherboard / Chassis | CSE-418GTS-R4000BP2 | 1 | CSE-418GTS-R4000BP2 Chassis | |
| Backplane | BPN-SAS3-216A-N4 | 1 | 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-0449L | 2 | HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG | |
| Cable 2 | CBL-PWEX-1028 | 8 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C | |
| Cable 3 | CBL-SAST-0507-01 | 2 | MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG | |
| Cable 4 | CBL-SAST-0972 | 2 | OcuLink V. 1.0 source to MiniSAS HD,INT,PCIe, 70CM,34AWG,RoH | |
| Parts | MCP-130-41801-0B | 1 | Black plastic palm cover for X9DRG-O-PCIE | |
| Riser Card | RSC-X9DRG-O | 4 | RSC-X9DRG-O | |
| Heatsink / Retention | SNK-P0068APS4 | 2 | 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform | |
| Power Supply | PWS-2K05A-1R | 4 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| FAN 1 | FAN-0199L4 | 8 | 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF | |
| Rear Window | MCP-240-84802-0N | 1 | 21 slot rear window for SC418X |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 0.5U LID | MCP-230-41803-0N | $ 65.00 | 1 | Top cover for GTX card support | ||
| 1U LID | MCP-230-41806-0N | $ 75.50 | 1 | Top cover for NVLINK BRIDGE support | ||
| 2.5" NVMe Drive Trays | MCP-220-00121-0B | $ 28.50 | 1 per drive | Black Gen-3 2.5" NVMe drive tray. Orange tab with lock | ||
| 2.5" NVMe Drive Trays | MCP-220-00167-0B | $ 28.50 | 0 | Black Gen-3 2.5" NVMe drive tray. Orange tab with lock, Tool-less | ||
| GPU Dummy Tray | MCP-240-00096-0N | $ 33.50 | 1 | GPU / Add-on Card Dummy Assembly (2 Slots) | ||
| GPU Cables | CBL-PWEX-0665 | $ 25.00 | 1 per GPU*** | GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin FEMALE BLK to 8pin FEMALE WHT. 30cm 18AWG. | ||
| GPU Cables | CBL-PWEX-1017 | $ 27.50 | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG. | ||
| GPU Cables | CBL-PWEX-1040* | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG. | |||
| GPU Cables | CBL-PWEX-1028** | 1 per GPU | GPU power cable (for NVIDIA TESLA V100). 8pin FEMALE CPU BLUE to 8pin FEMALE CPU BLUE. 30cm 20AWG/16AWG. | |||
| Storage Control Cards and Cables | AOC-S3008L-L8I2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10 | |||
| Storage Control Cards and Cables | AOC-S3008L-L8E2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only | |||
| Storage Control Cards and Cables | AOC-S3108-H8IR2, 4, 8 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60 | |||
| Storage Control Cards and Cables | AOC-S3108L-H8IR-16DD4, 8 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane | |||
| Storage Control Cards and Cables | AOC-SAS3-9361-16I3, 5 | 1 | Broadcom 9361 STD LP 16 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. | |||
| Storage Control Cards and Cables | AOC-SAS3-9361-24I5, 6 | 1 | Broadcom 9361 STD LP 24 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. | |||
| Storage Control Cards and Cables | CBL-SAST-0531 | $ 33.50 | 2 | n/a | ||
| Storage Control Cards and Cables | BTR-TFM4G-LSI004187 | 1 | LSI Remote CVKit with DVFlash Module CVFM04 for 9361 and 9380 Controller Series | |||
| Storage Control Cards and Cables | BTR-TFM8G-LSICVM02 | $ 275.00 | 1 | LSI Supercap w/ 8GB CV + 24" cable for LSI S3108-H8IR.Optional installation kit: - MCP-240-00127-0N - BKT-BBU-BRACKET-05 | ||
| Storage Control Cards and Cables | MCP-240-00127-0N | $ 20.00 | 1 | Remote Mounting Bracket for Supercap. Installs in 2.5" drive tray. | ||
| Storage Control Cards and Cables | BKT-BBU-BRACKET-05 | $ 82.50 | 1 | Remote Mounting Board for Supercap. Full Height mounting bracket. Low Profile mounting bracket also included. | ||
| Storage Control Cards and Cables | BPN-SAS3-216EL1 | 1 | SAS3 12Gb/s Single Expander Backplane with x24 2.5" SATA/SAS HDD/SSD. | |||
| Network and Cables | AOC-STG-i4S | 1 | 4 Port 10G SFP+ PCI-E x8 Ethernet card. Based on Intel X710-AMI | |||
| Network and Cables | AOC-STG-i2T | 1 | 2 Port 10G RJ45 PCI-E x8 Ethernet card. Based on Intel X540 | |||
| Network and Cables | AOC-S25G-B2S | $ 230.00 | 1 | 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Broadcom BCM57414 | ||
| Network and Cables | AOC-S25G-M2S | $ 204.00 | 1 | 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Mellanox ConnectX-4 LX EN | ||
| Network and Cables | AOC-MCX4121A-ACAT | 1 | 2 Port 25G SFP28 PCI-E X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN | |||
| Network and Cables | AOC-S40G-I1Q | $ 337.00 | 1 | 1 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 | ||
| Network and Cables | AOC-S40G-I2Q | $ 377.00 | 1 | 2 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 | ||
| Network and Cables | AOC-MCX456A-ECAT | 1 | 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-4 VPI | |||
| Network and Cables | AOC-MCX556A-ECAT | $ 1,048.00 | 1 | 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-5 VPI | ||
| Network and Cables | CBL-NTWK-0944-MS28C30M | 1 | Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,3M,Mellanox | |||
| Network and Cables | CBL-NTWK-0944-MS28C20M | 1 | Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,2M,Mellanox | |||
| Network and Cables | AOC-E10GSFPSR | $ 168.50 | 1 | Ethernet Transceiver, SFP+ 1000Base-SX / 10GBase-SR | ||
| Network and Cables | CBL-NTWK-0446-01 | $ 96.00 | 1 | Ethernet Cable, QSFP, 40GbE, PASSIVE, 28 AWG, 3M | ||
| Network and Cables | CBL-NTWK-0942-MQ28E20M | 1 | IB Cable, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
