- Supermicro AOM-CTG-B2TM Network Adapter Card MicroLP Dual RJ45 Connector 10G Data Rate

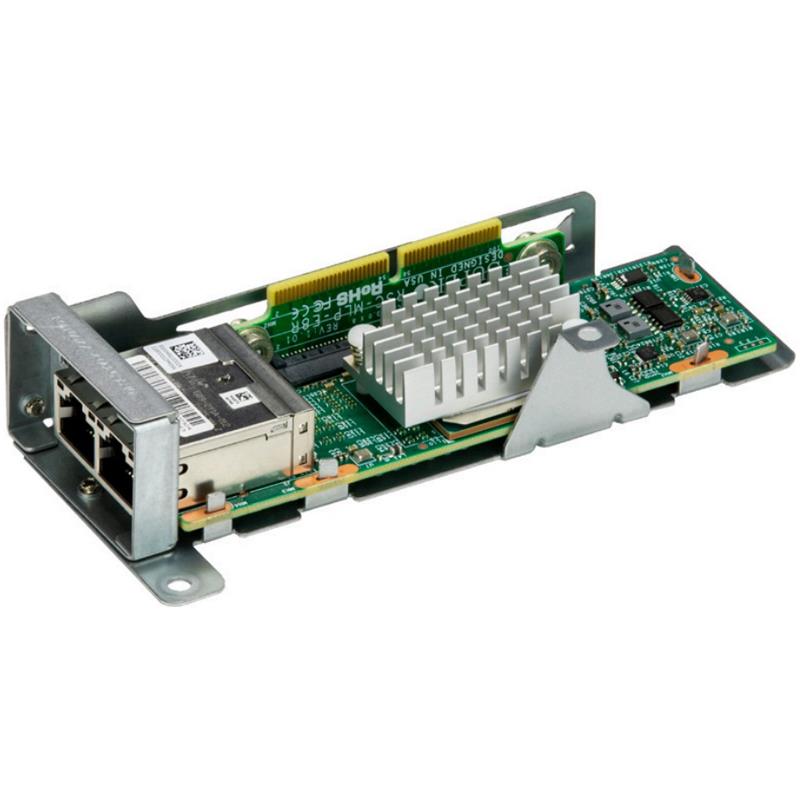

Supermicro AOM-CTG-B2TM Network Adapter Card MicroLP Dual RJ45 Connector 10G Data Rate
Broadcom BCM57416 dual-port 10Gbps controller
PCI-E 3.0 x4 (8GT/s) interface, Dual RJ45 connectors
MicroLP Form Factor for Supermicro Micro Cloud systems
10G Ethernet Adapter Card, Based on the Broadcom BCM57416 Controller, Provides Dual RJ45 port (10GBase-T), Data Transmission Rate: 10G per port
Compact and Powerful dual-port 10 Gigabit Ethernet Adapter
The AOC-CTG-b2T and AOM-CTG-b2TM 10 Gigabit Ethernet Adapters are the most compact and scalable 10GBase-T adapters for today’s demanding data center environments. Based on Broadcom® network controller BCM57416, it addresses the demanding needs of the next-generation data center. The AOC-CTG-b2T and AOM-CTG-b2TM are designed in a proprietary and small MicroLP form factor to fit Supermicro MicroCloud 8-node and 12-node systems.
Key Features
Dual 10GbE RJ45 Connectors
MicroLP Form Factor
Broadcom BCM57416 Ethernet Controller
PCI-E 3.0 x4 interface
Asset Management feature with thermal sensor
NC-SI for remote management
Extra Specifications for Supermicro AOM-CTG-B2TM Network Adapter Card MicroLP Dual RJ45 Connector 10G Data Rate
| Add-on Card/Module | ||
| Add-on Card/Module | The AOC-CTG-b2T and AOM-CTG-b2TM 10 Gigabit Ethernet Adapters are the most compact and scalable 10GBase-T adapters for today’s demanding data center environments. Based on Broadcom® network controller BCM57416, it addresses the demanding needs of the next-generation data center. The AOC-CTG-b2T and AOM-CTG-b2TM are designed in a proprietary and small MicroLP formfactor to fit Supermicro MicroCloud 8-node and 12-node systems. To order, contact your distributor. This product is only available through Supermicro. | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-CTG-b2T_AOM-CTG-b2TM.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-CTG-b2T_AOM-CTG-b2TM.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Broadcom folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Supported Platforms | ||
| Servers | AOC-CTG-b2T on MicroCloud 8-node systems | |
| AOM-CTG-b2TM on MicroCloud 12-node systems | ||
| Specifications | ||
| Networking Features: | Jumbo Frames (up to 9600-byte) | |
| 802.3x flow control | ||
| Link Aggregation (802.3ad) | ||
| Virtual LANs 802.1q VLAN tagging | ||
| Configurable Flow Acceleration | ||
| IEEE 1588 and Time Sync | ||
| RDMA over Converged Ethernet (RoCE) | ||
| TruFlow Technology | ||
| Stateless Offload Features: | TCP, UDP, IPv4, IPv6 checksum offload | |
| Large Send Offload | ||
| Receive Segment Coalescing | ||
| TCP segmentation Offload | ||
| Large Receive Offload | ||
| Receive Side Scaling (RSS) | ||
| Transmit Side Scaling (TSS) | ||
| NIC partitioning (NPAR): | 16 Physical Functions | |
| QoS per partition | ||
| Partitioning control via sideband communication | ||
| Up to 64MAC/VLAN filter per partition | ||
| Stateless offload configuration per partition | ||
| VEB/VEPA support | ||
| Flow Processing: | Exact/Wildcard Match Flow Lookup | |
| VLAN insertion/deletion | ||
| NAT/NAPT | ||
| Mirroring | ||
| Virtualization Features: | NetQueue, VMQueue, and Multiqueue | |
| Support for 128 Virtual Functions | ||
| VXLAN | ||
| NVGRE | ||
| Geneve | ||
| Edge Virtual Bridging (EVB) | ||
| Data Center Bridging: | Priority-based flow control (PFC; IEEE 802.1Qbb) | |
| Enhanced transmission selection (ETS; IEEE802.1Qau) | ||
| Quantized congestion Notification (QCN; IEEE802.1Qau) | ||
| Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz) | ||
| 8 traffic classes per port; fully DCB compliant per 802.1Qbb | ||
| Manageability: | Network Controller Sideband Interface (NC-SI) | |
| PXE boot | ||
| Asset Management with Thermal Sensors | ||
| Power Savings: | ACPI compliant power management | |
| Ultra low-power mode | ||
| Pass-through Energy Efficient Ethernet (IEEE802.3az-2010) | ||
| Operating Conditions: | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Physical Dimensions: | PCB dimensions: 11.3cm (4.46”) x 3.9cm (1.54”) | |
| MicroLP Form Factor for Supermicro Micro Cloud systems | ||
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
