• Ideal for Twin Systems
• Super I/O Module (SIOM) with Internal bracket
• Up to 100Gbps InfiniBand or 100Gbps Ethernet
• Asset Management Features with thermal sensor

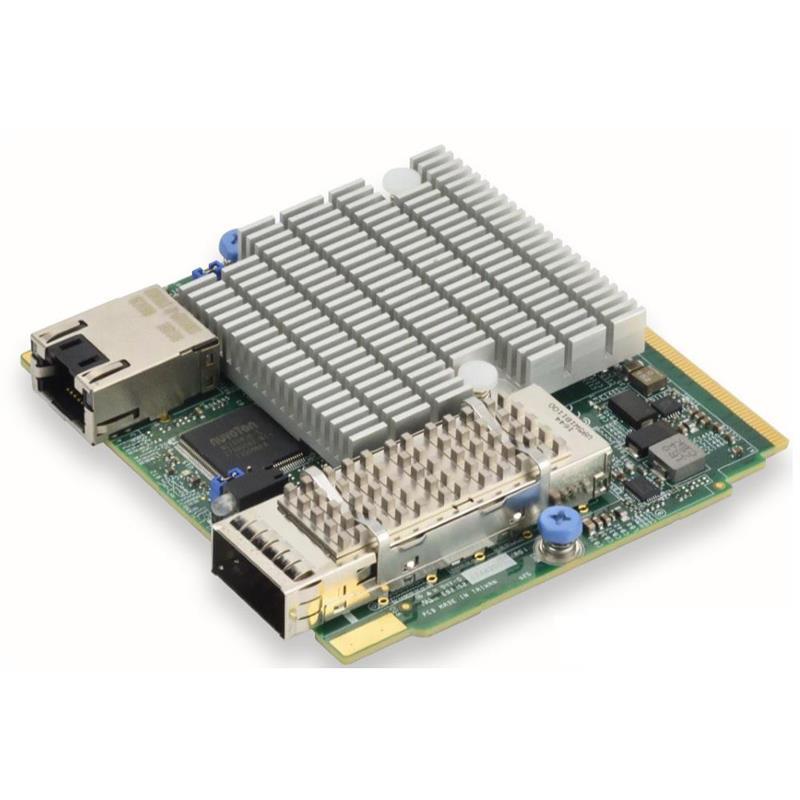

SIOM 1-Port InfiniBand QSFP28 EDR Adapter up to 100Gbps - Mellanox ConnectX-4 VPI, with single-port GbE RJ45 using Intel i210, Low-Profile bracket included - For Twin Systems
| Main Specifications | ||
| Device Type | InfiniBand Adapter | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)(W x D) | |
| Form Factor | Super I/O Module (SIOM) | |
| InfiniBand | Hardware-based congestion control | |
| IBTA Specification 1.3 compliant | ||
| 256 to 4Kbyte MTU, 2GB messages | ||
| Storage Controller | ||
| Data Transfer Rate | Single QSFP28 port with speed up to 100Gbps per port Intel i210 GbE controller | |
| Single RJ45 port with speed up to 1Gbps per port | ||
| Networking | ||
| Ethernet | IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet | |
| IEEE 802.3az Energy Efficient Ethernet | ||
| IEEE 802.3ad, 802.1AX Link Aggregation | ||
| IEEE 1588v2 | ||
| Jumbo frame support (9.6KB) | ||
| Hardware-based I/O Virtualization | Address translation and protection | |
| Multiple queues per virtual machine | ||
| Single Root IOV | ||
| Multi-function per port | ||
| Enhanced QoS for vNICs | ||
| VMware NetQueue support | ||
| Virtualization Features | SR-IOV: Up to 256 Virtual Functions | |
| SR-IOV: Up to 16 Physical Functions per port | ||
| Power | ||
| Comsumtion Operational | Maximum 19W | |
| Expansion / Connectivity | ||
| Interface and Connections | 1 QSFP28 port | |
| 1 RJ45 port | ||
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Software / System Requirements | ||
| OS Supports | Linux, Windows, FreeBSD, VMware | |
| Miscellaneous | ||
| Cables Required | InfiniBand EDR / 100GbE: QSFP28 100Gbps Copper cable | |
| InfiniBand EDR / 100GbE: Fiber optic cable (with required optional QSFP28 Optical transceiver) | ||
| GbE: RJ45 Category 5/5e up to 100m | ||
| Designed For | Supermicro X11 motherboards with Super I/O Module slot | |
| Supermicro X11 server systems with Super I/O Module slot | ||
| Included Accessories | BKT-0141L | |
| Compliant Standards | RoHS Compliant 6/6 | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
