Intel VROC Hardware Key (RSTe) Standard Upgrade Module RAID 0, 1, 10 (3rd Party SSD) - AOC-VROCSTNMOD
Cost-effective hybrid RAID for NVMe
Standard and Premium support RAID for Intel SSDs

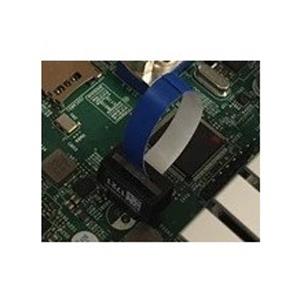

Key plugs into VROC header on X11 MB, if available
Intel VROC HW key (RSTe) standard upgrade module (Intel + 3rd party Vendor SSD) - RAID 0/1/10 - See technical specifications tab below for limits and considerations
Supermicro PCI-E Add-On Card for Intel's Virtual RAID on CPU (VROC) The Supermicro NMVe AOC-VROCxxxMOD is a hardware key that enables your Intel Xeon Scalable Processor motherboard to unlock its Intel-based Hybrid RAID system. It is the best method for cost-effectively RAID-protecting your NVMe volumes. Plug the key into your MBs VROC header and permanently unlock NVMe RAID protection. The VROC key comes in three different offerings, based on type of drive (Intel vs Non-Intel) and desired RAID level.
Key Features
Standard and Premium support RAID for Intel/Non-Intel SSDs
Cost-effective hybrid RAID for NVMe
Key plugs into VROC header on Intel Xeon Scalable Processor MB, if available
OS Support: Windows, Linux
Supported HW Configurations:
This section covers the configurations and platform limitations supported on the product Intel Virtual RAID on CPU. This information covers what Intel VROC software can support. Platform level constraints may supersede.
| Maximum x4 PCIe SSD Total Supported: | Platform Considerations: |
|
Boot Volumes may functions when spanning Intel Volume Management Device controllers, but this configuration is not Supported. |
Extra Specifications for Intel VROC Hardware Key (RSTe) Standard Upgrade Module RAID 0, 1, 10 (3rd Party SSD) - AOC-VROCSTNMOD
| Main Specifications | ||
| Device Type | RAID enablement key - Standard Upgrade module (Intel + 3rd party SSD) | |
| Dimensions (WxDxH) | 2.71 x 5.24 in | |
| Compatible | Intel's Virtual RAID on CPU | |
| Software / System Requirements | ||
| OS Supports | Windows, Linux | |
| Minimum System Requirements | VROC does not work for NVMe drives connected to the PCH in Purley platform | |
| STANDARD License needed | ||
| Miscellaneous | ||
| Features | The Supermicro NMVe AOC-VROCxxxMOD is a hardware key that enables your Intel Skylake CPU/Purley Platform motherboard to unlock its Intel-based Hybrid RAID system | |
| It is the best method for cost-effectively RAID-protecting your NVMe volumes | ||
| Plug the key into your MBs VROC header and permanently unlock NVMe RAID protection | ||
| RAID enablement key for RAID 0,1,10 | ||
| Support Intel and 3rd party NVMe SSD | ||
| Compliant Standards | RoHS Compliant 6/6, Pb Free | |
| Compatible With | Intel SSD DC P3100, Intel SSD DC P3500, Intel SSD DC P3520, Intel SSD DC P3600, Intel SSD DC P3700, Intel SSD DC P4101, Intel SSD DC P4500, Intel SSD DC P4501, Intel SSD DC P4510, Intel SSD DC P4511, Intel SSD DC P4600, Intel SSD DC P4601, Intel SSD DC P4610, Intel SSD D5-P4320, Intel SSD D5-P4326, Intel SSD D5-P4420, Intel SSD D7-P5500, Intel SSD D7-P5510, Intel Optane SSD DC P1600X, Intel Optane SSD DC P4800X, Intel Optane SSD DC P4801X, Intel Optane SSD DC P5800X, Intel SSD Pro 7600p, Intel SSD Pro 6000p, Intel Optane SSD 900P, Intel Optane SSD 905P, Intel SSD DC P3608, Intel SSD DC P4608, Intel SSD DC P4618 | |
| Third Party SSDs: Huawei ES3500P, ES3600P, Micron 9100 Series, 9200 Series, Samsung SM951, SM961, PM953, PM961, PM963,PM983, Toshiba XG3, XG5, Lenovo Atsani, Western Digital SN720, SN200, UNIC P8160 E/M | ||
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
