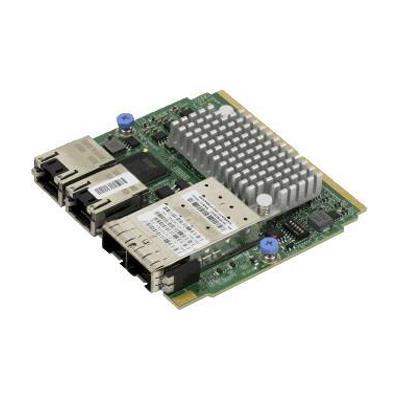

- Supermicro AOC-MH25G-b2S2GM SIOM 2-port 25Gbps SFP28 Broadcom BCM57414 and 2-port GbE RJ45 Intel i350 Network Adapter
Supermicro AOC-MH25G-b2S2GM SIOM 2-port 25Gbps SFP28 Broadcom BCM57414 and 2-port GbE RJ45 Intel i350 Network Adapter
• Idela for Twin Systems
• Feature rich and low power consumption
• Network Virtualization: VXLAN and NVGRE
• Dual SFP28 connectors; Dual RJ45 Connectors
SIOM 2-port 25Gbps SFP28 Broadcom BCM57414 and 2-port GbE RJ45 Intel i350 with 1U bracket Network Adapter
• PCI-SIG SR-IOV
• IEEE 1588 Time Sync
• Jumbo Frames support
• NC-SI for IPMI Remote Management (GbE Controller only)
• Super I/O Module (SIOM) Form Factor
• Intel i350-AM2 GbE controller, Dual RJ45 Connectors
• Broadcom BCM57414 25GbE controller, Dual SFP28 connectors
• NIC Partitioning (NPAR) (25GbE Controller only)
• Network Virtualization: VXLAN and NVGRE (25GbE Controller only)
• RDMA over Converged Ethernet (RoCE) (25GbE Controller only)
• Broadcom TruFlow (25GbE Controller only)
Extra Specifications for Supermicro AOC-MH25G-b2S2GM SIOM 2-port 25Gbps SFP28 Broadcom BCM57414 and 2-port GbE RJ45 Intel i350 Network Adapter
| Main Specifications | ||
| Cable Type | Network adapter | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Form Factor | Super I/O Module (SIOM) | |
| Connectivity | ||
| Connectors | Broadcom BCM57414 25GbE controller, Dual SFP28 connectors | |
| Intel i350-AM2 GbE controller, Dual RJ45 Connectors | ||
| Networking | ||
| NIC Partitioning | 16 Physical Functions, QoS per partition, Partitioning control via sideband communication, Up to 64 MAC/VLAN filter per partition, Per partition statistics support, Stateless offloads configuration per partition, VEB/VEPA support | |
| Data Center Bridging | Priority-based flow control (PFC, IEEE 802.1Qbb) | |
| Enhanced transmission selection (ETS, IEEE 802.1Qau) | ||
| Quantized congestion Notification (QCN, IEEE 802.1Qau) | ||
| Data Center Bridging Capability eXchange (DCBX, IEEE 802.1Qaz) | ||
| 8 traffic classes per port, fully DCB compliant per 802.1Qbb | ||
| Flow Processing | Exact/Wildcard Match Flow Lookup, VLAN insertion/deletion, NAT/NAPT, Mirroring | |
| Port Quantity | Broadcom BCM57414 25GbE controller: Dual SFP28 connectors with speed up to 25Gbps per port | |
| Intel i350-AM2 GbE controller: Dual RJ45 connectors with speed up to 1Gbps per port | ||
| RDMA over Converged Ethernet | RoCEv1 and RoCEv2, Data Center Bridging with RoCE | |
| Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload, Large Send Offload, Receive Segment Coalescing, TCP Segmentation Offload, Large Receive Offload, Receive Side Scaling (RSS), Transmit Side Scaling (TSS) | |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue, Support for 128 Virtual Functions, VXLAN, NVGRE and Geneve, Edge Virtual Bridging (EVB) | |
| Miscellaneous | ||
| Features | Jumbo frames, 802.3x flow control, Link Aggregation (802.3ad), Virtual LANs- 802.1q VLAN tagging, Configurable Flow Acceleration, IEEE 1588 and Time Sync | |
| 2-port 25 Gigabit & 2-port 1 Gigabit Ethernet Adapter | ||
| Cables Required | 25GbE SFP28: Direct attach copper cables and Fiber-optic cables (with required optional transceivers) | |
| 10GbE RJ45: RJ-45 Category-5/5e up to 100m | ||
| Included Accessories | Internal bracket | |
| Compliant Standards | RoHS Compliant 6/6 | |
| Power | ||
| Comsumtion Operational | Maximum 9W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
