• Compact and versatile SIOM form factor
• Low power consumption w/ Internal bracket
• Ideal for Enterprise and Data Center environments
• 2x SFP+ connectors w/ speed up to 10Gbps per port

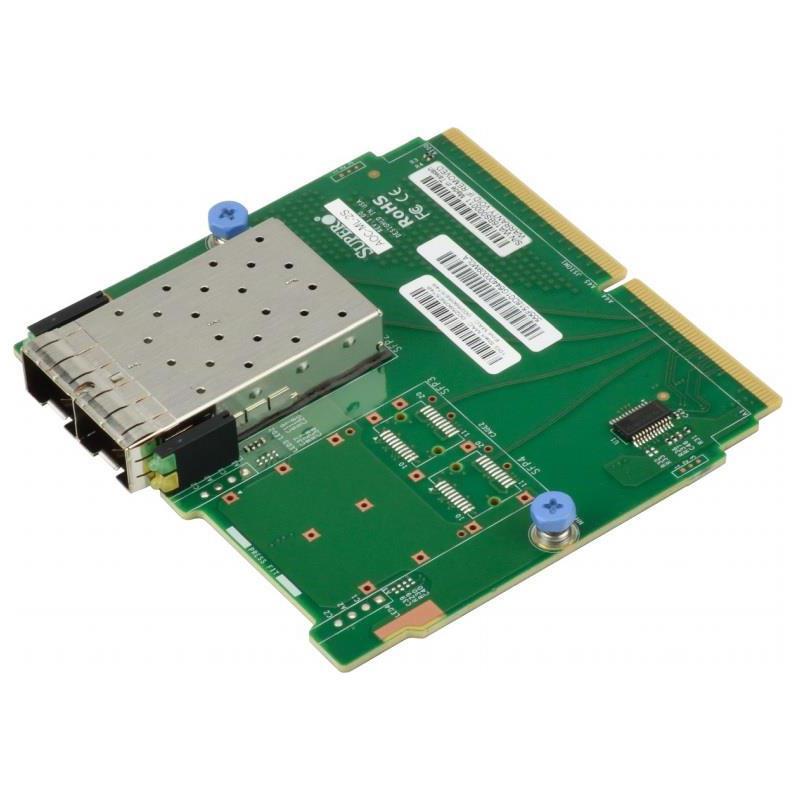

SIOM 2-Port 10G SFP+ for Lewisburg Platforms with 1U bracket Network Adapter
• RoHS Compliant 6/6
• Dual SFP+ connectors
• Jumbo Frames support
• SR-IOV for virtualization
• NC-SI for Remote Management
• Super I/O Module (SIOM) Form Factor
• Hardware offloads for NVGRE, VXLAN and GENEVE encapsulated traffic
• Interface 10GbE card for Intel platforms with integrated 10Gb Ethernet from PCH
| Main Specifications | ||
| Cable Type | Network adapter | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Form Factor | Super I/O Module (SIOM) | |
| Networking | ||
| Port Quantity | Dual SFP+ connectors with speed up to 10Gbps per port | |
| Power | ||
| Comsumtion Operational | Maximum 0.1W (Copper cable) | |
| Software / System Requirements | ||
| OS Supports | RHEL/CentOS, Windows, FreeBSD, VMware | |
| Miscellaneous | ||
| Cables Required | SFP+ Direct attach copper cables | |
| Fiber-optic cables (with required optional SFP+ transceivers) | ||
| Vendor Compatible Products | Supermicro motherboards with Super I/O Module slot | |
| Compatible Motherboards and Servers | Supermicro server systems with Super I/O Module slot (See SIOM Compatibility Matrix online) | |
| Included Accessories | Internal bracket | |
| Compliant Standards | RoHS Compliant 6/6 | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
