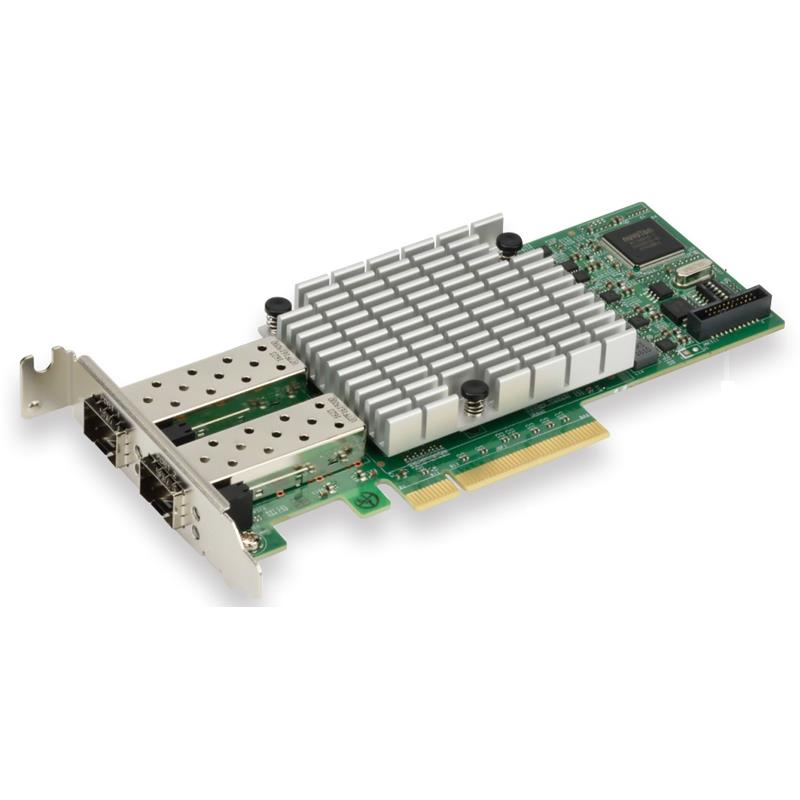

Main Specifications |
Cable Type | Network adapter |
Dimensions (WxDxH) | Card PCB dimensions: 15.49cm (6.1) x 6.86cm (2.7) |
| Height of end brackets: standard 12cm (4.725in), low-profile 7.94cm (3.13in) |
Form Factor | Half-length low-profile standard form factor |
Interface (Bus) Type | PCI-E 3.0 x8 |
Weight | 127.69g (0.28lb) |
Networking |
Remote Management Protocol | Asset Management features with thermal sensor |
Port Quantity | Dual SFP28 connectors |
Virtualization Features | Virtual Machine Load Balancing (VMLB) |
| Next-Generation VMDq with up to 256 VMDq VMs supported |
| Advanced Packet Filtering |
| VLAN support for up to 4096 VLAN tags |
| VXLAN and NVGRE support |
| SR-IOV with up to 128 virtual ports |
Miscellaneous |
Features | NC-SI for IPMI support |
RoHS | RoHS Compliant 6/6, Pb Free |
Power |
Comsumtion Operational | 7.2W |
Environmental Parameters |
Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) |
| Storage temperature: -40C to 70C (-40F to 158F) |
| Storage humidity: 90% non-condensing relative humidity at 35C |
Software / System Requirements |
OS Supports | Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux: RHEL 6.9, Linux: RHEL 7.3, Linux: SLES 11 SP4, Linux: SLES 12 SP1, Linux Stable Kernel version 2.6/4.x |
| VMware vSphere 5.1, VMware vSphere 5.5, VMware vSphere 2015 (ESXi 6.0), VMware vSphere 2016 (ESXi 6.5) |
| Solaris |
| FreeBSD 10.3/11 |
| UEFI 2.1/2.3/2.4 |
System Requirements Details | Motherboards with minimum PCI-E 3.0 x8 expansion slot |
| Server Systems with low-profile or full-height PCI-E 3.0 x8 expansion slot |
| NC-SI feature is only supported by Supermicro motherboards with corresponding NC-SI connectors |
