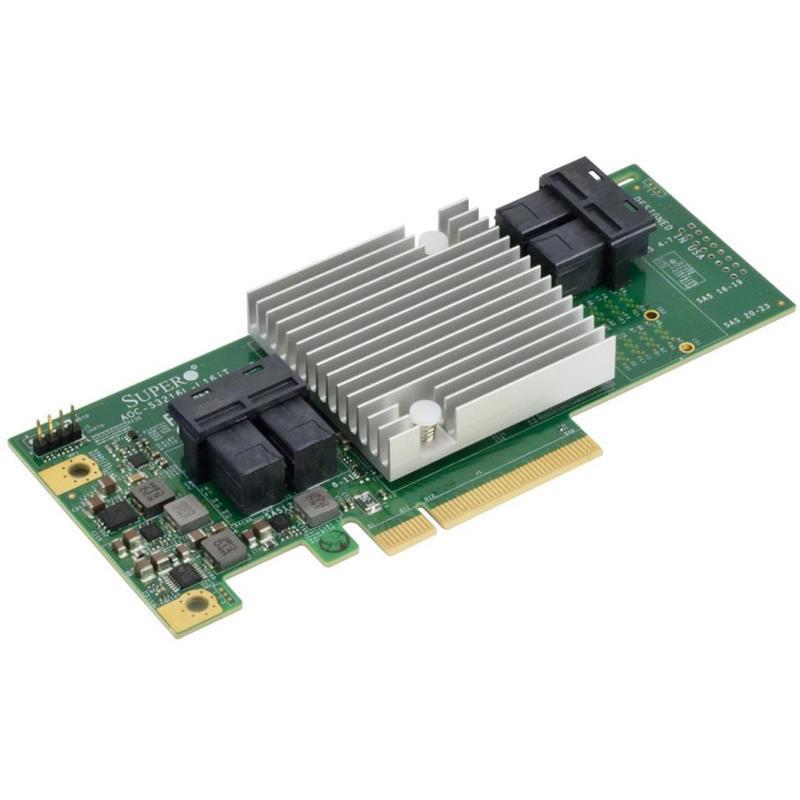

Supermicro AOC-S3216L-L16IT 16-Port SAS 12Gb/s, SATA 6Gb/s Internal Host Bus Adapter

Supermicro AOC-S3216L-L16IT 16-Port SAS 12Gb/s, SATA 6Gb/s Internal Host Bus Adapter

• Broadcom SAS3216 SAS3 controller
• Supports devices as a HBA in IT mode
• Processor at 1.2 GHZ - Supports JBOD
• 16x int SAS3 ports; 4x int mini SAS HD connectors

16-Port SAS 12Gb/s, SATA 6Gb/s Internal Host Bus Adapter

$ 366.00$ 366.00366.0USD

$ 366.00

Option not available

FREE SHIPPING

    This combination does not exist.

    Add to Cart

    • Broadcom 3216 SAS3 controller
    • 16-port (internal), 12Gb/s per port
    • Automatically negotiates PCI-E (1x, 2x and 3x) link widths
    • Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
    • OS Support : Windows 2012, 2k8, Vista, RedHat Enterprise and SUSE Linux

    Extra Specifications for Supermicro AOC-S3216L-L16IT 16-Port SAS 12Gb/s, SATA 6Gb/s Internal Host Bus Adapter

    Main Specifications
    Device TypeInternal Host Bus Adapter
    Dimensions (WxDxH)2.7" x 6.1" (HxL)
    Interface (Bus) TypePCIe x8 slot to support Gen 3 up to 8Gb/s.
    Integrated Graphics
    Max Dynamic Frequency1.2 GHz
    Storage Controller
    Channel Quantity16 internal direct-attached SAS/SATA connections (12Gb/s per port)- Four Mini SAS HD connectors for high-performance storage connectivity
    Data Transfer Rate12Gb/s
    Miscellaneous
    FeaturesPower management support
    Port independent auto-negotiation
    Automatically negotiates PCI-E (1x, 2x and 3x) link widths
    Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
    Uses a Broadcom 3216 I/O controller with a PCI Express host interface for increased bandwidth
    Compatible ProductsMotherboard: X11SSL-nF
    RoHSRoHS Compliant 6/6, Pb Free
    Power
    Requirements15.1 Watts
    Software / System Requirements
    OS SupportsWindows 2012, 2k8, Vista, RedHat Enterprise and SUSE Linux

    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (doa)
    Provider:Supermicro
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
