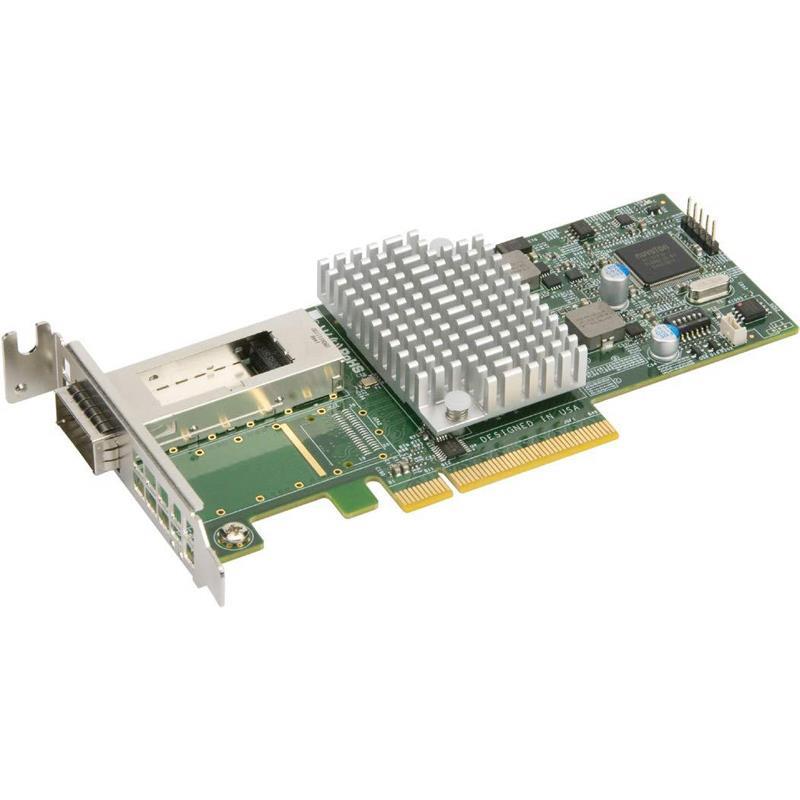

Supermicro AOC-S40G-I1Q 1-Port 40GbE QSFP+ Ethernet Controller Card based on Intel XL710

• Ethernet flow director; Intelligent offloads
• Unified Networking Support for NAS and SAN
• 1 QSFP+ Port; Low-Profile PCI Express 3.0 (8GT/s)
• Support Both Direct Attach Copper and Fiber Cables

1-Port 40GbE QSFP+ Ethernet Controller Card based on Intel XL710, Low-Profile (Can be ordered with Supermicro System ONLY - OEM)


    296.00296.00296.0USD

    296.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Intel XL710 40GbE controller
    • PCI-E 3.0 x8 (8GT/s) interface
    • Half-length low-profile standard form factor
    • Intel PROSet Utility for Windows Device Manager

    Extra Specifications for Supermicro AOC-S40G-I1Q 1-Port 40GbE QSFP+ Ethernet Controller Card based on Intel XL710

    Main Specifications
    Device Type Network adapter
    Dimensions (WxDxH) 5.9 in x 2.7 in
    Form Factor Plug-in card - low profile
    Interface (Bus) Type PCI Express 3.0 x8
    Processor
    Processor 1 x XL710 - Intel
    Networking
    Capacity VLAN tags: 4096
    Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)
    Connectivity Technology Wired
    Data Link Protocol 40 Gigabit LAN
    Data Transfer Rate 40 Gbps
    Features Flow control, load balancing, VLAN support, packet filtering, IPv6 support, Accelerated iSCSI, Virtual Machine Device Queues (VMDq), IPv4 support, teaming support, PXE support, Single Root I/O Virtualization (SR-IOV), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Intel Flow Director, intelligent offloads
    Network / Transport Protocol TCP/IP, UDP/IP, iSCSI, SCTP
    Port Quantity 40 Gigabit QSFP+ x 1
    Remote Management Protocol SNMP, RMON
    Power
    Comsumtion Operational 6.5 Watt
    Expansion / Connectivity
    Expansion Slots Total Free 1 (total) / 1 (free) x QSFP+
    Environmental Parameters
    Max Operating Temperature 131 °F
    Min Operating Temperature 32 °F
    Software / System Requirements
    OS Required Red Hat Linux 7.0, Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits)
    Software Included Intel PROSet
    Miscellaneous
    Compliant Standards RoHS
    Warranty:3 years, 120 days advanced replacement (DOA)
    Provider:Manufacturer
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or Repair
    Average Service Time:Overnight Replacement for 120 days, 2 weeks afterwards
    If you need Technical Support for this item please contact:

    Provider:Supermicro Computer, Inc.
    Type of Support:FULL
    Phone No: 408-503-8029
    URL:Click here for Manufacturer Website
