• Ethernet flow director; Intelligent offloads
• Unified Networking Support for NAS and SAN
• 1 QSFP+ Port; Low-Profile PCI Express 3.0 (8GT/s)
• Support Both Direct Attach Copper and Fiber Cables

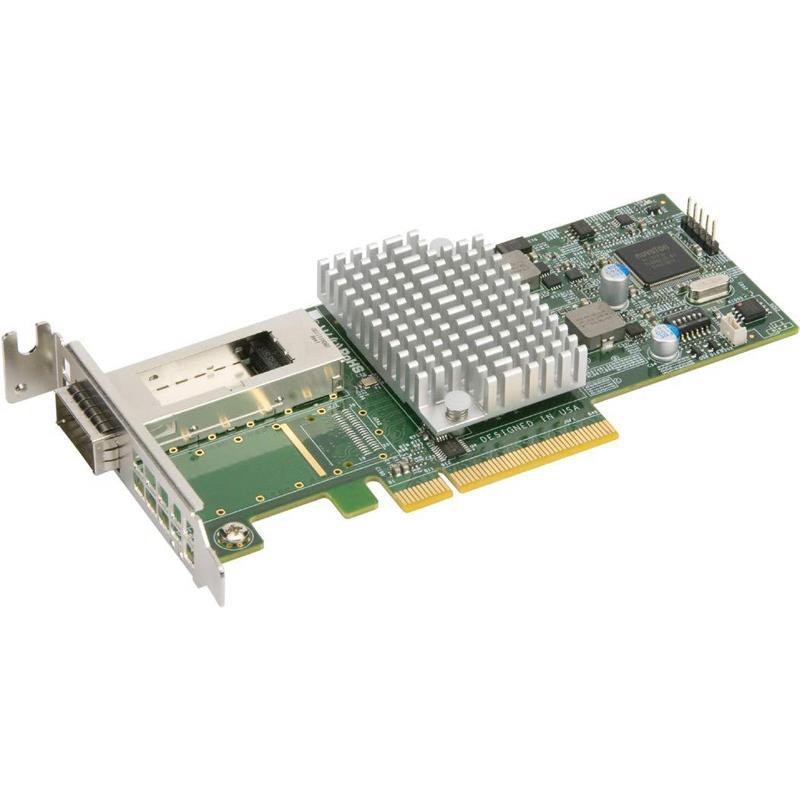

1-Port 40GbE QSFP+ Ethernet Controller Card based on Intel XL710, Low-Profile (Can be ordered with Supermicro System ONLY - OEM)
• Intel XL710 40GbE controller
• PCI-E 3.0 x8 (8GT/s) interface
• Half-length low-profile standard form factor
• Intel PROSet Utility for Windows Device Manager
| Main Specifications | ||
| Cable Type | Network adapter | |
| Dimensions (WxDxH) | 5.9 in x 2.7 in | |
| Form Factor | Plug-in card - low profile | |
| Interface (Bus) Type | PCI Express 3.0 x8 | |
| Capacity | VLAN tags: 4096 | |
| Storage Controller | ||
| Processor | 1 x XL710 - Intel | |
| Connectivity Technology | Wired | |
| Data Transfer Rate | 40 Gbps | |
| Miscellaneous | ||
| Compliant Standards | RoHS | |
| IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP) | ||
| Features | Flow control, load balancing, VLAN support, packet filtering, IPv6 support, Accelerated iSCSI, Virtual Machine Device Queues (VMDq), IPv4 support, teaming support, PXE support, Single Root I/O Virtualization (SR-IOV), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Intel Flow Director, intelligent offloads | |
| Networking | ||
| Data Link Protocol | 40 Gigabit LAN | |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, SCTP | |
| Port Quantity | 40 Gigabit QSFP+ x 1 | |
| Remote Management Protocol | SNMP, RMON | |
| Power | ||
| Comsumtion Operational | 6.5 Watt | |
| Expansion / Connectivity | ||
| Expansion Slots Total Free | 1 (total) / 1 (free) x QSFP+ | |
| Environmental Parameters | ||
| Max Operating Temperature | 131 F | |
| Min Operating Temperature | 32 F | |
| Software / System Requirements | ||
| OS Required | Red Hat Linux 7.0, Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits) | |
| Software Included | Intel PROSet | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
