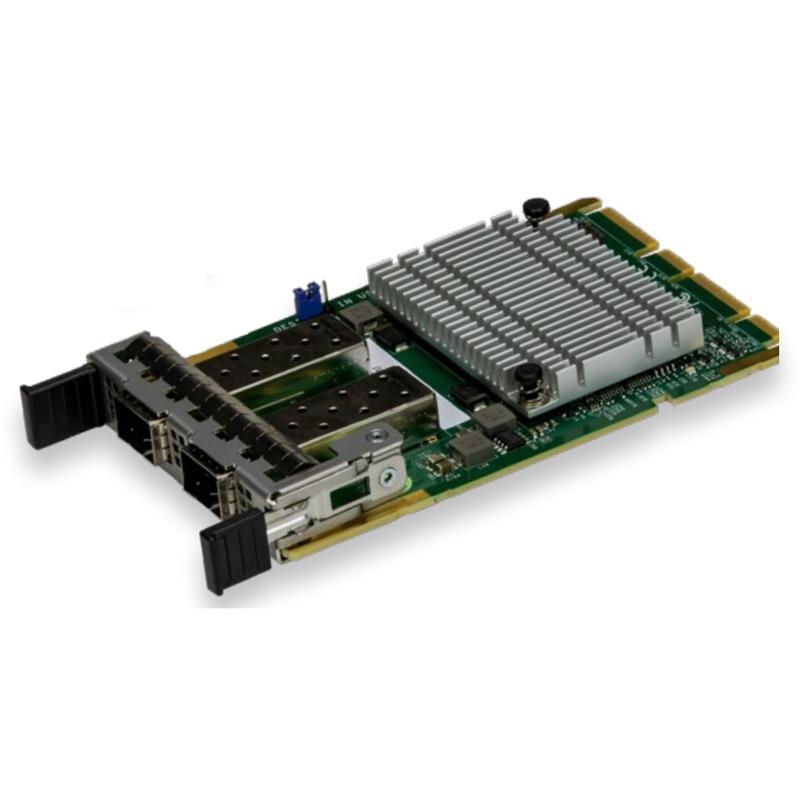

- Supermicro AOC-A25G-b2SG 25Gb Ethernet Controller Dual-port SFP28 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor For GrandTwin Front IO System Only
Supermicro AOC-A25G-b2SG 25Gb Ethernet Controller Dual-port SFP28 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor For GrandTwin Front IO System Only
Broadcom BCM57414 25GbE controller
Advanced I/O Module (AIOM) Form Factor
Ideal for Data Centers and Enterprise environments
Advanced 25Gb Ethernet Controller, Advanced I/O Module (AIOM), Based on the Broadcom BCM57414, Dual SFP28 Connectors, Support for 25GbE and 10GbE Speed, Bracket Included : 0.5U Height Narrow Bracket (For GrandTwin Front IO System Only) - (AOC-A25G-B2SG)
Advanced 25Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM)
Supermicro® Advanced I/O Modules (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-A25G-B2SG is one of the most feature rich and low power consumption 25GbE controllers in the market. Based on the Broadcom® BCM57414 with features such as VXLAN, NVGRE, RoCE, and NIC Partitioning, it provides unparalleled density, performance, and functionality. The Supermicro® AOC-A25G-B2SG is the most versatile 25GbE controller in the market and an excellent choice to enhance network connectivity in Data Centers and Enterprise environments.
Extra Specifications for Supermicro AOC-A25G-b2SG 25Gb Ethernet Controller Dual-port SFP28 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor For GrandTwin Front IO System Only
Main Specifications | ||
Device Type | 25GbE Ethernet Controller | |
Form Factor | Advanced I/O Module (AIOM) | |
Dimensions (WxDxH) | Card PCB dimensions: 76mm x 115mm (W x D) | |
Connectivity | ||
Connectors | Dual SFP28 connectors | |
Networking | ||
Controller Type | Broadcom BCM57414 25GbE controller | |
Networking Features | Jumbo frames (up to 9.6 KB), IEEE 802.3x flow control, IEEE 1588 and Time Sync, IEEE 802.3ad Link Aggregation, Virtual LANs- 802.1q VLAN tagging, Configurable Flow Acceleration, PXE, UEFI, and iSCSI remote boot | |
Stateless Offload Features | TCP, UDP and IP checksum offloads, IPv4 and IPv6 offloads, Large Send Offload, Receive Segment Coalescing, TCP Segmentation Offload, Large Receive Offload, Receive Side Scaling (RSS), Transmit Side Scaling (TSS), Accelerate Received Flow Steering (RFS) | |
NIC Partitioning | 16 Physical Functions, QoS per partition, Partitioning control via sideband communication, Up to 64 MAC/VLAN filter per partition, Per partition statistics support, Stateless offloads configuration per partition, VEB/VEPA support | |
Virtualization Features | NetQueue, VMQueue, and Multiqueue, SR-IOV with up to 128 Virtual Functions (VFs), VXLAN, NVGRE, and Geneve, Edge Virtual Bridging (EVB) | |
RDMA over Converged Ethernet | RoCEv1 and RoCEv2, Data Center Bridging with RoCE | |
Flow Processing | Exact/Wildcard Match Flow Lookup, VLAN insertion/deletion, NAT/NAPT/Mirroring | |
Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb), Enhanced transmission selection (ETS; IEEE 802.1Qau), Quantized congestion Notification (QCN; IEEE 802.1Qau), Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz), 8 traffic classes per port; fully DCB compliant per 802.1Qbb | |
Power | ||
Power Savings | ACPI compliant power management, Ultra-low-power mode, Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010) | |
Power Consumption | Maximum: 7.7W | |
Environmental Parameters | ||
Operating Temperature | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
Storage humidity: 90% non-condensing relative humidity at 35°C | ||
Miscellaneous | ||
Compliant Standards | RoHS Compliant 6/6 | |
Bracket | BKT-0209L - 0.5U height Narrow bracket (for GrandTwin front IO system only) |
Warranty: | 3 years, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
