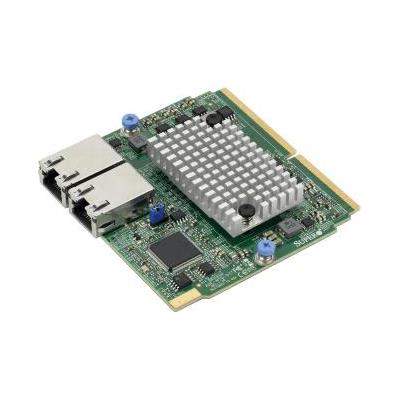

| Add-on Card | Supermicro AOC-MTG-b2T features latest Broadcom NetXtreme BCM57416 Ethernet controller that is designed for todays rapid growing datacenter and cloud-scale applications. In small form factor SIOM, it features VXLAN, NVGRE and Geneve along with Broadcom TruFlow technology that enable users to reduce CPU loads and increase VM densities. In addition, NPAR (NIC Partitioning) technology provide flexible connectivity for different networking requirements. The Supermicro AOC-MTG-b2T is a truly exceptional 10GbE Ethernet Adapter for your continuously growing cloud applications and datacenters. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Specifications |
| Host Interface | PCI-E 3.0 (8GT/s) |
| MCTP over SMBus |
| Function level Rest (FLR) support |
| Message Signal Interrupt (MSI-X) |
| Networking Features | Jumbo Frames (up to 9600-byte) |
| 802.3x flow control |
| Link Aggregation (802.3ad) |
| Virtual LANs 802.1q VLAN tagging |
| Configurable Flow Acceleration |
| IEEE 1588 and Time Sync |
| RDMA over Converged Ethernet (RoCE) |
| Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload |
| Large Send Offload |
| Receive Segment Coalescing |
| TCP segmentation Offload |
| Large Receive Offload |
| Receive Side Scaling (RSS) |
| Transmit Side Scaling (TSS) |
| NIC partitioning (NPAR) | 16 Physical Functions |
| QoS per partition |
| Partitioning control via sideband communication |
| Up to 64MAC/VLAN filters per partition |
| Stateless offload configuration per partition |
| VEB/VEPA support |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue |
| Support for 128 Virtual Functions |
| VXLAN |
| NVGRE |
| Geneve |
| Edge Virtual Bridging (EVB) |
| Flow Processing | Exact/Wildcard Match Flow Lookup |
| VLAN insertion/deletion |
| NAT/NAPT |
| Mirroring |
| Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb) |
| Enhanced transmission selection (ETS; IEEE802.1Qau) |
| Quantized congestion Notification (QCN; IEEE802.1Qau) |
| Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz) |
| 8 traffic classes per port; fully DCB compliant per 802.1Qbb |
| Manageability | Network Controller Sideband Interface (NC-SI) |
| PXE and iSCSI boot |
| Asset Management with Thermal Sensors |
| Power Savings | ACPI compliant power management |
| PCI Express Active State Power Management (ASPM) |
| Ultra low-power mode |
| Pass-through Energy Efficient Ethernet (IEEE802.3az-2010) |
| Power Consumption | Maximum power consumption: 11W |
| Operating Conditions | Operating temperature: 0°C to 55°C (32°F to 131°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Physical Dimensions | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) |
| Super I/O Module (SIOM) Form Factor |
| Supported Platforms |
| Servers | Supermicro® server systems with Super I/O Module slot |
| AOC-MTG-b2T for Storage Systems. AOC-MTG-b2TM for Twin Systems. Please check SIOM Compatibility Matrix .:https://www.supermicro.com/en/support/resources/aoc/siom |
| Downloads |
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-MTG-b2T.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-MTG-b2T.pdf ] |
| Driver | Choose the latest CDR-NIC folder, and then click on the Broadcom folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Compatibility Matrices |
| Servers | Supermicro Servers with SIOM support:https://www.supermicro.com/en/support/resources/aoc/siom |
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm |
